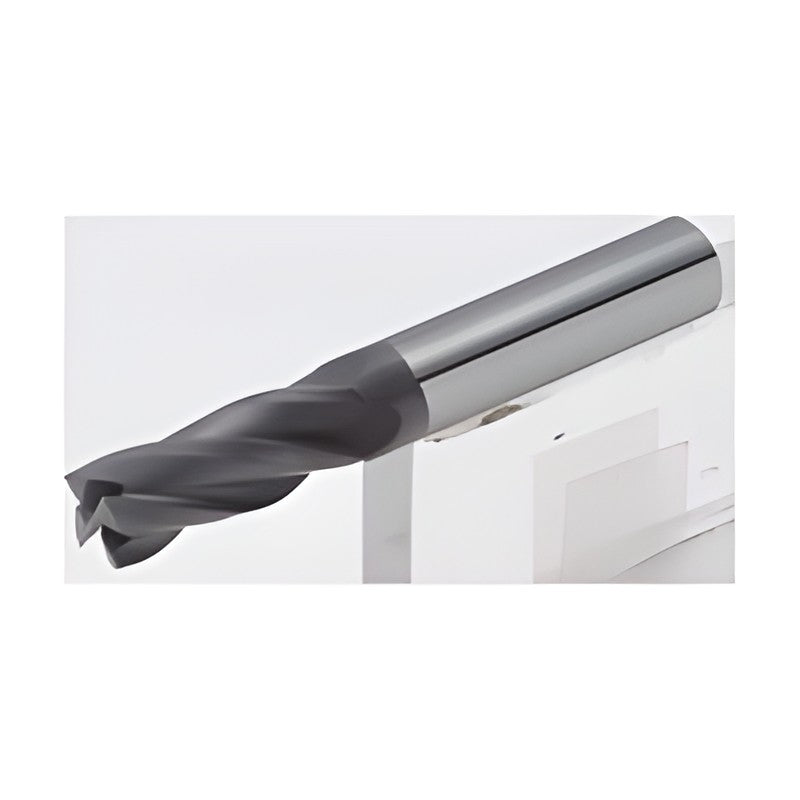

Korloy DFE4000 Diamond Coated Flat End Mill

Korloy DFE4000 Diamond Coated Flat End Mill

Diamond coated solid carbide end mill with tangential cutting-edge geometry for excellent surface finish and wear resistance, e.g. on graphite molds.

Key features

  • Tangential cutting-edge geometry
  • High hardness, high purity diamond coating
  • Prevents stepped cone on the machined surface

Specifications

Grade ND3000 (diamond coated)
Helix angle 30 deg
Shank tolerance h6
DFE4020-045-N060S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 45 | Flutes: 4
DFE4020-060-N100S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 10 | l2 (mm): 12 | Overall length L (mm): 60 | Flutes: 4
DFE4030-050-N100S06 Dia. D (mm): 3 | Shank dia. d (mm): 6 | l1 (mm): 10 | l2 (mm): 12 | Overall length L (mm): 50 | Flutes: 4
DFE4030-060-N150S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 15 | l2 (mm): 18 | Overall length L (mm): 60 | Flutes: 4
DFE4040-050-N150S06 Dia. D (mm): 4 | Shank dia. d (mm): 6 | l1 (mm): 15 | l2 (mm): 18 | Overall length L (mm): 50 | Flutes: 4
DFE4040-080-N200S04 Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 20 | Overall length L (mm): 80 | Flutes: 4
DFE4060-060-N180S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 18 | Overall length L (mm): 60 | Flutes: 4
DFE4060-110-N300S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 30 | Overall length L (mm): 110 | Flutes: 4
DFE4060-150-N300S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 30 | Overall length L (mm): 150 | Flutes: 4
DFE4080-070-N250S08 Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | Overall length L (mm): 70 | Flutes: 4
DFE4080-110-N400S08 Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4080-150-N400S08 Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 40 | Overall length L (mm): 150 | Flutes: 4
DFE4100-080-N250S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 25 | Overall length L (mm): 80 | Flutes: 4
DFE4100-110-N400S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4100-150-N500S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
DFE4120-080-N300S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DFE4120-110-N400S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4120-150-N500S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
End MillsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DFE4000 Diamond Coated Flat End Mill

Brand Korloy·End Mills

Available part numbers (18)

DFE4020-045-N060S04, DFE4020-060-N100S04, DFE4030-050-N100S06, DFE4030-060-N150S04, DFE4040-050-N150S06, DFE4040-080-N200S04, DFE4060-060-N180S06, DFE4060-110-N300S06, DFE4060-150-N300S06, DFE4080-070-N250S08 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DFE4020-045-N060S04Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 45 | Flutes: 4
DFE4020-060-N100S04Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 10 | l2 (mm): 12 | Overall length L (mm): 60 | Flutes: 4
DFE4030-050-N100S06Dia. D (mm): 3 | Shank dia. d (mm): 6 | l1 (mm): 10 | l2 (mm): 12 | Overall length L (mm): 50 | Flutes: 4
DFE4030-060-N150S04Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 15 | l2 (mm): 18 | Overall length L (mm): 60 | Flutes: 4
DFE4040-050-N150S06Dia. D (mm): 4 | Shank dia. d (mm): 6 | l1 (mm): 15 | l2 (mm): 18 | Overall length L (mm): 50 | Flutes: 4
DFE4040-080-N200S04Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 20 | Overall length L (mm): 80 | Flutes: 4
DFE4060-060-N180S06Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 18 | Overall length L (mm): 60 | Flutes: 4
DFE4060-110-N300S06Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 30 | Overall length L (mm): 110 | Flutes: 4
DFE4060-150-N300S06Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 30 | Overall length L (mm): 150 | Flutes: 4
DFE4080-070-N250S08Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | Overall length L (mm): 70 | Flutes: 4
DFE4080-110-N400S08Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4080-150-N400S08Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 40 | Overall length L (mm): 150 | Flutes: 4
DFE4100-080-N250S10Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 25 | Overall length L (mm): 80 | Flutes: 4
DFE4100-110-N400S10Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4100-150-N500S10Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
DFE4120-080-N300S12Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DFE4120-110-N400S12Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 40 | Overall length L (mm): 110 | Flutes: 4
DFE4120-150-N500S12Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
