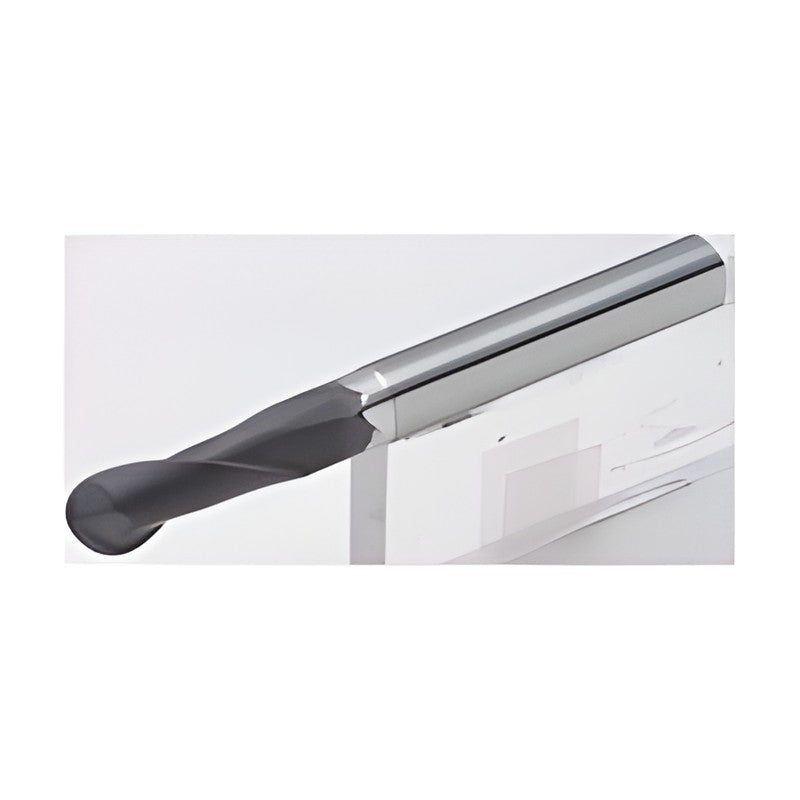

Korloy Diamond Coated 2 Flutes Ball End Mill DBE2000

Korloy Diamond Coated 2 Flutes Ball End Mill DBE2000

Diamond coated 2 flutes ball end mill from the D Endmill line with high purity diamond coating and tangential cutting-edge geometry.

Key features

  • Diamond coating
  • 30° helix angle

Specifications

Helix angle 30°
Substrate grade ND3000
Shank tolerance h6
DBE2003-045-N012S04 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 1.2 | L (mm): 45
DBE2003-045-N020S04 R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 2 | L (mm): 45
DBE2004-045-N015S04 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | L (mm): 45
DBE2004-045-N020S04 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 2 | L (mm): 45
DBE2004-045-N030S04 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 3 | L (mm): 45
DBE2004-045-N040S04 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | L (mm): 45
DBE2004-045-N050S04 R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 5 | L (mm): 45
DBE2005-045-N020S04 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | L (mm): 45
DBE2005-045-N030S04 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 3 | L (mm): 45
DBE2005-045-N040S04 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 4 | L (mm): 45
DBE2005-045-N050S04 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | L (mm): 45
DBE2005-045-N060S04 R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 6 | L (mm): 45
DBE2006-045-N030S04 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 3 | L (mm): 45
DBE2006-045-N040S04 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 4 | L (mm): 45
DBE2006-045-N060S04 R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 6 | L (mm): 45
DBE2008-045-N040S04 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 4 | L (mm): 45
DBE2008-045-N060S04 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 6 | L (mm): 45
DBE2008-045-N080S04 R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 8 | L (mm): 45
DBE2010-060-N040S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 4 | L (mm): 60
DBE2010-060-N060S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 6 | L (mm): 60
DBE2015-060-N080S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 8 | L (mm): 60
DBE2015-080-N120S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 12 | L (mm): 80
DBE2015-080-N180S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 18 | L (mm): 80
DBE2020-060-N060S04 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 6 | L (mm): 60
DBE2020-100-N600S04 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 6 | l2 (mm): 60 | L (mm): 100
DBE2030-100-N150S06 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 15 | L (mm): 100
DBE2030-100-N600S04 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 9 | l2 (mm): 60 | L (mm): 100
DBE2040-150-N160S04 R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | L (mm): 150
DBE2040-150-N500S04 R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 12 | l2 (mm): 50 | L (mm): 150
DBE2060-110-N400S06 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 20 | l2 (mm): 40 | L (mm): 110
DBE2060-150-N500S06 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 20 | l2 (mm): 50 | L (mm): 150
DBE2080-110-N400S08 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | L (mm): 110
DBE2100-110-N500S10 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | L (mm): 110
DBE2100-160-N600S10 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 160
DBE2120-160-N500S12 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | L (mm): 160
Ball End MillsKorloy
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated 2 Flutes Ball End Mill DBE2000

Brand Korloy·Ball End Mills

Available part numbers (35)

DBE2003-045-N012S04, DBE2003-045-N020S04, DBE2004-045-N015S04, DBE2004-045-N020S04, DBE2004-045-N030S04, DBE2004-045-N040S04, DBE2004-045-N050S04, DBE2005-045-N020S04, DBE2005-045-N030S04, DBE2005-045-N040S04 + 25 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBE2003-045-N012S04R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 1.2 | L (mm): 45
DBE2003-045-N020S04R (mm): 0.15 | D (mm): 0.3 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 2 | L (mm): 45
DBE2004-045-N015S04R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | L (mm): 45
DBE2004-045-N020S04R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 2 | L (mm): 45
DBE2004-045-N030S04R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 3 | L (mm): 45
DBE2004-045-N040S04R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 4 | L (mm): 45
DBE2004-045-N050S04R (mm): 0.2 | D (mm): 0.4 | Shank d (mm): 4 | l1 (mm): 1.5 | l2 (mm): 5 | L (mm): 45
DBE2005-045-N020S04R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | L (mm): 45
DBE2005-045-N030S04R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 3 | L (mm): 45
DBE2005-045-N040S04R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 4 | L (mm): 45
DBE2005-045-N050S04R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | L (mm): 45
DBE2005-045-N060S04R (mm): 0.25 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 6 | L (mm): 45
DBE2006-045-N030S04R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 3 | L (mm): 45
DBE2006-045-N040S04R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 4 | L (mm): 45
DBE2006-045-N060S04R (mm): 0.3 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 6 | L (mm): 45
DBE2008-045-N040S04R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 4 | L (mm): 45
DBE2008-045-N060S04R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 6 | L (mm): 45
DBE2008-045-N080S04R (mm): 0.4 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 8 | L (mm): 45
DBE2010-060-N040S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 4 | L (mm): 60
DBE2010-060-N060S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 6 | L (mm): 60
DBE2015-060-N080S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 8 | L (mm): 60
DBE2015-080-N120S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 12 | L (mm): 80
DBE2015-080-N180S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 18 | L (mm): 80
DBE2020-060-N060S04R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 6 | L (mm): 60
DBE2020-100-N600S04R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 6 | l2 (mm): 60 | L (mm): 100
DBE2030-100-N150S06R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 15 | L (mm): 100
DBE2030-100-N600S04R (mm): 1.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 9 | l2 (mm): 60 | L (mm): 100
DBE2040-150-N160S04R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | L (mm): 150
DBE2040-150-N500S04R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 12 | l2 (mm): 50 | L (mm): 150
DBE2060-110-N400S06R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 20 | l2 (mm): 40 | L (mm): 110
DBE2060-150-N500S06R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 20 | l2 (mm): 50 | L (mm): 150
DBE2080-110-N400S08R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | L (mm): 110
DBE2100-110-N500S10R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | L (mm): 110
DBE2100-160-N600S10R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 160
DBE2120-160-N500S12R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | L (mm): 160
