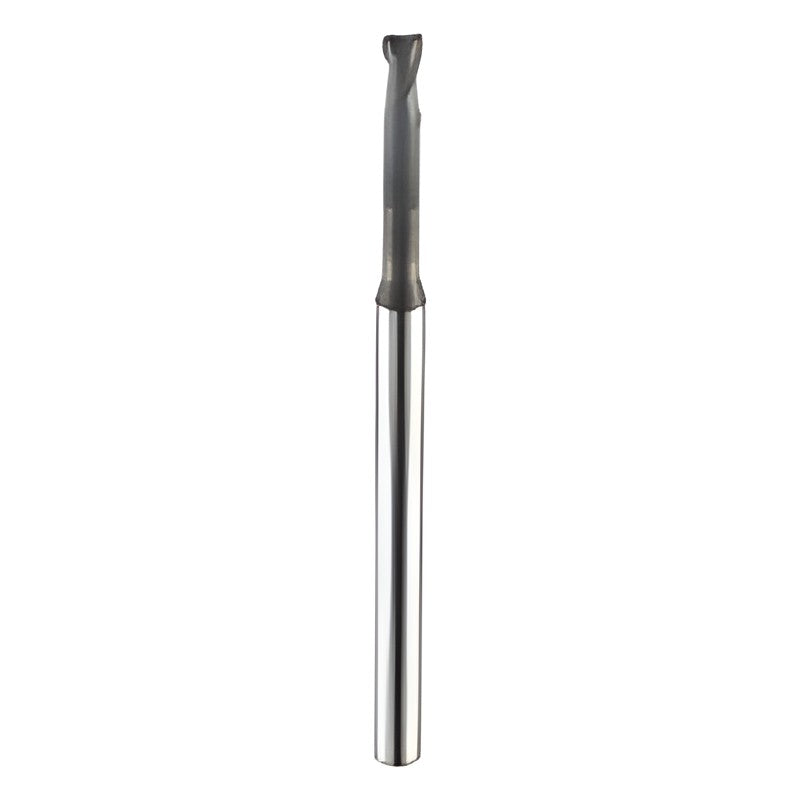

Korloy Diamond Coated 2 Flutes Radius End Mill DRE2000

Korloy Diamond Coated 2 Flutes Radius End Mill DRE2000

Diamond coated 2 flutes radius end mill from the D Endmill line with high purity diamond coating and tangential cutting-edge geometry.

Key features

  • Diamond coating
  • 30° helix angle

Specifications

Helix angle 30°
Substrate grade ND3000
Shank tolerance h6
DRE2005-060-N050S04-R005 R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 5 | L (mm): 60
DRE2005-060-N080S04-R005 R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 8 | L (mm): 60
DRE2005-060-N100S04-R005 R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 10 | L (mm): 60
DRE2006-060-N060S04-R005 R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 6 | L (mm): 60
DRE2006-060-N090S04-R005 R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 9 | L (mm): 60
DRE2006-060-N120S04-R005 R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 12 | L (mm): 60
DRE2008-060-N040S04-R005 R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 4 | L (mm): 60
DRE2008-060-N080S04-R005 R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 8 | L (mm): 60
DRE2008-060-N100S04-R005 R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N050S04-R005 R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | L (mm): 60
DRE2010-060-N100S04-R005 R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N100S04-R02 R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N150S04-R02 R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 15 | L (mm): 60
DRE2010-060-N200S04-R005 R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 20 | L (mm): 60
DRE2010-060-N200S04-R02 R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 20 | L (mm): 60
DRE2015-060-N050S04-R005 R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | L (mm): 60
DRE2015-060-N100S04-R005 R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | L (mm): 60
DRE2015-060-N150S04-R005 R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DRE2015-060-N150S04-R02 R (mm): 0.2 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DRE2015-060-N200S04-R005 R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DRE2015-060-N200S04-R02 R (mm): 0.2 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DRE2020-060-N120S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE2020-060-N120S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE2020-060-N180S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE2020-060-N250S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE2020-060-N250S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE2020-060-N300S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE2020-060-N300S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE2030-080-N100S04-R02 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 80
DRE2030-080-N200S04-R02 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE2030-080-N200S04-R03 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE2030-080-N300S04-R02 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE2030-080-N400S04-R02 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE2030-080-N400S04-R03 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
End MillsKorloy
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated 2 Flutes Radius End Mill DRE2000

Brand Korloy·End Mills

Available part numbers (34)

DRE2005-060-N050S04-R005, DRE2005-060-N080S04-R005, DRE2005-060-N100S04-R005, DRE2006-060-N060S04-R005, DRE2006-060-N090S04-R005, DRE2006-060-N120S04-R005, DRE2008-060-N040S04-R005, DRE2008-060-N080S04-R005, DRE2008-060-N100S04-R005, DRE2010-060-N050S04-R005 + 24 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DRE2005-060-N050S04-R005R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 5 | L (mm): 60
DRE2005-060-N080S04-R005R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 8 | L (mm): 60
DRE2005-060-N100S04-R005R (mm): 0.05 | D (mm): 0.5 | Shank d (mm): 4 | l1 (mm): 1 | l2 (mm): 10 | L (mm): 60
DRE2006-060-N060S04-R005R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 6 | L (mm): 60
DRE2006-060-N090S04-R005R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 9 | L (mm): 60
DRE2006-060-N120S04-R005R (mm): 0.05 | D (mm): 0.6 | Shank d (mm): 4 | l1 (mm): 1.2 | l2 (mm): 12 | L (mm): 60
DRE2008-060-N040S04-R005R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 4 | L (mm): 60
DRE2008-060-N080S04-R005R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 8 | L (mm): 60
DRE2008-060-N100S04-R005R (mm): 0.05 | D (mm): 0.8 | Shank d (mm): 4 | l1 (mm): 1.6 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N050S04-R005R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | L (mm): 60
DRE2010-060-N100S04-R005R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N100S04-R02R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 10 | L (mm): 60
DRE2010-060-N150S04-R02R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 15 | L (mm): 60
DRE2010-060-N200S04-R005R (mm): 0.05 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 20 | L (mm): 60
DRE2010-060-N200S04-R02R (mm): 0.2 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 2 | l2 (mm): 20 | L (mm): 60
DRE2015-060-N050S04-R005R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | L (mm): 60
DRE2015-060-N100S04-R005R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | L (mm): 60
DRE2015-060-N150S04-R005R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DRE2015-060-N150S04-R02R (mm): 0.2 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DRE2015-060-N200S04-R005R (mm): 0.05 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DRE2015-060-N200S04-R02R (mm): 0.2 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DRE2020-060-N120S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE2020-060-N120S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE2020-060-N180S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE2020-060-N250S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE2020-060-N250S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE2020-060-N300S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE2020-060-N300S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE2030-080-N100S04-R02R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 80
DRE2030-080-N200S04-R02R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE2030-080-N200S04-R03R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE2030-080-N300S04-R02R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE2030-080-N400S04-R02R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE2030-080-N400S04-R03R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
