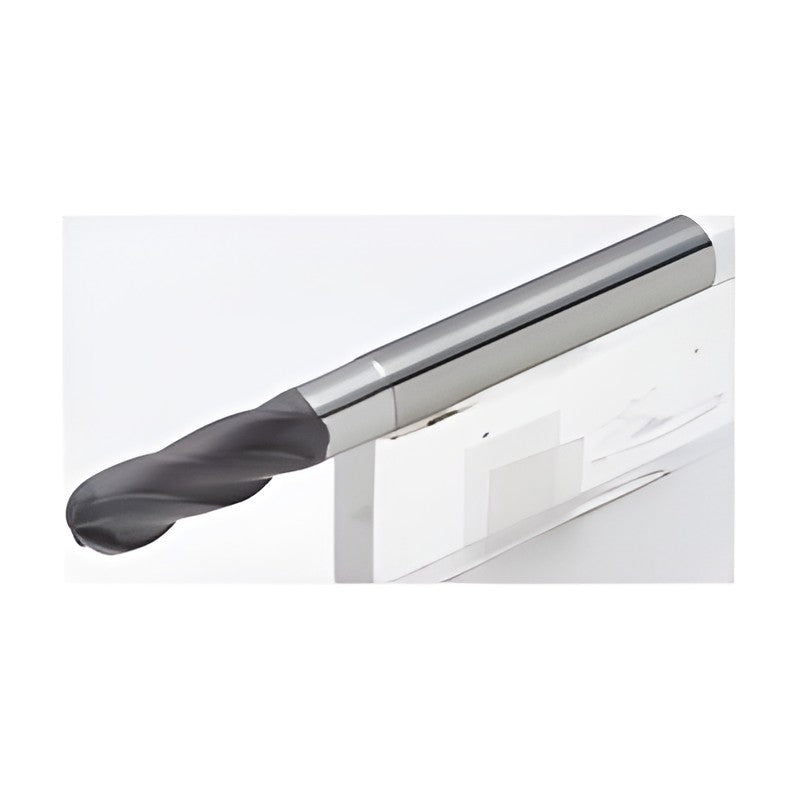

Korloy Diamond Coated 4 Flutes Ball End Mill DBE4000

Korloy Diamond Coated 4 Flutes Ball End Mill DBE4000

Diamond coated 4 flutes ball end mill from the D Endmill line with high purity diamond coating and tangential cutting-edge geometry.

Key features

  • Diamond coating
  • 30° helix angle

Specifications

Helix angle 30°
Substrate grade ND3000
Shank tolerance h6
DBE4010-060-N030S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | L (mm): 60
DBE4010-060-N050S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | L (mm): 60
DBE4010-060-N100S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | L (mm): 60
DBE4010-060-N150S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DBE4010-060-N200S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DBE4010-060-N250S04 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 25 | L (mm): 60
DBE4015-045-N040S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | L (mm): 45
DBE4015-050-N040S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | L (mm): 50
DBE4015-060-N100S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 60
DBE4015-060-N150S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 15 | L (mm): 60
DBE4015-060-N200S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 60
DBE4015-060-N250S04 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 25 | L (mm): 60
DBE4100-160-N400S10 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | L (mm): 160
Ball End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated 4 Flutes Ball End Mill DBE4000

Brand Korloy·Ball End Mills

Available part numbers (13)

DBE4010-060-N030S04, DBE4010-060-N050S04, DBE4010-060-N100S04, DBE4010-060-N150S04, DBE4010-060-N200S04, DBE4010-060-N250S04, DBE4015-045-N040S04, DBE4015-050-N040S04, DBE4015-060-N100S04, DBE4015-060-N150S04 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBE4010-060-N030S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | L (mm): 60
DBE4010-060-N050S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | L (mm): 60
DBE4010-060-N100S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | L (mm): 60
DBE4010-060-N150S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | L (mm): 60
DBE4010-060-N200S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | L (mm): 60
DBE4010-060-N250S04R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | l1 (mm): 3 | l2 (mm): 25 | L (mm): 60
DBE4015-045-N040S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | L (mm): 45
DBE4015-050-N040S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | L (mm): 50
DBE4015-060-N100S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 60
DBE4015-060-N150S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 15 | L (mm): 60
DBE4015-060-N200S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 60
DBE4015-060-N250S04R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 25 | L (mm): 60
DBE4100-160-N400S10R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | L (mm): 160
