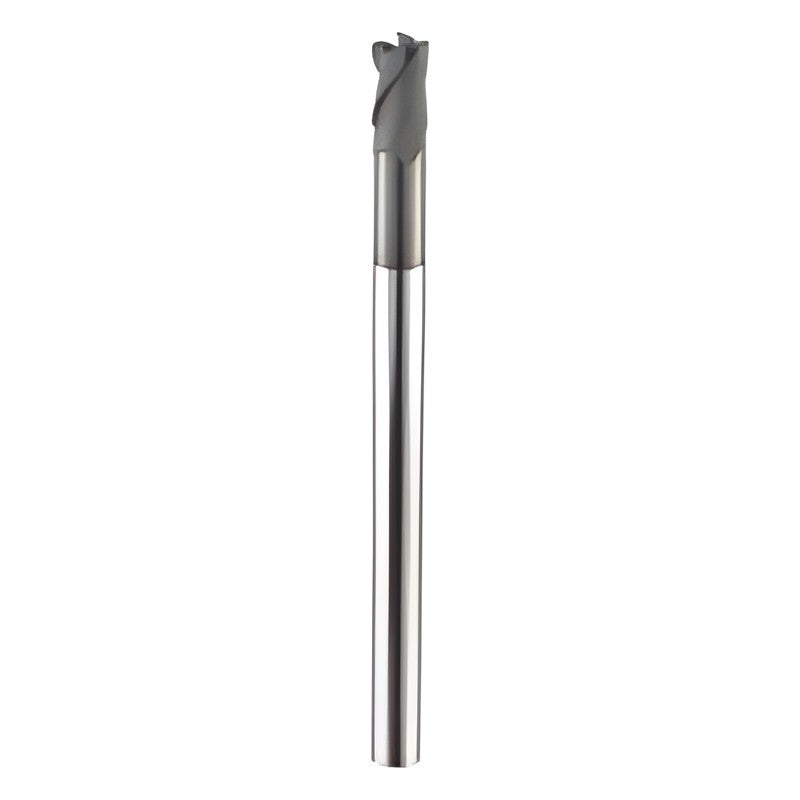

Korloy Diamond Coated 4 Flutes Radius End Mill DRE4000

Korloy Diamond Coated 4 Flutes Radius End Mill DRE4000

Diamond coated 4 flutes radius end mill from the D Endmill line with high purity diamond coating and tangential cutting-edge geometry.

Key features

  • Diamond coating
  • 30° helix angle

Specifications

Helix angle 30°
Substrate grade ND3000
Shank tolerance h6
DRE4020-060-N120S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE4020-060-N180S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE4020-060-N180S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE4020-060-N250S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE4020-060-N250S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE4020-060-N300S04-R02 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE4020-060-N300S04-R03 R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE4030-080-N100S04-R05 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 80
DRE4030-080-N200S04-R03 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE4030-080-N200S04-R05 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE4030-080-N300S04-R03 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE4030-080-N300S04-R05 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE4030-080-N400S04-R03 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE4030-080-N400S04-R05 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE4040-100-N200S04-R03 R (mm): 0.3 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | L (mm): 100
DRE4060-110-N250S06-R03 R (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 25 | L (mm): 110
DRE4060-110-N250S06-R05 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 25 | L (mm): 110
DRE4060-150-N300S06-R05 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 30 | L (mm): 150
DRE4080-110-N300S08-R03 R (mm): 0.3 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 30 | L (mm): 110
DRE4080-110-N300S08-R05 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 30 | L (mm): 110
DRE4080-150-N400S08-R05 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 40 | L (mm): 150
DRE4100-110-N350S10-R05 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 35 | L (mm): 110
DRE4100-160-N450S10-R05 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 45 | L (mm): 160
DRE4120-110-N400S12-R05 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 40 | L (mm): 110
DRE4120-160-N450S12-R05 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 45 | L (mm): 160
End MillsKorloy
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated 4 Flutes Radius End Mill DRE4000

Brand Korloy·End Mills

Available part numbers (25)

DRE4020-060-N120S04-R03, DRE4020-060-N180S04-R02, DRE4020-060-N180S04-R03, DRE4020-060-N250S04-R02, DRE4020-060-N250S04-R03, DRE4020-060-N300S04-R02, DRE4020-060-N300S04-R03, DRE4030-080-N100S04-R05, DRE4030-080-N200S04-R03, DRE4030-080-N200S04-R05 + 15 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DRE4020-060-N120S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 12 | L (mm): 60
DRE4020-060-N180S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE4020-060-N180S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 18 | L (mm): 60
DRE4020-060-N250S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE4020-060-N250S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 25 | L (mm): 60
DRE4020-060-N300S04-R02R (mm): 0.2 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE4020-060-N300S04-R03R (mm): 0.3 | D (mm): 2 | Shank d (mm): 4 | l1 (mm): 3.5 | l2 (mm): 30 | L (mm): 60
DRE4030-080-N100S04-R05R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | L (mm): 80
DRE4030-080-N200S04-R03R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE4030-080-N200S04-R05R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | L (mm): 80
DRE4030-080-N300S04-R03R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE4030-080-N300S04-R05R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | L (mm): 80
DRE4030-080-N400S04-R03R (mm): 0.3 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE4030-080-N400S04-R05R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | L (mm): 80
DRE4040-100-N200S04-R03R (mm): 0.3 | D (mm): 4 | Shank d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | L (mm): 100
DRE4060-110-N250S06-R03R (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 25 | L (mm): 110
DRE4060-110-N250S06-R05R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 25 | L (mm): 110
DRE4060-150-N300S06-R05R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 30 | L (mm): 150
DRE4080-110-N300S08-R03R (mm): 0.3 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 30 | L (mm): 110
DRE4080-110-N300S08-R05R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 30 | L (mm): 110
DRE4080-150-N400S08-R05R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 40 | L (mm): 150
DRE4100-110-N350S10-R05R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 35 | L (mm): 110
DRE4100-160-N450S10-R05R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 45 | L (mm): 160
DRE4120-110-N400S12-R05R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 40 | L (mm): 110
DRE4120-160-N450S12-R05R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 45 | L (mm): 160
