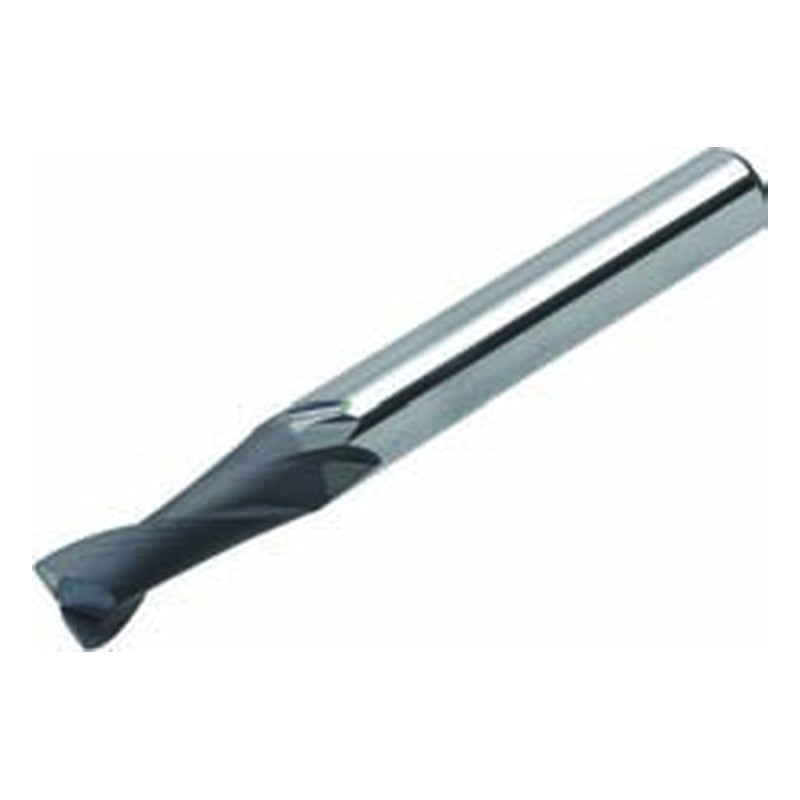

Korloy Diamond Coated Corner Radius End Mill DRE2000

Korloy Diamond Coated Corner Radius End Mill DRE2000

CVD diamond coated 2-flute corner radius end mill for graphite and non-ferrous metal machining.

Key features

  • CVD nano-sized diamond coating (ND3000)
  • For graphite and non-ferrous metal machining
  • 10~20 times longer tool life than uncoated end mills
  • 2 flutes, 30 degree helix

Specifications

Coating Diamond (ND3000)
Flutes 2
Helix angle 30°
DRE2040-045-R05 Corner r (mm): 0.5 | D (mm): 4 | Shank dia. d (mm): 6 | l (mm): 5 | L (mm): 45
DRE2060-050-R05 Corner r (mm): 0.5 | D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 7 | L (mm): 50
DRE2080-060-R10 Corner r (mm): 1 | D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 9 | L (mm): 60
End MillsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Diamond Coated Corner Radius End Mill DRE2000

Brand Korloy·End Mills

Available part numbers (3)

DRE2040-045-R05, DRE2060-050-R05, DRE2080-060-R10

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DRE2040-045-R05Corner r (mm): 0.5 | D (mm): 4 | Shank dia. d (mm): 6 | l (mm): 5 | L (mm): 45
DRE2060-050-R05Corner r (mm): 0.5 | D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 7 | L (mm): 50
DRE2080-060-R10Corner r (mm): 1 | D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 9 | L (mm): 60
