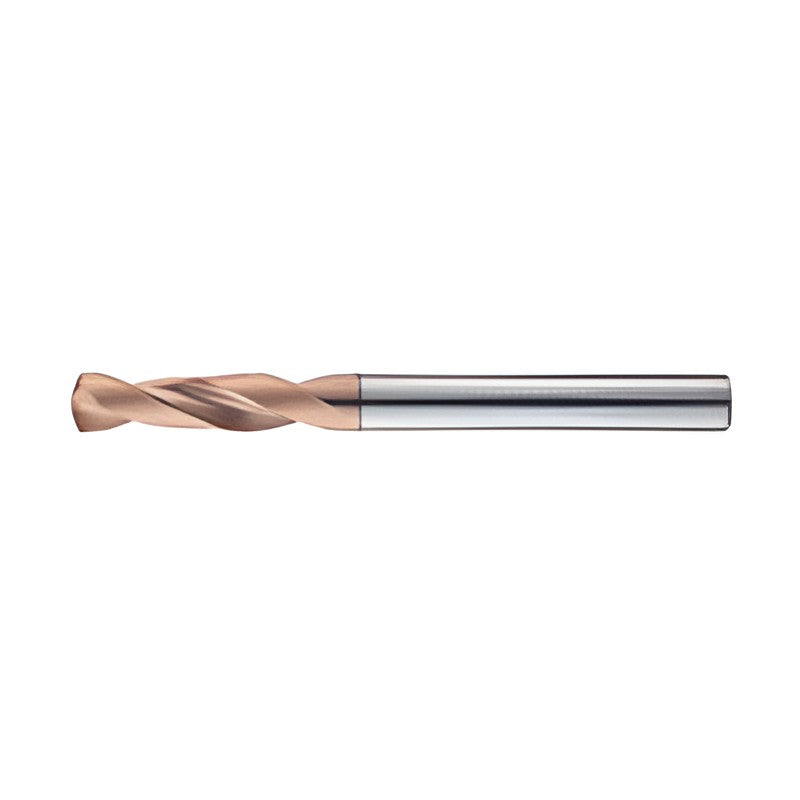

Korloy DIN 6537K Double Margin Drill 3xD HP503

Korloy DIN 6537K Double Margin Drill 3xD HP503

DIN 6537K double margin solid carbide drill, 3xD, from the P-Star drill line, DIN standardized for high speed machining up to HRC50.

Key features

  • Ultra fine grain carbide
  • 30° helix angle

Specifications

Helix angle 30°
Shank tolerance h6
Point angle 140°
HP503030 D (mm): 3 | D (inch): 0.1181 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503031 D (mm): 3.1 | D (inch): 0.1220 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503032 D (mm): 3.2 | D (inch): 0.1260 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503033 D (mm): 3.3 | D (inch): 0.1299 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503034 D (mm): 3.4 | D (inch): 0.1339 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503035 D (mm): 3.5 | D (inch): 0.1378 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503036 D (mm): 3.6 | D (inch): 0.1417 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503037 D (mm): 3.7 | D (inch): 0.1457 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 62
HP503038 D (mm): 3.8 | D (inch): 0.1496 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503039 D (mm): 3.9 | D (inch): 0.1535 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503040 D (mm): 4 | D (inch): 0.1575 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503041 D (mm): 4.1 | D (inch): 0.1614 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503042 D (mm): 4.2 | D (inch): 0.1654 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503043 D (mm): 4.3 | D (inch): 0.1693 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503044 D (mm): 4.4 | D (inch): 0.1732 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503045 D (mm): 4.5 | D (inch): 0.1772 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503046 D (mm): 4.6 | D (inch): 0.1811 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503047 D (mm): 4.7 | D (inch): 0.1850 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 66
HP503048 D (mm): 4.8 | D (inch): 0.1890 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503049 D (mm): 4.9 | D (inch): 0.1929 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503050 D (mm): 5 | D (inch): 0.1969 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503051 D (mm): 5.1 | D (inch): 0.2008 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503052 D (mm): 5.2 | D (inch): 0.2047 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503053 D (mm): 5.3 | D (inch): 0.2087 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503054 D (mm): 5.4 | D (inch): 0.2126 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503055 D (mm): 5.5 | D (inch): 0.2165 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503056 D (mm): 5.6 | D (inch): 0.2205 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503057 D (mm): 5.7 | D (inch): 0.2244 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503058 D (mm): 5.8 | D (inch): 0.2283 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503059 D (mm): 5.9 | D (inch): 0.2322 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503060 D (mm): 6 | D (inch): 0.2362 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
HP503061 D (mm): 6.1 | D (inch): 0.2402 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503062 D (mm): 6.2 | D (inch): 0.2441 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503063 D (mm): 6.3 | D (inch): 0.2480 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503064 D (mm): 6.4 | D (inch): 0.2520 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503065 D (mm): 6.5 | D (inch): 0.2559 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503066 D (mm): 6.6 | D (inch): 0.2598 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503067 D (mm): 6.7 | D (inch): 0.2638 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503068 D (mm): 6.8 | D (inch): 0.2677 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503069 D (mm): 6.9 | D (inch): 0.2717 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503070 D (mm): 7 | D (inch): 0.2756 | Shank d (mm): 8 | Flute length (mm): 34 | L (mm): 79
HP503071 D (mm): 7.1 | D (inch): 0.2795 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503072 D (mm): 7.2 | D (inch): 0.2835 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503073 D (mm): 7.3 | D (inch): 0.2874 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503074 D (mm): 7.4 | D (inch): 0.2913 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503075 D (mm): 7.5 | D (inch): 0.2953 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503076 D (mm): 7.6 | D (inch): 0.2992 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503077 D (mm): 7.7 | D (inch): 0.3031 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503078 D (mm): 7.8 | D (inch): 0.3071 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503079 D (mm): 7.9 | D (inch): 0.3110 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503080 D (mm): 8 | D (inch): 0.3150 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 79
HP503081 D (mm): 8.1 | D (inch): 0.3189 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503082 D (mm): 8.2 | D (inch): 0.3228 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503083 D (mm): 8.3 | D (inch): 0.3268 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503084 D (mm): 8.4 | D (inch): 0.3307 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503085 D (mm): 8.5 | D (inch): 0.3346 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503086 D (mm): 8.6 | D (inch): 0.3386 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503087 D (mm): 8.7 | D (inch): 0.3425 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503088 D (mm): 8.8 | D (inch): 0.3465 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503089 D (mm): 8.9 | D (inch): 0.3504 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503090 D (mm): 9 | D (inch): 0.3543 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503091 D (mm): 9.1 | D (inch): 0.3583 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503092 D (mm): 9.2 | D (inch): 0.3622 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503093 D (mm): 9.3 | D (inch): 0.3661 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503094 D (mm): 9.4 | D (inch): 0.3701 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503095 D (mm): 9.5 | D (inch): 0.3740 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503096 D (mm): 9.6 | D (inch): 0.3780 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503097 D (mm): 9.7 | D (inch): 0.3819 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503098 D (mm): 9.8 | D (inch): 0.3858 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503099 D (mm): 9.9 | D (inch): 0.3898 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503100 D (mm): 10 | D (inch): 0.3937 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
HP503101 D (mm): 10.1 | D (inch): 0.3976 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503102 D (mm): 10.2 | D (inch): 0.4016 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503103 D (mm): 10.3 | D (inch): 0.4055 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503104 D (mm): 10.4 | D (inch): 0.4094 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503105 D (mm): 10.5 | D (inch): 0.4134 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503106 D (mm): 10.6 | D (inch): 0.4173 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503107 D (mm): 10.7 | D (inch): 0.4213 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503108 D (mm): 10.8 | D (inch): 0.4252 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503109 D (mm): 10.9 | D (inch): 0.4291 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503110 D (mm): 11 | D (inch): 0.4331 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503111 D (mm): 11.1 | D (inch): 0.4370 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503112 D (mm): 11.2 | D (inch): 0.4409 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503113 D (mm): 11.3 | D (inch): 0.4449 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503114 D (mm): 11.4 | D (inch): 0.4488 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503115 D (mm): 11.5 | D (inch): 0.4528 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503116 D (mm): 11.6 | D (inch): 0.4567 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503117 D (mm): 11.7 | D (inch): 0.4606 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503118 D (mm): 11.8 | D (inch): 0.4646 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503119 D (mm): 11.9 | D (inch): 0.4685 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503120 D (mm): 12 | D (inch): 0.4724 | Shank d (mm): 12 | Flute length (mm): 55 | L (mm): 102
HP503121 D (mm): 12.1 | D (inch): 0.4764 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503122 D (mm): 12.2 | D (inch): 0.4803 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503123 D (mm): 12.3 | D (inch): 0.4843 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503124 D (mm): 12.4 | D (inch): 0.4882 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503125 D (mm): 12.5 | D (inch): 0.4921 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503126 D (mm): 12.6 | D (inch): 0.4961 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503127 D (mm): 12.7 | D (inch): 0.5000 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503128 D (mm): 12.8 | D (inch): 0.5039 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503129 D (mm): 12.9 | D (inch): 0.5079 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503130 D (mm): 13 | D (inch): 0.5118 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503131 D (mm): 13.1 | D (inch): 0.5157 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503132 D (mm): 13.2 | D (inch): 0.5157 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503133 D (mm): 13.3 | D (inch): 0.5236 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503135 D (mm): 13.5 | D (inch): 0.5315 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503137 D (mm): 13.7 | D (inch): 0.5394 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503140 D (mm): 14 | D (inch): 0.5512 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 107
HP503142 D (mm): 14.2 | D (inch): 0.5591 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503143 D (mm): 14.3 | D (inch): 0.5630 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503145 D (mm): 14.5 | D (inch): 0.5709 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503146 D (mm): 14.6 | D (inch): 0.5787 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503148 D (mm): 14.8 | D (inch): 0.5827 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503150 D (mm): 15 | D (inch): 0.5906 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503155 D (mm): 15.5 | D (inch): 0.6102 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503157 D (mm): 15.7 | D (inch): 0.6181 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
HP503160 D (mm): 16 | D (inch): 0.6299 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 115
