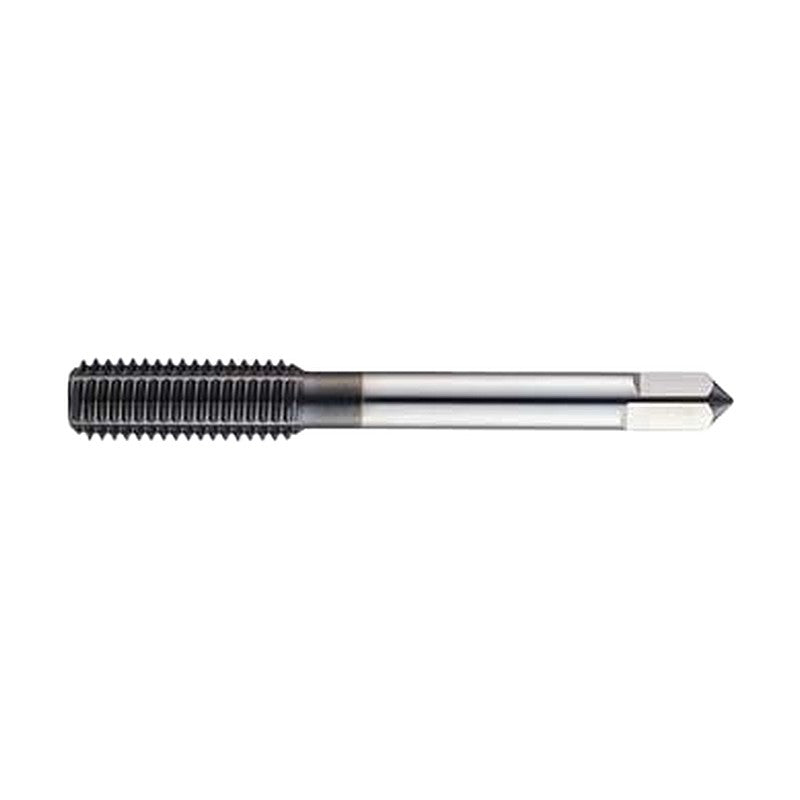

Korloy DIN Roll Tap VMCM HSSE TiCN

Korloy DIN Roll Tap VMCM HSSE TiCN

DIN roll tap in HSSE (TiCN coated) for metric threads M3 to M12.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 2P, 4P
  • Oil groove versions S (1 groove) and M (4 grooves)

Specifications

Material HSSE
Surface treatment TiCN
Standard DIN
Workpiece (excellent) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VMCM0305020S Thread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMCM0305020M Thread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMCM0305040M Thread size: M3x0.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMCM0407020S Thread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMCM0407020M Thread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMCM0407040M Thread size: M4x0.7 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMCM0508020S Thread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMCM0508020M Thread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMCM0508040M Thread size: M5x0.8 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMCM0610020S Thread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMCM0610020M Thread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMCM0610040M Thread size: M6x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMCM0810020S Thread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VMCM0810020M Thread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMCM0810040M Thread size: M8x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMCM0812520S Thread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VMCM0812520M Thread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMCM0812540M Thread size: M8x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMCM1010020S Thread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: S (1 groove)
VMCM1010020M Thread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1010040M Thread size: M10x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1012520S Thread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: S (1 groove)
VMCM1012520M Thread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1012540M Thread size: M10x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1015020S Thread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: S (1 groove)
VMCM1015020M Thread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1015040M Thread size: M10x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMCM1210020S Thread size: M12x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMCM1210040M Thread size: M12x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1212520S Thread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMCM1212520M Thread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1212540M Thread size: M12x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1215020S Thread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMCM1215020M Thread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1215040M Thread size: M12x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1217520S Thread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMCM1217520M Thread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMCM1217540M Thread size: M12x1.75 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
TapsKorloy
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DIN Roll Tap VMCM HSSE TiCN

Brand Korloy·Taps

Available part numbers (38)

VMCM0305020S, VMCM0305020M, VMCM0305040M, VMCM0407020S, VMCM0407020M, VMCM0407040M, VMCM0508020S, VMCM0508020M, VMCM0508040M, VMCM0610020S + 28 more — see full table ↓
