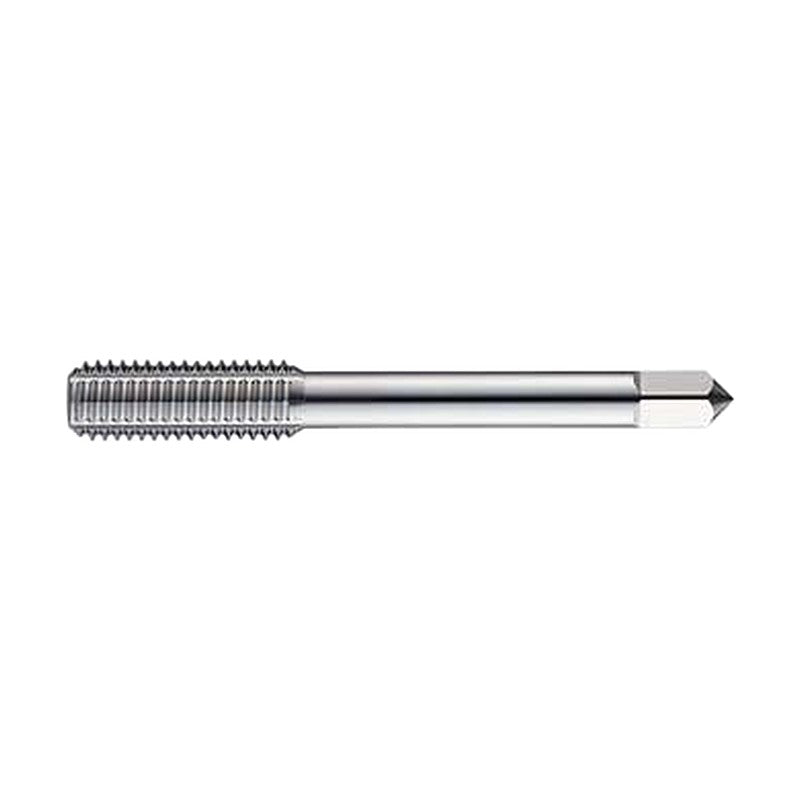

Korloy DIN Roll Tap VMOM HSSE Uncoated

Korloy DIN Roll Tap VMOM HSSE Uncoated

DIN roll tap in HSSE (uncoated) for metric threads M3 to M12.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 2P, 4P
  • Oil groove versions S (1 groove) and M (4 grooves)

Specifications

Material HSSE
Surface treatment Uncoated
Standard DIN
Workpiece (excellent) Copper, Brass, Casting brass, Aluminium rolled material, Aluminium alloy castings, Zinc alloy castings
VMOM0305020S Thread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMOM0305020M Thread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0305040M Thread size: M3x0.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0407020S Thread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMOM0407020M Thread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0407040M Thread size: M4x0.7 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0508020S Thread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0508020M Thread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0508040M Thread size: M5x0.8 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0610020S Thread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0610020M Thread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0610040M Thread size: M6x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0810020S Thread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0810020M Thread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0810040M Thread size: M8x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0812520S Thread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VMOM0812520M Thread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMOM0812540M Thread size: M8x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMOM1010020S Thread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM1010020M Thread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1010040M Thread size: M10x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1012520S Thread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM1012520M Thread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1012540M Thread size: M10x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1015020S Thread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: S (1 groove)
VMOM1015020M Thread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMOM1015040M Thread size: M10x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMOM1210020S Thread size: M12x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1210040M Thread size: M12x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1212520S Thread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1212520M Thread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1212540M Thread size: M12x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1215020S Thread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1215020M Thread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1215040M Thread size: M12x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1217520S Thread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1217520M Thread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1217540M Thread size: M12x1.75 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
TapsKorloy
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DIN Roll Tap VMOM HSSE Uncoated

Brand Korloy·Taps

Available part numbers (38)

VMOM0305020S, VMOM0305020M, VMOM0305040M, VMOM0407020S, VMOM0407020M, VMOM0407040M, VMOM0508020S, VMOM0508020M, VMOM0508040M, VMOM0610020S + 28 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VMOM0305020SThread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMOM0305020MThread size: M3x0.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0305040MThread size: M3x0.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0407020SThread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: S (1 groove)
VMOM0407020MThread size: M4x0.7 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0407040MThread size: M4x0.7 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | Oil groove: M (4 grooves)
VMOM0508020SThread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0508020MThread size: M5x0.8 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0508040MThread size: M5x0.8 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0610020SThread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0610020MThread size: M6x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0610040MThread size: M6x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0810020SThread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM0810020MThread size: M8x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0810040MThread size: M8x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM0812520SThread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: S (1 groove)
VMOM0812520MThread size: M8x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMOM0812540MThread size: M8x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | Oil groove: M (4 grooves)
VMOM1010020SThread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM1010020MThread size: M10x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1010040MThread size: M10x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1012520SThread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: S (1 groove)
VMOM1012520MThread size: M10x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1012540MThread size: M10x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | Oil groove: M (4 grooves)
VMOM1015020SThread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: S (1 groove)
VMOM1015020MThread size: M10x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMOM1015040MThread size: M10x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | Oil groove: M (4 grooves)
VMOM1210020SThread size: M12x1.0 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1210040MThread size: M12x1.0 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1212520SThread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1212520MThread size: M12x1.25 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1212540MThread size: M12x1.25 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1215020SThread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1215020MThread size: M12x1.5 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1215040MThread size: M12x1.5 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1217520SThread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: S (1 groove)
VMOM1217520MThread size: M12x1.75 | Chamfer length: 2P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
VMOM1217540MThread size: M12x1.75 | Chamfer length: 4P | Limits: 6HX | Overall length L (mm): 100 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | Oil groove: M (4 grooves)
