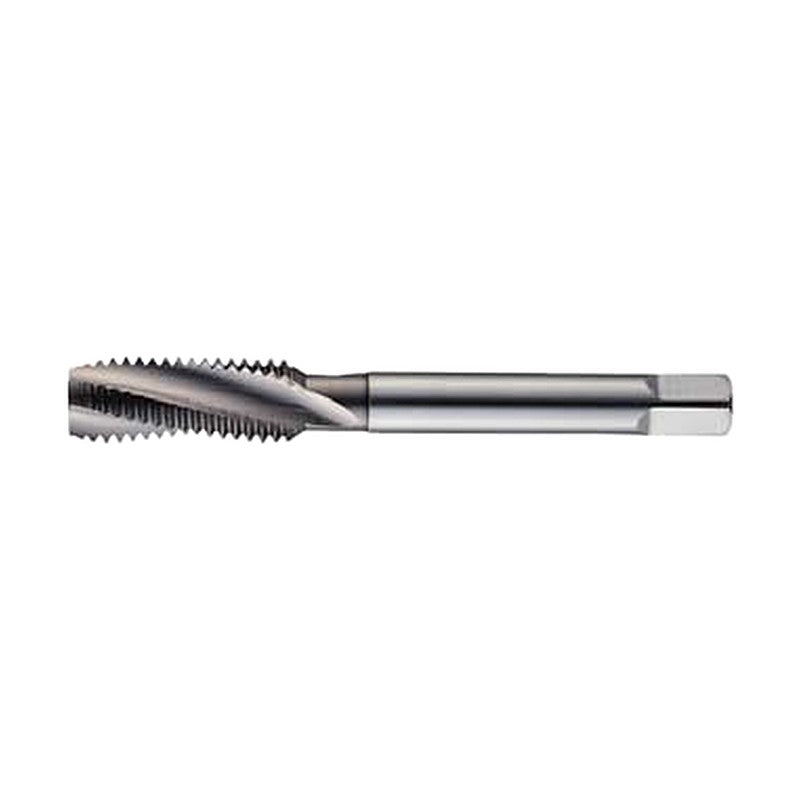

Korloy DIN Spiral Flute Tap VQCM HSSE TiCN

Korloy DIN Spiral Flute Tap VQCM HSSE TiCN

DIN spiral flute tap in HSSE (TiCN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • 35 deg helix
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 2.5P

Specifications

Material HSSE
Surface treatment TiCN
Standard DIN
Workpiece (excellent) Medium carbon steels, Alloy steels
Workpiece (good) High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium rolled material, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VQCM0305025 Thread size: M3x0.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VQCM0407025 Thread size: M4x0.7 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VQCM0508025 Thread size: M5x0.8 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VQCM0610025 Thread size: M6x1.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VQCM0810025 Thread size: M8x1.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VQCM0812525 Thread size: M8x1.25 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VQCM1010025 Thread size: M10x1.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VQCM1012525 Thread size: M10x1.25 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VQCM1015025 Thread size: M10x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VQCM1210025 Thread size: M12x1.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VQCM1212525 Thread size: M12x1.25 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VQCM1215025 Thread size: M12x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VQCM1217525 Thread size: M12x1.75 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VQCM1415025 Thread size: M14x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VQCM1420025 Thread size: M14x2.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VQCM1615025 Thread size: M16x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VQCM1620025 Thread size: M16x2.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VQCM1815025 Thread size: M18x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 374
VQCM1825025 Thread size: M18x2.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 376
VQCM2015025 Thread size: M20x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 374
VQCM2025025 Thread size: M20x2.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 376
VQCM2215025 Thread size: M22x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VQCM2225025 Thread size: M22x2.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
VQCM2415025 Thread size: M24x1.5 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VQCM2420025 Thread size: M24x2.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VQCM2430025 Thread size: M24x3.0 | Chamfer length: 2.5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
