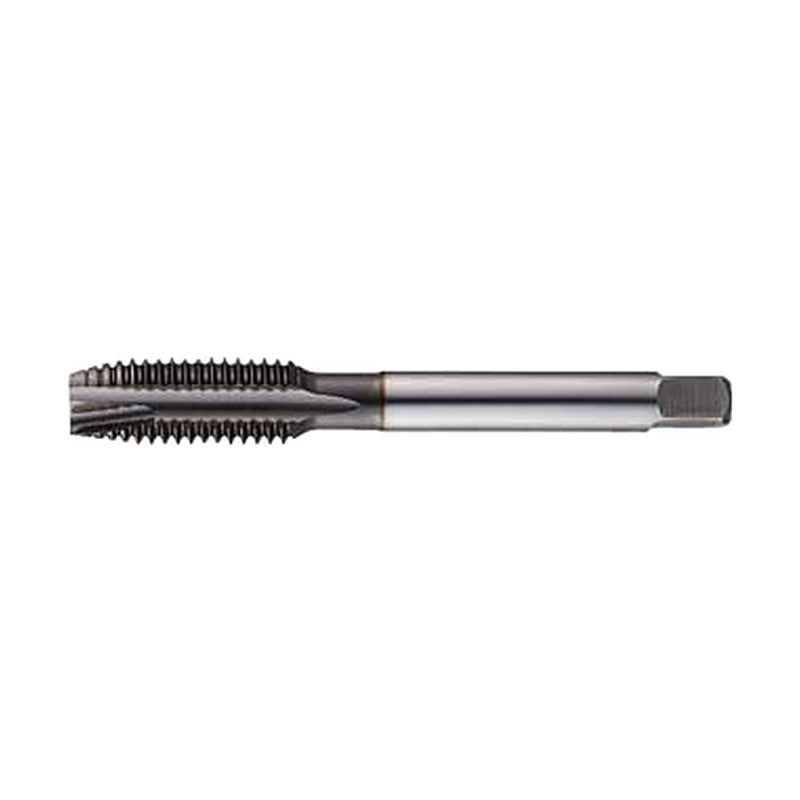

Korloy DIN Spiral Point Tap VDCM HSSE TiCN

Korloy DIN Spiral Point Tap VDCM HSSE TiCN

DIN spiral point tap in HSSE (TiCN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment TiCN
Standard DIN
Workpiece (excellent) Alloy steels, Aluminium rolled material
Workpiece (good) Medium carbon steels, High carbon steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VDCM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDCM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDCM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDCM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDCM0810050 Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDCM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VDCM1010050 Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDCM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDCM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VDCM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDCM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDCM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDCM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VDCM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDCM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDCM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDCM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDCM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 374
VDCM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 376
VDCM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 374
VDCM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 376
VDCM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDCM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
VDCM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDCM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDCM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
