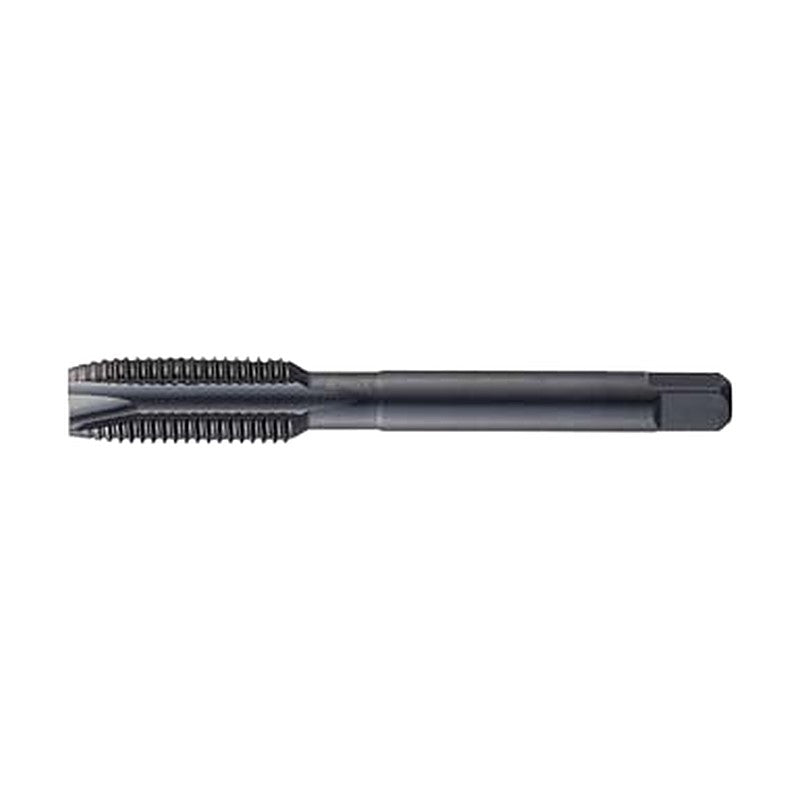

Korloy DIN Spiral Point Tap VDHM HSSE HOMO

Korloy DIN Spiral Point Tap VDHM HSSE HOMO

DIN spiral point tap in HSSE (HOMO treated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: HOMO (steam oxide)
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment HOMO (steam oxide)
Standard DIN
Workpiece (excellent) Alloy steels, Aluminium rolled material
Workpiece (good) Medium carbon steels, High carbon steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VDHM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDHM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDHM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDHM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDHM0810050 Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDHM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VDHM1010050 Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDHM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDHM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VDHM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDHM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDHM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDHM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VDHM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDHM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDHM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDHM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDHM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 374
VDHM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 376
VDHM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 374
VDHM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 376
VDHM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDHM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
VDHM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDHM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDHM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
