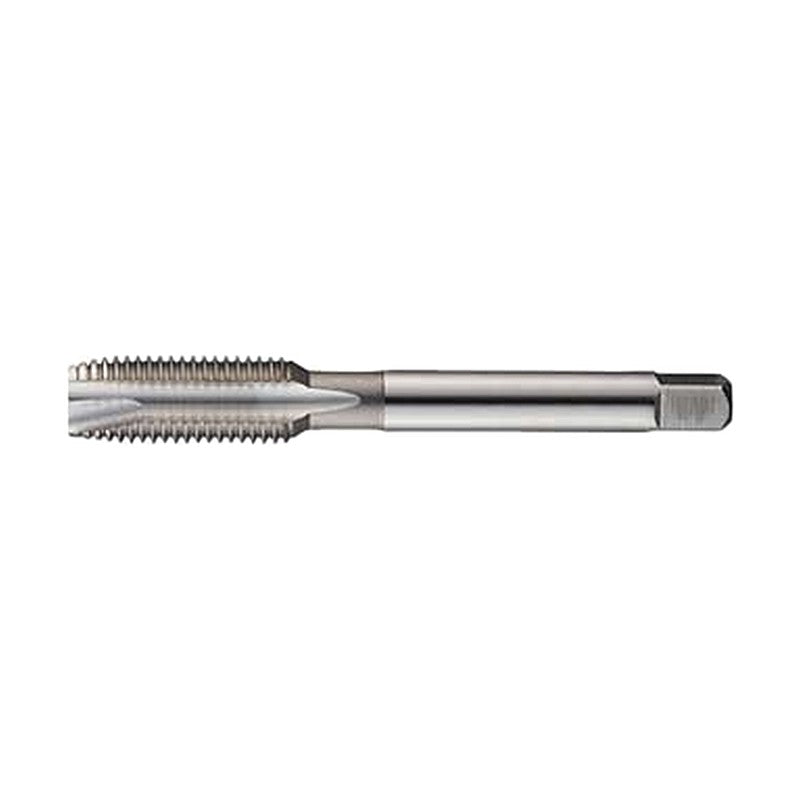

Korloy DIN Spiral Point Tap VDOM HSSE Uncoated

Korloy DIN Spiral Point Tap VDOM HSSE Uncoated

DIN spiral point tap in HSSE (uncoated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: Uncoated
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment Uncoated
Standard DIN
Workpiece (excellent) Alloy steels, Aluminium rolled material
Workpiece (good) Medium carbon steels, High carbon steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VDOM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDOM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDOM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDOM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDOM0810050 Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDOM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VDOM1010050 Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDOM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDOM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VDOM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDOM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDOM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDOM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VDOM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDOM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDOM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDOM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDOM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 374
VDOM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 376
VDOM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 374
VDOM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 376
VDOM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDOM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
VDOM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDOM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDOM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
