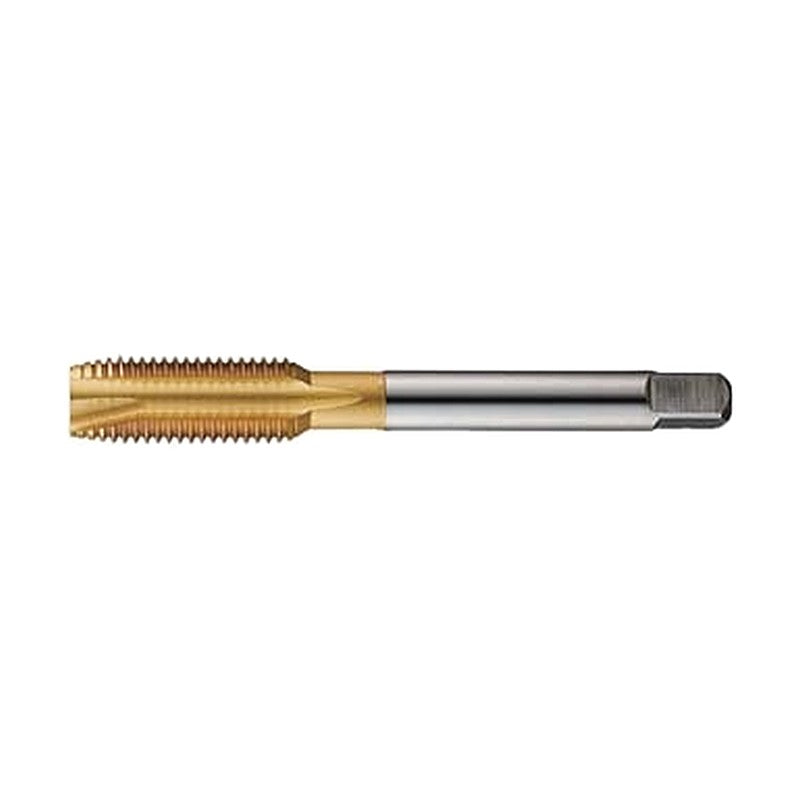

Korloy DIN Spiral Point Tap VDTM HSSE TiN

Korloy DIN Spiral Point Tap VDTM HSSE TiN

DIN spiral point tap in HSSE (TiN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiN
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 5P

Specifications

Material HSSE
Surface treatment TiN
Standard DIN
Workpiece (excellent) Alloy steels, Aluminium rolled material
Workpiece (good) Medium carbon steels, High carbon steels, Cast iron, High-strength steels, Copper, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings, Thermoplastics
VDTM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDTM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDTM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDTM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDTM0810050 Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VDTM1010050 Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VDTM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VDTM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDTM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDTM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDTM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDTM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 374
VDTM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 376
VDTM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 374
VDTM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 376
VDTM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
VDTM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
TapsKorloy
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DIN Spiral Point Tap VDTM HSSE TiN

Brand Korloy·Taps

Available part numbers (26)

VDTM0305050, VDTM0407050, VDTM0508050, VDTM0610050, VDTM0810050, VDTM0812550, VDTM1010050, VDTM1012550, VDTM1015050, VDTM1210050 + 16 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VDTM0305050Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDTM0407050Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VDTM0508050Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDTM0610050Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VDTM0810050Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM0812550Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 3 | DIN type: 371
VDTM1010050Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM1012550Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 374
VDTM1015050Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 3 | DIN type: 371
VDTM1210050Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1212550Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1215050Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 374
VDTM1217550Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 3 | DIN type: 376
VDTM1415050Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDTM1420050Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDTM1615050Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 374
VDTM1620050Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 3 | DIN type: 376
VDTM1815050Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 374
VDTM1825050Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 3 | DIN type: 376
VDTM2015050Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 374
VDTM2025050Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 3 | DIN type: 376
VDTM2215050Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2225050Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
VDTM2415050Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2420050Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 374
VDTM2430050Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 3 | DIN type: 376
