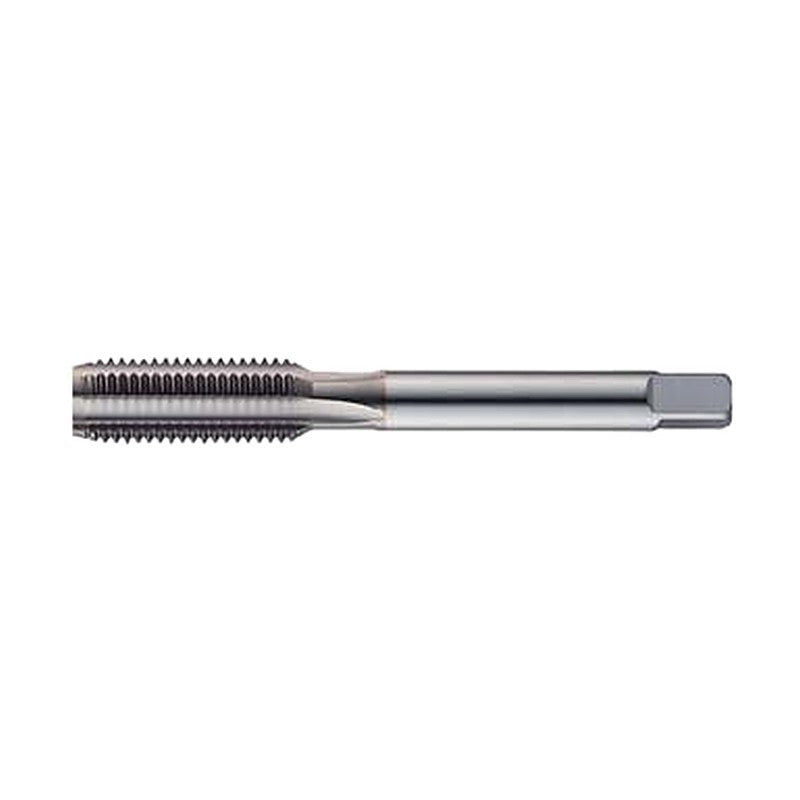

Korloy DIN Straight Flute Tap VGCM HSSE TiCN

Korloy DIN Straight Flute Tap VGCM HSSE TiCN

DIN straight flute tap in HSSE (TiCN coated) for metric threads M3 to M24.

Key features

  • HSSE (cobalt high-speed steel)
  • Surface treatment: TiCN
  • DIN 371 / 376 / 374 dimensions
  • Chamfer length 1.5P, 5P

Specifications

Material HSSE
Surface treatment TiCN
Standard DIN
Workpiece (good) Low carbon steels, Medium carbon steels, High carbon steels, Alloy steels, Hardened steels 25-45 HRC, Brass, Casting brass, Bronze, Aluminium alloy castings, Magnesium alloy castings, Zinc alloy castings
VGCM0305015 Thread size: M3x0.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VGCM0305050 Thread size: M3x0.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 56 | Thread length ℓ (mm): 11 | Shank dia. d (mm): 3.5 | Square K (mm): 2.7 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VGCM0407015 Thread size: M4x0.7 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VGCM0407050 Thread size: M4x0.7 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 63 | Thread length ℓ (mm): 13 | Shank dia. d (mm): 4.5 | Square K (mm): 3.4 | Square length Kl (mm): 6 | No. of flutes: 3 | DIN type: 371
VGCM0508015 Thread size: M5x0.8 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VGCM0508050 Thread size: M5x0.8 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 70 | Thread length ℓ (mm): 15 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VGCM0610015 Thread size: M6x1.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VGCM0610050 Thread size: M6x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 80 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 3 | DIN type: 371
VGCM0810015 Thread size: M8x1.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM0810050 Thread size: M8x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 17 | Shank dia. d (mm): 6 | Square K (mm): 4.9 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM0812515 Thread size: M8x1.25 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 4 | DIN type: 371
VGCM0812550 Thread size: M8x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 20 | Shank dia. d (mm): 8 | Square K (mm): 6.2 | Square length Kl (mm): 9 | No. of flutes: 4 | DIN type: 371
VGCM1010015 Thread size: M10x1.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM1010050 Thread size: M10x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 90 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM1012515 Thread size: M10x1.25 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM1012550 Thread size: M10x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 7 | Square K (mm): 5.5 | Square length Kl (mm): 8 | No. of flutes: 4 | DIN type: 374
VGCM1015015 Thread size: M10x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4 | DIN type: 371
VGCM1015050 Thread size: M10x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 10 | Square K (mm): 8 | Square length Kl (mm): 11 | No. of flutes: 4 | DIN type: 371
VGCM1210015 Thread size: M12x1.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1210050 Thread size: M12x1.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 18 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1212515 Thread size: M12x1.25 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1212550 Thread size: M12x1.25 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1215015 Thread size: M12x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1215050 Thread size: M12x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 374
VGCM1217515 Thread size: M12x1.75 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 376
VGCM1217550 Thread size: M12x1.75 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 24 | Shank dia. d (mm): 9 | Square K (mm): 7 | Square length Kl (mm): 10 | No. of flutes: 4 | DIN type: 376
VGCM1415015 Thread size: M14x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 374
VGCM1415050 Thread size: M14x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 374
VGCM1420015 Thread size: M14x2.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 376
VGCM1420050 Thread size: M14x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 26 | Shank dia. d (mm): 11 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 376
VGCM1615015 Thread size: M16x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 374
VGCM1615050 Thread size: M16x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 100 | Thread length ℓ (mm): 22 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 374
VGCM1620015 Thread size: M16x2.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 376
VGCM1620050 Thread size: M16x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 12 | Square K (mm): 9 | Square length Kl (mm): 12 | No. of flutes: 4 | DIN type: 376
VGCM1815015 Thread size: M18x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 374
VGCM1815050 Thread size: M18x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 110 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 374
VGCM1825015 Thread size: M18x2.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 376
VGCM1825050 Thread size: M18x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 30 | Shank dia. d (mm): 14 | Square K (mm): 11 | Square length Kl (mm): 14 | No. of flutes: 4 | DIN type: 376
VGCM2015015 Thread size: M20x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 374
VGCM2015050 Thread size: M20x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 374
VGCM2025015 Thread size: M20x2.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 376
VGCM2025050 Thread size: M20x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 16 | Square K (mm): 12 | Square length Kl (mm): 15 | No. of flutes: 4 | DIN type: 376
VGCM2215015 Thread size: M22x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2215050 Thread size: M22x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 125 | Thread length ℓ (mm): 25 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2225015 Thread size: M22x2.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
VGCM2225050 Thread size: M22x2.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 32 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
VGCM2415015 Thread size: M24x1.5 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2415050 Thread size: M24x1.5 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2420015 Thread size: M24x2.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2420050 Thread size: M24x2.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 140 | Thread length ℓ (mm): 27 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 374
VGCM2430015 Thread size: M24x3.0 | Chamfer length: 1.5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
VGCM2430050 Thread size: M24x3.0 | Chamfer length: 5P | Limits: 6H | Overall length L (mm): 160 | Thread length ℓ (mm): 34 | Shank dia. d (mm): 18 | Square K (mm): 14.5 | Square length Kl (mm): 17 | No. of flutes: 4 | DIN type: 376
