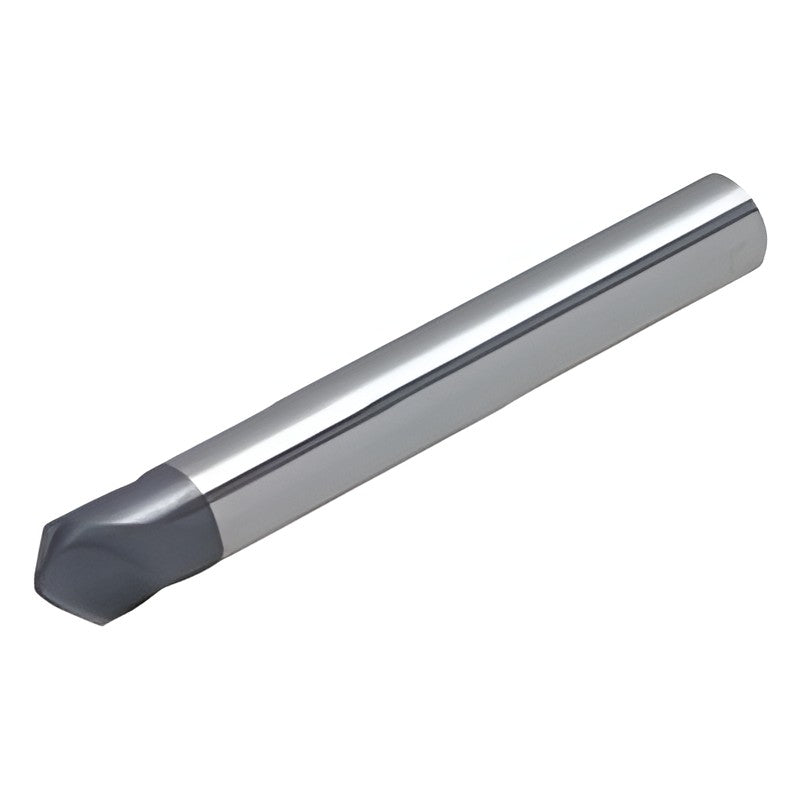

Korloy Double End Chamfer Tool CCT

Korloy Double End Chamfer Tool CCT

Chamfer tool for centering and chamfering in 60, 90 and 120 degree point angles; T types are double ended.

CCT060030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Fig.: 1
CCT060040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Fig.: 1
CCT060060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Fig.: 1
CCT060080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Fig.: 1
CCT060100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Fig.: 1
CCT060120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Fig.: 1
CCT060160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Fig.: 1
CCT060T030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Fig.: 2
CCT060T040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Fig.: 2
CCT060T060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Fig.: 2
CCT060T080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Fig.: 2
CCT060T100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Fig.: 2
CCT060T120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Fig.: 2
CCT060T160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Fig.: 2
CCT060T030L D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 60° | Fig.: 2
CCT060T040L D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 60° | Fig.: 2
CCT060T060L D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 60° | Fig.: 2
CCT060T080L D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 60° | Fig.: 2
CCT060T100L D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 60° | Fig.: 2
CCT060T120L D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 60° | Fig.: 2
CCT090030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Fig.: 1
CCT090040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Fig.: 1
CCT090060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Fig.: 1
CCT090080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Fig.: 1
CCT090100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Fig.: 1
CCT090120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Fig.: 1
CCT090160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Fig.: 1
CCT090T030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Fig.: 2
CCT090T040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Fig.: 2
CCT090T060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Fig.: 2
CCT090T080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Fig.: 2
CCT090T100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Fig.: 2
CCT090T120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Fig.: 2
CCT090T160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Fig.: 2
CCT090T030L D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 90° | Fig.: 2
CCT090T040L D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 90° | Fig.: 2
CCT090T060L D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 90° | Fig.: 2
CCT090T080L D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 90° | Fig.: 2
CCT090T100L D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 90° | Fig.: 2
CCT090T120L D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 90° | Fig.: 2
CCT120030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Fig.: 1
CCT120040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Fig.: 1
CCT120060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Fig.: 1
CCT120080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Fig.: 1
CCT120100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Fig.: 1
CCT120120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Fig.: 1
CCT120160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Fig.: 1
CCT120T030 D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Fig.: 2
CCT120T040 D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Fig.: 2
CCT120T060 D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Fig.: 2
CCT120T080 D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Fig.: 2
CCT120T100 D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Fig.: 2
CCT120T120 D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Fig.: 2
CCT120T160 D = d (mm): 16.0 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Fig.: 2
CCT120T030L D = d (mm): 3.0 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 120° | Fig.: 2
CCT120T040L D = d (mm): 4.0 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 120° | Fig.: 2
CCT120T060L D = d (mm): 6.0 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 120° | Fig.: 2
CCT120T080L D = d (mm): 8.0 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 120° | Fig.: 2
CCT120T100L D = d (mm): 10.0 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 120° | Fig.: 2
CCT120T120L D = d (mm): 12.0 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 120° | Fig.: 2
Chamfer ToolsKorloy
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Double End Chamfer Tool CCT

Brand Korloy·Chamfer Tools

Available part numbers (60)

CCT060030, CCT060040, CCT060060, CCT060080, CCT060100, CCT060120, CCT060160, CCT060T030, CCT060T040, CCT060T060 + 50 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
