• Korloy Drill Insert SPET-ND (Peripheral)
1 1

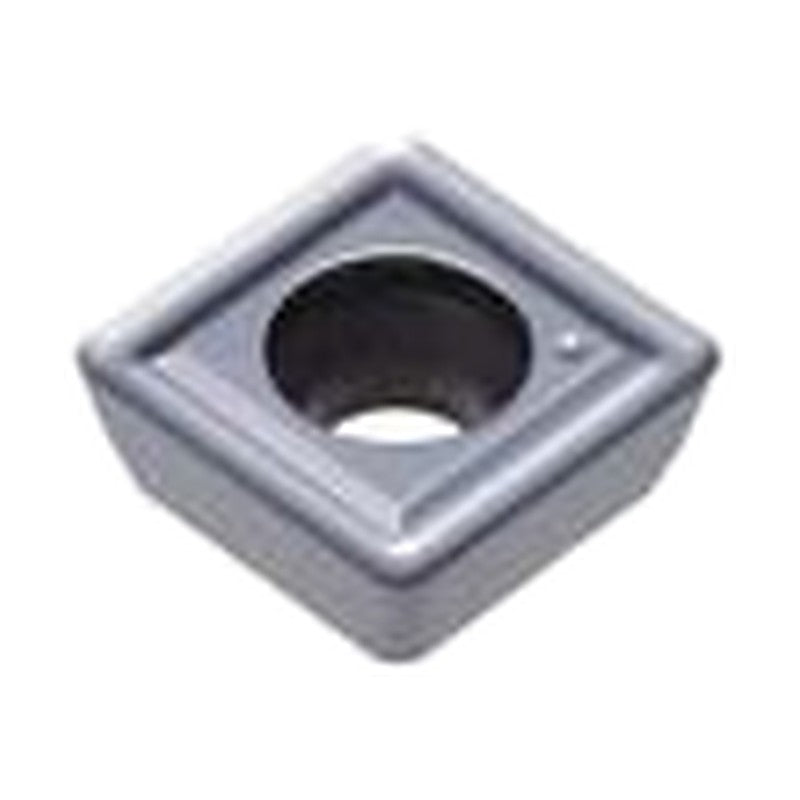

Korloy Drill Insert SPET-ND (Peripheral)

Korloy Drill Insert SPET-ND (Peripheral)

Peripheral indexable drill insert with ND chip breaker for aluminium.

Key features

  • Peripheral position
  • For aluminium
  • Uncoated grade H01

Specifications

Application Railway components
Position Peripheral
Workpiece Aluminium
SPET040204-ND H01 IC (mm): 4.7 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
SPET050204-ND H01 IC (mm): 5.1 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
SPET060205-ND H01 RE (mm): 0.5 | IC (mm): 6.2 | S (mm): 2.5 | Grade: H01 | Stock: Yes
SPET07T208-ND H01 IC (mm): 7.5 | S (mm): 2.8 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET090308-ND H01 IC (mm): 9.2 | S (mm): 3.3 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET11T308-ND H01 IC (mm): 11.0 | S (mm): 4.0 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET130410-ND H01 IC (mm): 13.0 | S (mm): 4.5 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
SPET15M510-ND H01 IC (mm): 15.2 | S (mm): 5.0 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
SPET180510-ND H01 IC (mm): 18.2 | S (mm): 5.5 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
DrillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Drill Insert SPET-ND (Peripheral)

Brand Korloy·Drills

Available part numbers (9)

SPET040204-ND H01, SPET050204-ND H01, SPET060205-ND H01, SPET07T208-ND H01, SPET090308-ND H01, SPET11T308-ND H01, SPET130410-ND H01, SPET15M510-ND H01, SPET180510-ND H01

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPET040204-ND H01IC (mm): 4.7 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
SPET050204-ND H01IC (mm): 5.1 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
SPET060205-ND H01RE (mm): 0.5 | IC (mm): 6.2 | S (mm): 2.5 | Grade: H01 | Stock: Yes
SPET07T208-ND H01IC (mm): 7.5 | S (mm): 2.8 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET090308-ND H01IC (mm): 9.2 | S (mm): 3.3 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET11T308-ND H01IC (mm): 11.0 | S (mm): 4.0 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
SPET130410-ND H01IC (mm): 13.0 | S (mm): 4.5 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
SPET15M510-ND H01IC (mm): 15.2 | S (mm): 5.0 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
SPET180510-ND H01IC (mm): 18.2 | S (mm): 5.5 | RE (mm): 1.0 | Grade: H01 | Stock: Yes
