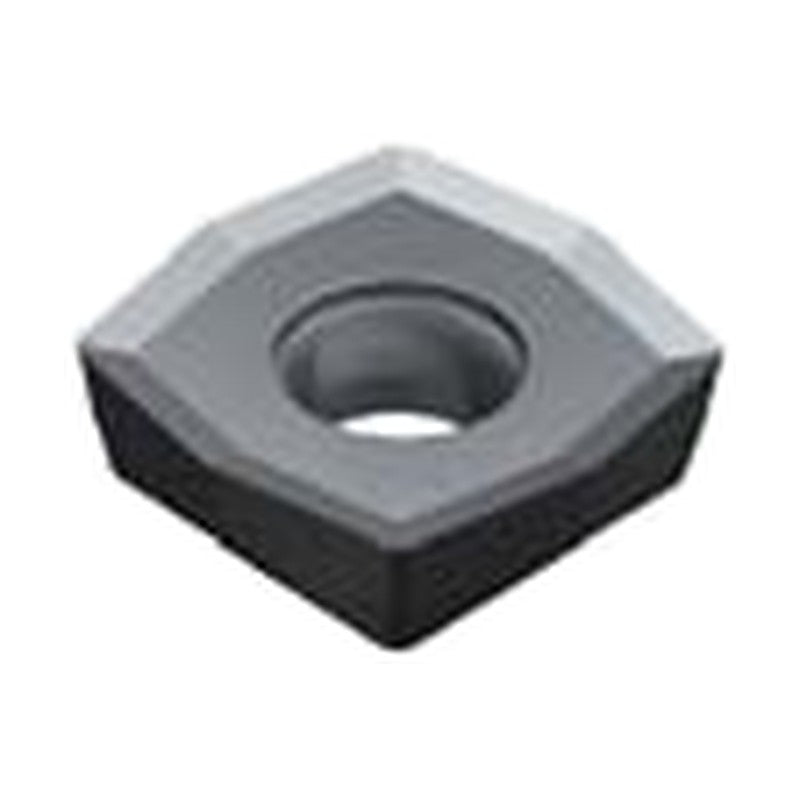

• Korloy Drill Insert XOET-ND (Central)
1 1

Korloy Drill Insert XOET-ND (Central)

Korloy Drill Insert XOET-ND (Central)

Central indexable drill insert with ND chip breaker for aluminium.

Key features

  • Central position
  • For aluminium
  • Uncoated grade H01

Specifications

Application Railway components
Position Central
Workpiece Aluminium
XOET040204-ND H01 IC (mm): 4.9 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET050204-ND H01 IC (mm): 5.4 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET060204-ND H01 IC (mm): 6.6 | S (mm): 2.5 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET07T205-ND H01 IC (mm): 7.8 | S (mm): 2.8 | RE (mm): 0.5 | Grade: H01 | Stock: Yes
XOET090305-ND H01 IC (mm): 9.6 | S (mm): 3.3 | RE (mm): 0.5 | Grade: H01 | Stock: Yes
XOET11T306-ND H01 IC (mm): 11.4 | S (mm): 4.0 | RE (mm): 0.6 | Grade: H01 | Stock: Yes
XOET130406-ND H01 IC (mm): 13.6 | S (mm): 4.5 | RE (mm): 0.6 | Grade: H01 | Stock: Yes
XOET15M508-ND H01 IC (mm): 15.9 | S (mm): 5.0 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
XOET180508-ND H01 IC (mm): 18.9 | S (mm): 5.5 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
DrillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Drill Insert XOET-ND (Central)

Brand Korloy·Drills

Available part numbers (9)

XOET040204-ND H01, XOET050204-ND H01, XOET060204-ND H01, XOET07T205-ND H01, XOET090305-ND H01, XOET11T306-ND H01, XOET130406-ND H01, XOET15M508-ND H01, XOET180508-ND H01

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XOET040204-ND H01IC (mm): 4.9 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET050204-ND H01IC (mm): 5.4 | S (mm): 2.4 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET060204-ND H01IC (mm): 6.6 | S (mm): 2.5 | RE (mm): 0.4 | Grade: H01 | Stock: Yes
XOET07T205-ND H01IC (mm): 7.8 | S (mm): 2.8 | RE (mm): 0.5 | Grade: H01 | Stock: Yes
XOET090305-ND H01IC (mm): 9.6 | S (mm): 3.3 | RE (mm): 0.5 | Grade: H01 | Stock: Yes
XOET11T306-ND H01IC (mm): 11.4 | S (mm): 4.0 | RE (mm): 0.6 | Grade: H01 | Stock: Yes
XOET130406-ND H01IC (mm): 13.6 | S (mm): 4.5 | RE (mm): 0.6 | Grade: H01 | Stock: Yes
XOET15M508-ND H01IC (mm): 15.9 | S (mm): 5.0 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
XOET180508-ND H01IC (mm): 18.9 | S (mm): 5.5 | RE (mm): 0.8 | Grade: H01 | Stock: Yes
