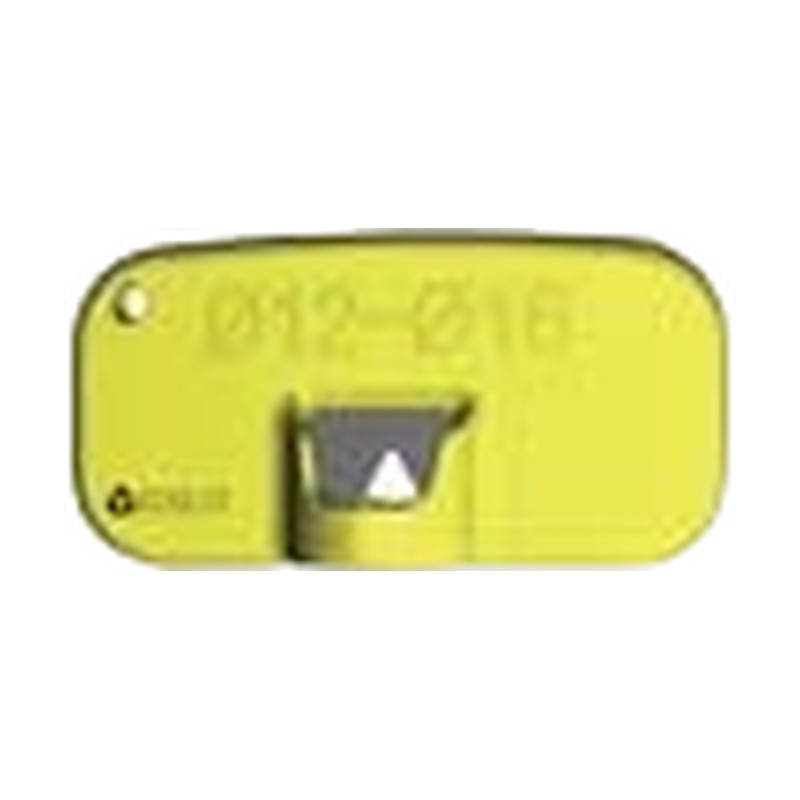

Korloy Wrench for TPD Drill Head TPDC-W

Korloy Wrench for TPD Drill Head TPDC-W

Wrench for mounting TPD exchangeable drill heads on TPDC drill bodies.

Key features

  • Applicable wrench by drill diameter
TPDC-W1216 Drill dia. (mm): 12.00 ~ 16.99 | Torque (N·m): 2.0 ~ 3.0 | Clamping width (mm): 1.2
TPDC-W1721 Drill dia. (mm): 17.00 ~ 21.99 | Torque (N·m): 2.0 ~ 4.0 | Clamping width (mm): 1.5
TPDC-W2225 Drill dia. (mm): 22.00 ~ 25.99 | Torque (N·m): 3.0 ~ 4.0 | Clamping width (mm): 2.0
TPDC-W2630 Drill dia. (mm): 26.00 ~ 30.99 | Torque (N·m): 4.0 ~ 5.0 | Clamping width (mm): 2.5
Tool Holder Spare PartsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Wrench for TPD Drill Head TPDC-W

Brand Korloy·Tool Holder Spare Parts

Available part numbers (4)

TPDC-W1216, TPDC-W1721, TPDC-W2225, TPDC-W2630

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPDC-W1216Drill dia. (mm): 12.00 ~ 16.99 | Torque (N·m): 2.0 ~ 3.0 | Clamping width (mm): 1.2
TPDC-W1721Drill dia. (mm): 17.00 ~ 21.99 | Torque (N·m): 2.0 ~ 4.0 | Clamping width (mm): 1.5
TPDC-W2225Drill dia. (mm): 22.00 ~ 25.99 | Torque (N·m): 3.0 ~ 4.0 | Clamping width (mm): 2.0
TPDC-W2630Drill dia. (mm): 26.00 ~ 30.99 | Torque (N·m): 4.0 ~ 5.0 | Clamping width (mm): 2.5
