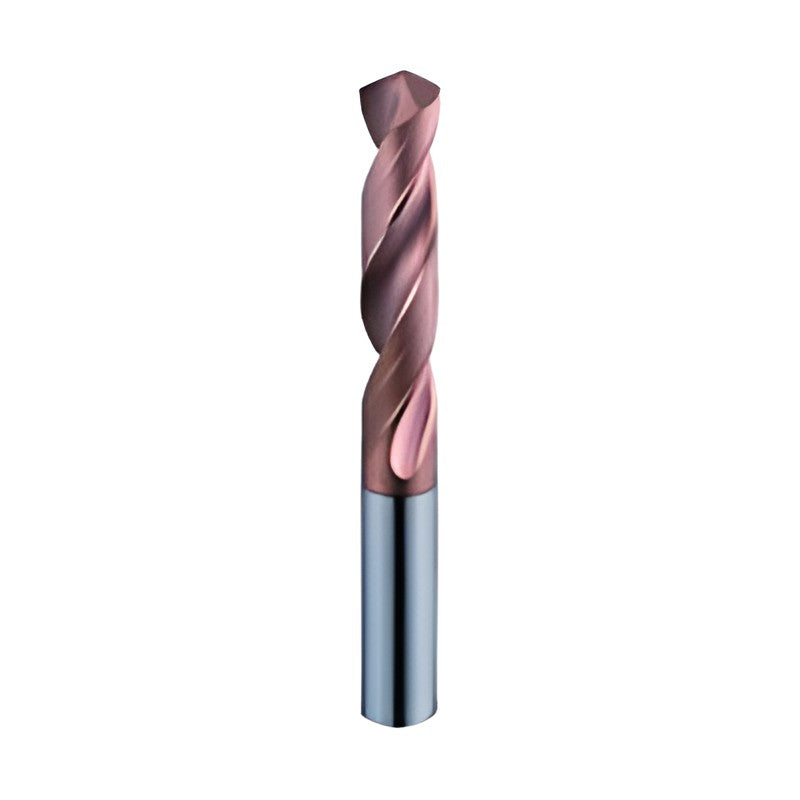

Korloy ESD Plus Eco Solid Carbide Drill ESDP 5D

Korloy ESD Plus Eco Solid Carbide Drill ESDP 5D

Economical solid carbide drill for efficient hole making in steel and automotive components, 5D, external coolant.

Key features

  • Economical solid carbide drill for general hole making
  • PC325U grade
  • 140 degree point angle, X-type thinning
  • External coolant

Specifications

Grade PC325U
Coolant External
Drill tolerance h7
Shank tolerance h6
ESDP101-5P D (mm): 10.1 | Shank d (mm): 11 | l (mm): 55 | L (mm): 90 | Aspect ratio: 5D
ESDP102-5P D (mm): 10.2 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP103-5P D (mm): 10.3 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP104-5P D (mm): 10.4 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP105-5P D (mm): 10.5 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP106-5P D (mm): 10.6 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP107-5P D (mm): 10.7 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP108-5P D (mm): 10.8 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP109-5P D (mm): 10.9 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP110-5P D (mm): 11.0 | Shank d (mm): 11 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP111-5P D (mm): 11.1 | Shank d (mm): 12 | l (mm): 57 | L (mm): 95 | Aspect ratio: 5D
ESDP112-5P D (mm): 11.2 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP113-5P D (mm): 11.3 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP114-5P D (mm): 11.4 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP115-5P D (mm): 11.5 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP116-5P D (mm): 11.6 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP117-5P D (mm): 11.7 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP118-5P D (mm): 11.8 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP119-5P D (mm): 11.9 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP120-5P D (mm): 12.0 | Shank d (mm): 12 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP121-5P D (mm): 12.1 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP122-5P D (mm): 12.2 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP123-5P D (mm): 12.3 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP124-5P D (mm): 12.4 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP125-5P D (mm): 12.5 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP126-5P D (mm): 12.6 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP127-5P D (mm): 12.7 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP128-5P D (mm): 12.8 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP129-5P D (mm): 12.9 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP130-5P D (mm): 13.0 | Shank d (mm): 13 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP131-5P D (mm): 13.1 | Shank d (mm): 14 | l (mm): 63 | L (mm): 102 | Aspect ratio: 5D
ESDP132-5P D (mm): 13.2 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP133-5P D (mm): 13.3 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP134-5P D (mm): 13.4 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP135-5P D (mm): 13.5 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP136-5P D (mm): 13.6 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP137-5P D (mm): 13.7 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP138-5P D (mm): 13.8 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP139-5P D (mm): 13.9 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP140-5P D (mm): 14.0 | Shank d (mm): 14 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP141-5P D (mm): 14.1 | Shank d (mm): 15 | l (mm): 65 | L (mm): 107 | Aspect ratio: 5D
ESDP142-5P D (mm): 14.2 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP143-5P D (mm): 14.3 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP144-5P D (mm): 14.4 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP145-5P D (mm): 14.5 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP146-5P D (mm): 14.6 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP147-5P D (mm): 14.7 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP148-5P D (mm): 14.8 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP149-5P D (mm): 14.9 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP150-5P D (mm): 15.0 | Shank d (mm): 15 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP151-5P D (mm): 15.1 | Shank d (mm): 16 | l (mm): 68 | L (mm): 115 | Aspect ratio: 5D
ESDP152-5P D (mm): 15.2 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP153-5P D (mm): 15.3 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP154-5P D (mm): 15.4 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP155-5P D (mm): 15.5 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP156-5P D (mm): 15.6 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP157-5P D (mm): 15.7 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP158-5P D (mm): 15.8 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP159-5P D (mm): 15.9 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP160-5P D (mm): 16.0 | Shank d (mm): 16 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP161-5P D (mm): 16.1 | Shank d (mm): 17 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP162-5P D (mm): 16.2 | Shank d (mm): 17 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP163-5P D (mm): 16.3 | Shank d (mm): 17 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP164-5P D (mm): 16.4 | Shank d (mm): 17 | l (mm): 70 | L (mm): 120 | Aspect ratio: 5D
ESDP165-5P D (mm): 16.5 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP166-5P D (mm): 16.6 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP167-5P D (mm): 16.7 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP168-5P D (mm): 16.8 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP169-5P D (mm): 16.9 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP170-5P D (mm): 17.0 | Shank d (mm): 17 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP171-5P D (mm): 17.1 | Shank d (mm): 18 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP172-5P D (mm): 17.2 | Shank d (mm): 18 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP173-5P D (mm): 17.3 | Shank d (mm): 18 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP174-5P D (mm): 17.4 | Shank d (mm): 18 | l (mm): 72 | L (mm): 125 | Aspect ratio: 5D
ESDP175-5P D (mm): 17.5 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP176-5P D (mm): 17.6 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP177-5P D (mm): 17.7 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP178-5P D (mm): 17.8 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP179-5P D (mm): 17.9 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP180-5P D (mm): 18.0 | Shank d (mm): 18 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP181-5P D (mm): 18.1 | Shank d (mm): 19 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP182-5P D (mm): 18.2 | Shank d (mm): 19 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP183-5P D (mm): 18.3 | Shank d (mm): 19 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP184-5P D (mm): 18.4 | Shank d (mm): 19 | l (mm): 75 | L (mm): 130 | Aspect ratio: 5D
ESDP185-5P D (mm): 18.5 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP186-5P D (mm): 18.6 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP187-5P D (mm): 18.7 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP188-5P D (mm): 18.8 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP189-5P D (mm): 18.9 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP190-5P D (mm): 19.0 | Shank d (mm): 19 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP191-5P D (mm): 19.1 | Shank d (mm): 20 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP192-5P D (mm): 19.2 | Shank d (mm): 20 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP193-5P D (mm): 19.3 | Shank d (mm): 20 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP194-5P D (mm): 19.4 | Shank d (mm): 20 | l (mm): 78 | L (mm): 130 | Aspect ratio: 5D
ESDP195-5P D (mm): 19.5 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
ESDP196-5P D (mm): 19.6 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
ESDP197-5P D (mm): 19.7 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
ESDP198-5P D (mm): 19.8 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
ESDP199-5P D (mm): 19.9 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
ESDP200-5P D (mm): 20.0 | Shank d (mm): 20 | l (mm): 82 | L (mm): 135 | Aspect ratio: 5D
