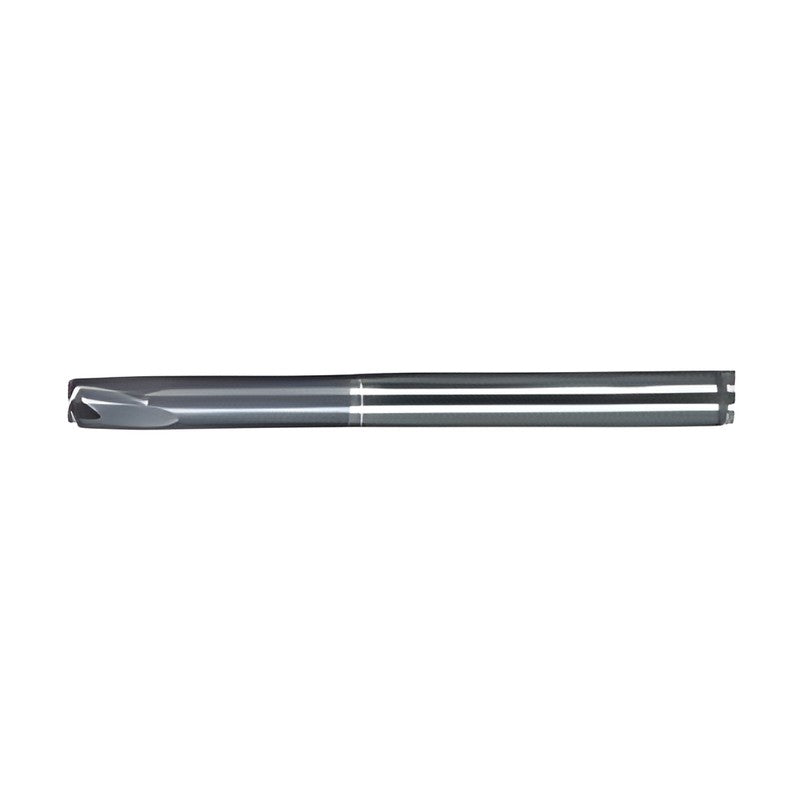

Korloy FME4000 Standard High Feed End Mill

Korloy FME4000 Standard High Feed End Mill

Solid carbide high feed end mill that improves productivity and shortens machining time.

Key features

  • High feed capability
  • Highly efficient machining reduces costs

Specifications

Grade PC203F
Helix angle 0 deg
Shank tolerance h6
FME4060-050-R05 Ball radius R (mm): 0.5 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 18 | Overall length L (mm): 50 | Max. ap (mm): 0.35 | CAM radius (mm): 0.7 | Flutes: 4
FME4080-060-R05 Ball radius R (mm): 0.5 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 6 | l2 (mm): 24 | Overall length L (mm): 60 | Max. ap (mm): 0.45 | CAM radius (mm): 0.8 | Flutes: 4
FME4100-070-R10 Ball radius R (mm): 1.0 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 7.5 | l2 (mm): 30 | Overall length L (mm): 70 | Max. ap (mm): 0.65 | CAM radius (mm): 1.3 | Flutes: 4
FME4120-075-R12 Ball radius R (mm): 1.2 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 9 | l2 (mm): 36 | Overall length L (mm): 75 | Max. ap (mm): 0.78 | CAM radius (mm): 1.6 | Flutes: 4
End MillsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy FME4000 Standard High Feed End Mill

Brand Korloy·End Mills

Available part numbers (4)

FME4060-050-R05, FME4080-060-R05, FME4100-070-R10, FME4120-075-R12

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FME4060-050-R05Ball radius R (mm): 0.5 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 4.5 | l2 (mm): 18 | Overall length L (mm): 50 | Max. ap (mm): 0.35 | CAM radius (mm): 0.7 | Flutes: 4
FME4080-060-R05Ball radius R (mm): 0.5 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 6 | l2 (mm): 24 | Overall length L (mm): 60 | Max. ap (mm): 0.45 | CAM radius (mm): 0.8 | Flutes: 4
FME4100-070-R10Ball radius R (mm): 1.0 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 7.5 | l2 (mm): 30 | Overall length L (mm): 70 | Max. ap (mm): 0.65 | CAM radius (mm): 1.3 | Flutes: 4
FME4120-075-R12Ball radius R (mm): 1.2 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 9 | l2 (mm): 36 | Overall length L (mm): 75 | Max. ap (mm): 0.78 | CAM radius (mm): 1.6 | Flutes: 4
