• Korloy FMR D-Positive Round Milling Insert
1 1

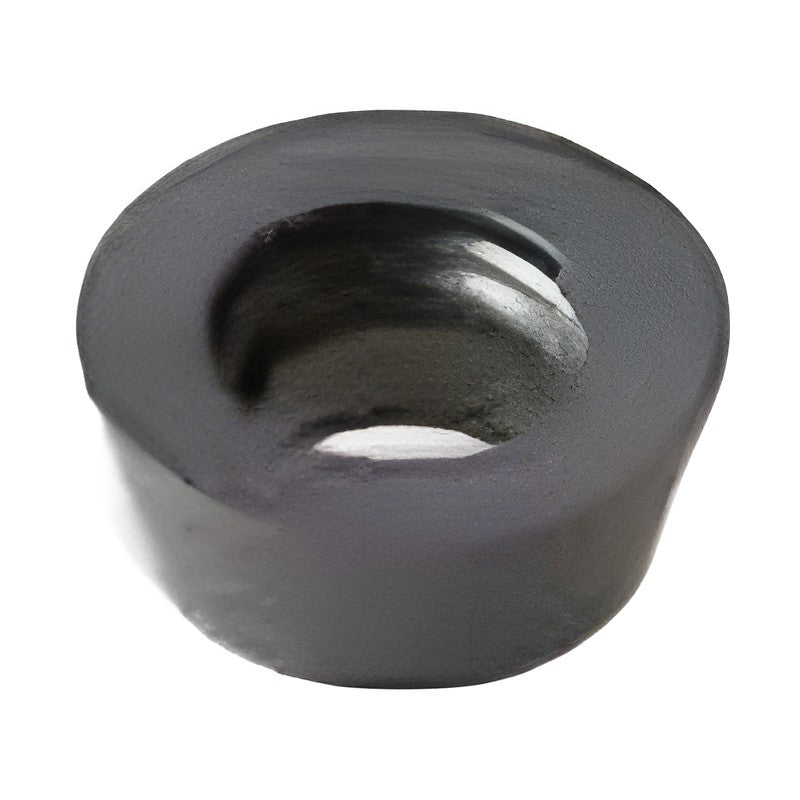

Korloy FMR D-Positive Round Milling Insert

Korloy FMR D-Positive Round Milling Insert

Future Mill FMR D-positive round insert milling system for medium to rough machining of steel and hardened mold materials.

Key features

  • 2-step insert shape for strong clamping
  • 4-8 cutting edges per insert
  • Uneven flute spacing reduces vibration
  • Rotation-prevention insert seat
RDCT10T3M0-MA H01 Chip breaker: MA | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: H01 | Stock: Yes
RDHW06T1M0E PC9530 d (mm): 6 | t (mm): 1.98 | d1 (mm): 2.5 | Grade: PC9530 | Stock: Yes
RDHW0702M0E PC9530 d (mm): 7 | t (mm): 2.38 | d1 (mm): 2.8 | Grade: PC9530 | Stock: Yes
RDHW0803M0E PC9530 d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MF PC3545 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3545 | Stock: Yes
RDKT10T3M0-MF PC9530 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MF PC5300 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC5300 | Stock: Yes
RDKT1204M0-MF PC3500 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
RDKT1204M0-MF PC3545 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3545 | Stock: Yes
RDKT1204M0-MF PC9530 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC9530 | Stock: Yes
RDKT1204M0-MF PC5300 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RDKT10T3M0-MM PC3500 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3500 | Stock: Yes
RDKT10T3M0-MM PC3545 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3545 | Stock: Yes
RDKT10T3M0-MM PC9530 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MM PC5300 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC5300 | Stock: Yes
RDKT1204M0-MM PC3500 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
RDKT1204M0-MM PC3545 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3545 | Stock: Yes
RDKT1204M0-MM PC9530 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC9530 | Stock: Yes
RDKT1204M0-MM PC5300 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RDKT1605M0-MM PC3500 Chip breaker: MM | d (mm): 16 | t (mm): 5.56 | d1 (mm): 5.5 | Grade: PC3500 | Stock: Yes
RDKT1605M0-MM PC3545 Chip breaker: MM | d (mm): 16 | t (mm): 5.56 | d1 (mm): 5.5 | Grade: PC3545 | Stock: Yes
RDKT2006M0-MM PC3500 Chip breaker: MM | d (mm): 20 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3500 | Stock: Yes
RDKT2006M0-MM PC3545 Chip breaker: MM | d (mm): 20 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3545 | Stock: Yes
RDKW0501M0E PC3500 d (mm): 5 | t (mm): 1.59 | d1 (mm): 2.3 | Grade: PC3500 | Stock: Yes
RDKW06T1M0E PC3500 d (mm): 6 | t (mm): 1.98 | d1 (mm): 2.5 | Grade: PC3500 | Stock: Yes
RDKW0702M0E PC3500 d (mm): 7 | t (mm): 2.38 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
RDKW0803M0E PC3500 d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes
Milling InsertsKorloy
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy FMR D-Positive Round Milling Insert

Brand Korloy·Milling Inserts

Available part numbers (27)

RDCT10T3M0-MA H01, RDHW06T1M0E PC9530, RDHW0702M0E PC9530, RDHW0803M0E PC9530, RDKT10T3M0-MF PC3545, RDKT10T3M0-MF PC9530, RDKT10T3M0-MF PC5300, RDKT1204M0-MF PC3500, RDKT1204M0-MF PC3545, RDKT1204M0-MF PC9530 + 17 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RDCT10T3M0-MA H01Chip breaker: MA | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: H01 | Stock: Yes
RDHW06T1M0E PC9530d (mm): 6 | t (mm): 1.98 | d1 (mm): 2.5 | Grade: PC9530 | Stock: Yes
RDHW0702M0E PC9530d (mm): 7 | t (mm): 2.38 | d1 (mm): 2.8 | Grade: PC9530 | Stock: Yes
RDHW0803M0E PC9530d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MF PC3545Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3545 | Stock: Yes
RDKT10T3M0-MF PC9530Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MF PC5300Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC5300 | Stock: Yes
RDKT1204M0-MF PC3500Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
RDKT1204M0-MF PC3545Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3545 | Stock: Yes
RDKT1204M0-MF PC9530Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC9530 | Stock: Yes
RDKT1204M0-MF PC5300Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RDKT10T3M0-MM PC3500Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3500 | Stock: Yes
RDKT10T3M0-MM PC3545Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC3545 | Stock: Yes
RDKT10T3M0-MM PC9530Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC9530 | Stock: Yes
RDKT10T3M0-MM PC5300Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 3.85 | Grade: PC5300 | Stock: Yes
RDKT1204M0-MM PC3500Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
RDKT1204M0-MM PC3545Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3545 | Stock: Yes
RDKT1204M0-MM PC9530Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC9530 | Stock: Yes
RDKT1204M0-MM PC5300Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RDKT1605M0-MM PC3500Chip breaker: MM | d (mm): 16 | t (mm): 5.56 | d1 (mm): 5.5 | Grade: PC3500 | Stock: Yes
RDKT1605M0-MM PC3545Chip breaker: MM | d (mm): 16 | t (mm): 5.56 | d1 (mm): 5.5 | Grade: PC3545 | Stock: Yes
RDKT2006M0-MM PC3500Chip breaker: MM | d (mm): 20 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3500 | Stock: Yes
RDKT2006M0-MM PC3545Chip breaker: MM | d (mm): 20 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3545 | Stock: Yes
RDKW0501M0E PC3500d (mm): 5 | t (mm): 1.59 | d1 (mm): 2.3 | Grade: PC3500 | Stock: Yes
RDKW06T1M0E PC3500d (mm): 6 | t (mm): 1.98 | d1 (mm): 2.5 | Grade: PC3500 | Stock: Yes
RDKW0702M0E PC3500d (mm): 7 | t (mm): 2.38 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
RDKW0803M0E PC3500d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
