• Korloy FMR P-Positive Round Milling Insert
1 1

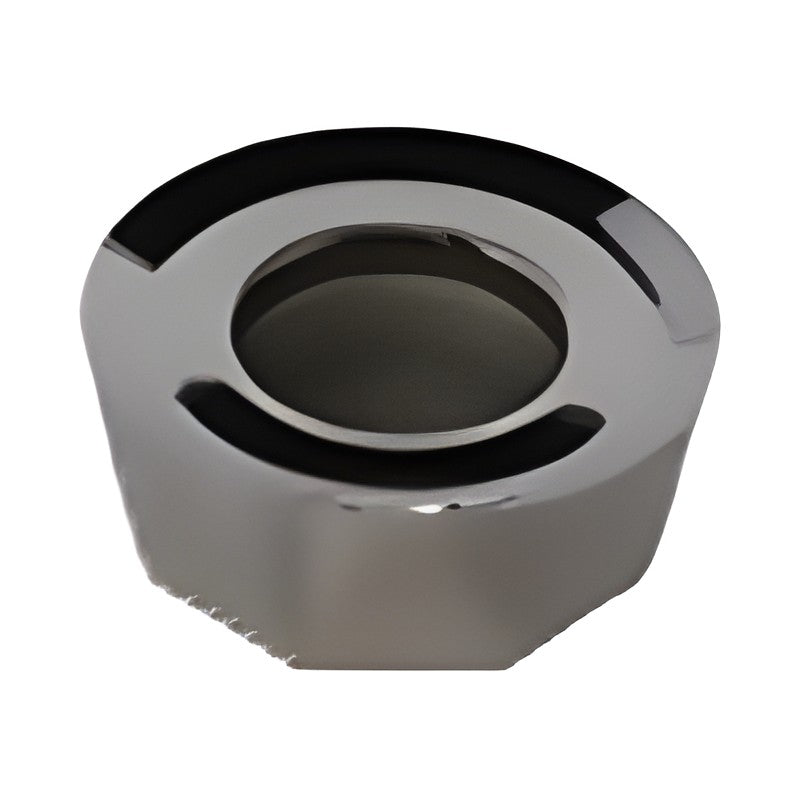

Korloy FMR P-Positive Round Milling Insert

Korloy FMR P-Positive Round Milling Insert

Future Mill FMR P-positive round insert milling system for mold making, die steel and heat-resistant alloys.

Key features

  • P-positive 11° relief angle for rigidity and machinability
  • Flat clearance face prevents insert rotation
  • Stable clamping system
  • Optimal grades and chip breakers
RPCT10T3M0-MA H01 Chip breaker: MA | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: H01 | Stock: Yes
RPCT1204M0-MA H01 Chip breaker: MA | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: H01 | Stock: Yes
RPCT1606M0-MA H01 Chip breaker: MA | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: H01 | Stock: Yes
RPCT2007M0-MA H01 Chip breaker: MA | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: H01 | Stock: Yes
RPET0803M0E-ML PC5300 Chip breaker: ML | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPET0803M0E-ML PC5400 Chip breaker: ML | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPET103TM0E-ML PC5300 Chip breaker: ML | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPET103TM0E-ML PC5400 Chip breaker: ML | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPET1204M0E-ML PC5300 Chip breaker: ML | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPET1204M0E-ML PC5400 Chip breaker: ML | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPET1606M0E-ML PC5300 Chip breaker: ML | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPET1606M0E-ML PC5400 Chip breaker: ML | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPET2007M0E-ML PC5300 Chip breaker: ML | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPET2007M0E-ML PC5400 Chip breaker: ML | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMT0803M0E-MF PC3600 Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMT0803M0E-MF PC5300 Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMT0803M0E-MF PC5400 Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMT10T3M0E-MF PC3600 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMT10T3M0E-MF PC5300 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMT10T3M0E-MF PC5400 Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMT1204M0E-MF PC3600 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMT1204M0E-MF PC5300 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMT1204M0E-MF PC5400 Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMT1606M0E-MF PC3600 Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMT1606M0E-MF PC5300 Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMT1606M0E-MF PC5400 Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMT2007M0E-MF PC3600 Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMT2007M0E-MF PC5300 Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMT2007M0E-MF PC5400 Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMT0803M0S-MM PC3600 Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMT0803M0S-MM PC5300 Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMT0803M0S-MM PC5400 Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMT10T3M0S-MM PC3600 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMT10T3M0S-MM PC5300 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMT10T3M0S-MM PC5400 Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMT1204M0S-MM PC3600 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMT1204M0S-MM PC5300 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMT1204M0S-MM PC5400 Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMT1606M0S-MM PC3600 Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMT1606M0S-MM PC5300 Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMT1606M0S-MM PC5400 Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMT2007M0S-MM PC3600 Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMT2007M0S-MM PC5300 Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMT2007M0S-MM PC5400 Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMW0803M0E1 PC3600 d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMW0803M0E1 PC5300 d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMW0803M0E1 PC5400 d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMW10T3M0E1 PC3600 d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMW10T3M0E1 PC5300 d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMW10T3M0E1 PC5400 d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMW1204M0S1 PC3600 d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMW1204M0S1 PC5300 d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMW1204M0S1 PC5400 d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMW1204M0S2 PC5300 d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMW1204M0S2 PC5400 d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMW1606M0S1 PC3600 d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMW1606M0S1 PC5300 d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMW1606M0S1 PC5400 d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMW2007M0S1 PC3600 d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMW2007M0S1 PC5300 d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMW2007M0S1 PC5400 d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
Milling InsertsKorloy
61 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy FMR P-Positive Round Milling Insert

Brand Korloy·Milling Inserts

Available part numbers (61)

RPCT10T3M0-MA H01, RPCT1204M0-MA H01, RPCT1606M0-MA H01, RPCT2007M0-MA H01, RPET0803M0E-ML PC5300, RPET0803M0E-ML PC5400, RPET103TM0E-ML PC5300, RPET103TM0E-ML PC5400, RPET1204M0E-ML PC5300, RPET1204M0E-ML PC5400 + 51 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RPCT10T3M0-MA H01Chip breaker: MA | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: H01 | Stock: Yes
RPCT1204M0-MA H01Chip breaker: MA | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: H01 | Stock: Yes
RPCT1606M0-MA H01Chip breaker: MA | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: H01 | Stock: Yes
RPCT2007M0-MA H01Chip breaker: MA | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: H01 | Stock: Yes
RPET0803M0E-ML PC5300Chip breaker: ML | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPET0803M0E-ML PC5400Chip breaker: ML | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPET103TM0E-ML PC5300Chip breaker: ML | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPET103TM0E-ML PC5400Chip breaker: ML | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPET1204M0E-ML PC5300Chip breaker: ML | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPET1204M0E-ML PC5400Chip breaker: ML | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPET1606M0E-ML PC5300Chip breaker: ML | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPET1606M0E-ML PC5400Chip breaker: ML | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPET2007M0E-ML PC5300Chip breaker: ML | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPET2007M0E-ML PC5400Chip breaker: ML | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMT0803M0E-MF PC3600Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMT0803M0E-MF PC5300Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMT0803M0E-MF PC5400Chip breaker: MF | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMT10T3M0E-MF PC3600Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMT10T3M0E-MF PC5300Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMT10T3M0E-MF PC5400Chip breaker: MF | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMT1204M0E-MF PC3600Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMT1204M0E-MF PC5300Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMT1204M0E-MF PC5400Chip breaker: MF | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMT1606M0E-MF PC3600Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMT1606M0E-MF PC5300Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMT1606M0E-MF PC5400Chip breaker: MF | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMT2007M0E-MF PC3600Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMT2007M0E-MF PC5300Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMT2007M0E-MF PC5400Chip breaker: MF | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMT0803M0S-MM PC3600Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMT0803M0S-MM PC5300Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMT0803M0S-MM PC5400Chip breaker: MM | d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMT10T3M0S-MM PC3600Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMT10T3M0S-MM PC5300Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMT10T3M0S-MM PC5400Chip breaker: MM | d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMT1204M0S-MM PC3600Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMT1204M0S-MM PC5300Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMT1204M0S-MM PC5400Chip breaker: MM | d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMT1606M0S-MM PC3600Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMT1606M0S-MM PC5300Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMT1606M0S-MM PC5400Chip breaker: MM | d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMT2007M0S-MM PC3600Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMT2007M0S-MM PC5300Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMT2007M0S-MM PC5400Chip breaker: MM | d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
RPMW0803M0E1 PC3600d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC3600 | Stock: Yes
RPMW0803M0E1 PC5300d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
RPMW0803M0E1 PC5400d (mm): 8 | t (mm): 3.18 | d1 (mm): 3.4 | Grade: PC5400 | Stock: Yes
RPMW10T3M0E1 PC3600d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC3600 | Stock: Yes
RPMW10T3M0E1 PC5300d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5300 | Stock: Yes
RPMW10T3M0E1 PC5400d (mm): 10 | t (mm): 3.97 | d1 (mm): 4.0 | Grade: PC5400 | Stock: Yes
RPMW1204M0S1 PC3600d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC3600 | Stock: Yes
RPMW1204M0S1 PC5300d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMW1204M0S1 PC5400d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMW1204M0S2 PC5300d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
RPMW1204M0S2 PC5400d (mm): 12 | t (mm): 4.76 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
RPMW1606M0S1 PC3600d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC3600 | Stock: Yes
RPMW1606M0S1 PC5300d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5300 | Stock: Yes
RPMW1606M0S1 PC5400d (mm): 16 | t (mm): 6.35 | d1 (mm): 5.5 | Grade: PC5400 | Stock: Yes
RPMW2007M0S1 PC3600d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC3600 | Stock: Yes
RPMW2007M0S1 PC5300d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5300 | Stock: Yes
RPMW2007M0S1 PC5400d (mm): 20 | t (mm): 7.00 | d1 (mm): 7.0 | Grade: PC5400 | Stock: Yes
