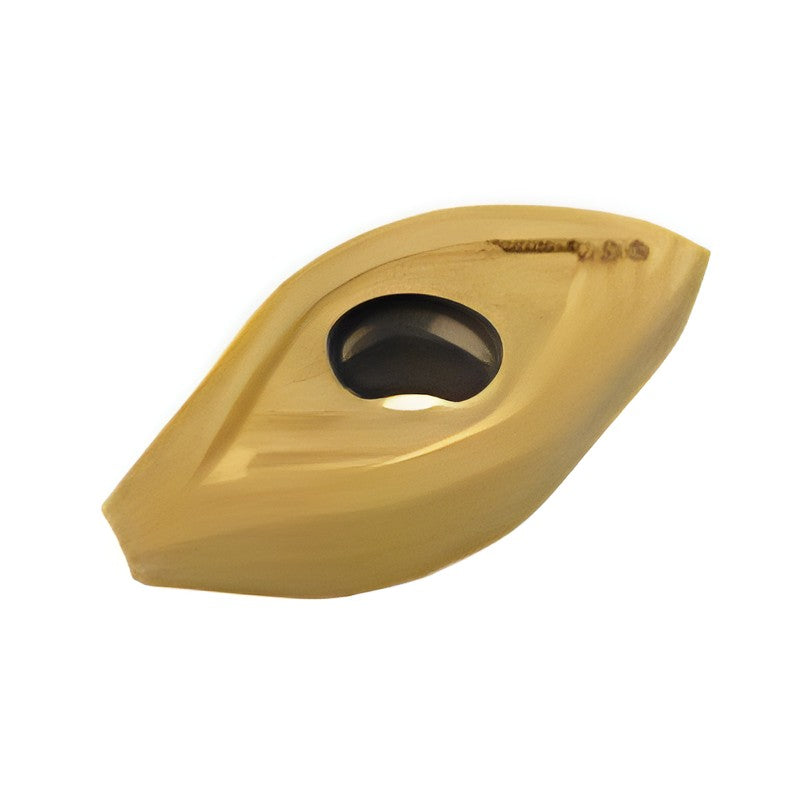

Korloy GBE Ball End Mill Insert

Korloy GBE Ball End Mill Insert

GBE general indexable ball end mill for profiling, with ZPET ball inserts and positive inserts.

Key features

  • Various diameters (16 to 50 mm)
  • Internal coolant to the cutting edge
  • Helical cutting edge for low cutting resistance
  • Anti-rotation insert seat
ZPET100M-MM PC3500 Chip breaker: MM | Use: Internal | l (mm): 19 | d (mm): 10.4 | t (mm): 4.5 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes
ZPET100M-MM PC5300 Chip breaker: MM | Use: Internal | l (mm): 19 | d (mm): 10.4 | t (mm): 4.5 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
ZPET125M-MM PC3500 Chip breaker: MM | Use: Internal | l (mm): 24 | d (mm): 12.9 | t (mm): 5.3 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
ZPET125M-MM PC5300 Chip breaker: MM | Use: Internal | l (mm): 24 | d (mm): 12.9 | t (mm): 5.3 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
ZPET150M-MM PC3500 Chip breaker: MM | Use: Internal | l (mm): 28 | d (mm): 15.4 | t (mm): 7 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET150M-MM PC5300 Chip breaker: MM | Use: Internal | l (mm): 28 | d (mm): 15.4 | t (mm): 7 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET160M-MM PC3500 Chip breaker: MM | Use: Internal | l (mm): 28.5 | d (mm): 16.4 | t (mm): 7 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET160M-MM PC5300 Chip breaker: MM | Use: Internal | l (mm): 28.5 | d (mm): 16.4 | t (mm): 7 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET200M-MM PC3500 Chip breaker: MM | Use: Internal | l (mm): 38 | d (mm): 20.7 | t (mm): 8 | r (mm): 20 | d1 (mm): 6.6 | Grade: PC3500 | Stock: Yes
ZPET100S-MM PC3500 Chip breaker: MM | Use: External | l (mm): 15.5 | d (mm): 8.4 | t (mm): 3.8 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes
ZPET100S-MM PC5300 Chip breaker: MM | Use: External | l (mm): 15.5 | d (mm): 8.4 | t (mm): 3.8 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
ZPET125S-MM PC3500 Chip breaker: MM | Use: External | l (mm): 20.5 | d (mm): 10.7 | t (mm): 4.5 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
ZPET125S-MM PC5300 Chip breaker: MM | Use: External | l (mm): 20.5 | d (mm): 10.7 | t (mm): 4.5 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
ZPET150S-MM PC3500 Chip breaker: MM | Use: External | l (mm): 25 | d (mm): 12.4 | t (mm): 6.5 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET150S-MM PC5300 Chip breaker: MM | Use: External | l (mm): 25 | d (mm): 12.4 | t (mm): 6.5 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET160S-MM PC3500 Chip breaker: MM | Use: External | l (mm): 26 | d (mm): 13.4 | t (mm): 6.5 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET160S-MM PC5300 Chip breaker: MM | Use: External | l (mm): 26 | d (mm): 13.4 | t (mm): 6.5 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET200S-MM PC3500 Chip breaker: MM | Use: External | l (mm): 32 | d (mm): 16.7 | t (mm): 7 | r (mm): 20 | d1 (mm): 6.6 | Grade: PC3500 | Stock: Yes
SPMT060304 NCM325 d (mm): 6.35 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Grade: NCM325 | Stock: Yes
SPMT120408-MM PC3500 Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
SPMT120408-MM PC3545 Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3545 | Stock: Yes
SPMT120408-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
SDMT090308-MM NCM325 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.18 | r (mm): 0.8 | d1 (mm): 4.4 | Grade: NCM325 | Stock: Yes
SDMT090308-MM PC5300 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.18 | r (mm): 0.8 | d1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
Milling InsertsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy GBE Ball End Mill Insert

Brand Korloy·Milling Inserts

Available part numbers (24)

ZPET100M-MM PC3500, ZPET100M-MM PC5300, ZPET125M-MM PC3500, ZPET125M-MM PC5300, ZPET150M-MM PC3500, ZPET150M-MM PC5300, ZPET160M-MM PC3500, ZPET160M-MM PC5300, ZPET200M-MM PC3500, ZPET100S-MM PC3500 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPET100M-MM PC3500Chip breaker: MM | Use: Internal | l (mm): 19 | d (mm): 10.4 | t (mm): 4.5 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes
ZPET100M-MM PC5300Chip breaker: MM | Use: Internal | l (mm): 19 | d (mm): 10.4 | t (mm): 4.5 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
ZPET125M-MM PC3500Chip breaker: MM | Use: Internal | l (mm): 24 | d (mm): 12.9 | t (mm): 5.3 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
ZPET125M-MM PC5300Chip breaker: MM | Use: Internal | l (mm): 24 | d (mm): 12.9 | t (mm): 5.3 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
ZPET150M-MM PC3500Chip breaker: MM | Use: Internal | l (mm): 28 | d (mm): 15.4 | t (mm): 7 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET150M-MM PC5300Chip breaker: MM | Use: Internal | l (mm): 28 | d (mm): 15.4 | t (mm): 7 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET160M-MM PC3500Chip breaker: MM | Use: Internal | l (mm): 28.5 | d (mm): 16.4 | t (mm): 7 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET160M-MM PC5300Chip breaker: MM | Use: Internal | l (mm): 28.5 | d (mm): 16.4 | t (mm): 7 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET200M-MM PC3500Chip breaker: MM | Use: Internal | l (mm): 38 | d (mm): 20.7 | t (mm): 8 | r (mm): 20 | d1 (mm): 6.6 | Grade: PC3500 | Stock: Yes
ZPET100S-MM PC3500Chip breaker: MM | Use: External | l (mm): 15.5 | d (mm): 8.4 | t (mm): 3.8 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC3500 | Stock: Yes
ZPET100S-MM PC5300Chip breaker: MM | Use: External | l (mm): 15.5 | d (mm): 8.4 | t (mm): 3.8 | r (mm): 10 | d1 (mm): 3.4 | Grade: PC5300 | Stock: Yes
ZPET125S-MM PC3500Chip breaker: MM | Use: External | l (mm): 20.5 | d (mm): 10.7 | t (mm): 4.5 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
ZPET125S-MM PC5300Chip breaker: MM | Use: External | l (mm): 20.5 | d (mm): 10.7 | t (mm): 4.5 | r (mm): 12.5 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
ZPET150S-MM PC3500Chip breaker: MM | Use: External | l (mm): 25 | d (mm): 12.4 | t (mm): 6.5 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET150S-MM PC5300Chip breaker: MM | Use: External | l (mm): 25 | d (mm): 12.4 | t (mm): 6.5 | r (mm): 15 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET160S-MM PC3500Chip breaker: MM | Use: External | l (mm): 26 | d (mm): 13.4 | t (mm): 6.5 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
ZPET160S-MM PC5300Chip breaker: MM | Use: External | l (mm): 26 | d (mm): 13.4 | t (mm): 6.5 | r (mm): 16 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
ZPET200S-MM PC3500Chip breaker: MM | Use: External | l (mm): 32 | d (mm): 16.7 | t (mm): 7 | r (mm): 20 | d1 (mm): 6.6 | Grade: PC3500 | Stock: Yes
SPMT060304 NCM325d (mm): 6.35 | t (mm): 3.18 | r (mm): 0.4 | d1 (mm): 2.8 | Grade: NCM325 | Stock: Yes
SPMT120408-MM PC3500Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3500 | Stock: Yes
SPMT120408-MM PC3545Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC3545 | Stock: Yes
SPMT120408-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 4.76 | r (mm): 0.8 | d1 (mm): 5.6 | Grade: PC5300 | Stock: Yes
SDMT090308-MM NCM325Chip breaker: MM | d (mm): 9.525 | t (mm): 3.18 | r (mm): 0.8 | d1 (mm): 4.4 | Grade: NCM325 | Stock: Yes
SDMT090308-MM PC5300Chip breaker: MM | d (mm): 9.525 | t (mm): 3.18 | r (mm): 0.8 | d1 (mm): 4.4 | Grade: PC5300 | Stock: Yes
