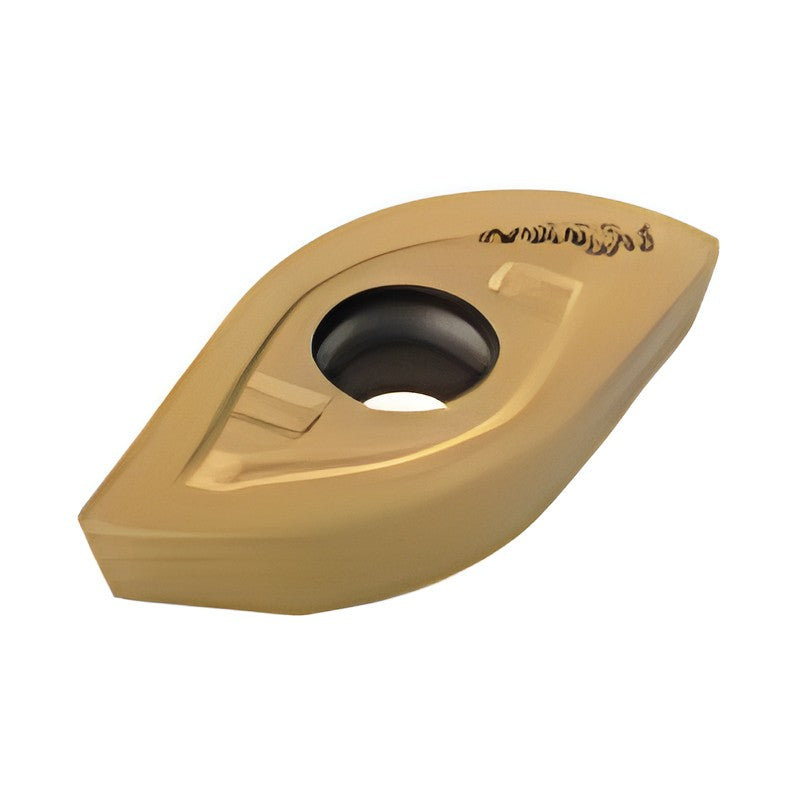

Korloy GBE Ball Nose Milling Insert ZPET/SPMT/SDMT

Korloy GBE Ball Nose Milling Insert ZPET/SPMT/SDMT

ZPET-MM internal/external ball inserts and SPMT/SDMT external main inserts for GBE indexable ball nose end mills.

Key features

  • Helical high accuracy cutting edge
  • Concave bottom prevents insert rotation
  • R accuracy within 0.05 mm

Specifications

Holder GBE / GBE-M / GBEM
ZPET080M-MM Position: Internal | l (mm): 16 | d (mm): 8.0 | Thickness t (mm): 3.5 | Radius r (mm): 8 | Hole dia. d1 (mm): 2.9
ZPET090M-MM Position: Internal | l (mm): 17.7 | d (mm): 7.2 | Thickness t (mm): 4.3 | Radius r (mm): 9 | Hole dia. d1 (mm): 3.4
ZPET100M-MM PC2510 Position: Internal | l (mm): 19 | d (mm): 10.4 | Thickness t (mm): 4.5 | Radius r (mm): 10 | Hole dia. d1 (mm): 3.4 | Grade: PC2510 | Stock: Yes
ZPET110M-MM Position: Internal | l (mm): 22.2 | d (mm): 11.4 | Thickness t (mm): 4.8 | Radius r (mm): 11 | Hole dia. d1 (mm): 4.5
ZPET125M-MM PC2510 Position: Internal | l (mm): 24 | d (mm): 12.9 | Thickness t (mm): 5.3 | Radius r (mm): 12.5 | Hole dia. d1 (mm): 4.5 | Grade: PC2510 | Stock: Yes
ZPET130M-MM Position: Internal | l (mm): 25.7 | d (mm): 13.4 | Thickness t (mm): 5.3 | Radius r (mm): 13 | Hole dia. d1 (mm): 4.5
ZPET140M-MM Position: Internal | l (mm): 27.2 | d (mm): 14.3 | Thickness t (mm): 6.3 | Radius r (mm): 14 | Hole dia. d1 (mm): 5.6
ZPET160M-MM PC2510 Position: Internal | l (mm): 28.5 | d (mm): 16.4 | Thickness t (mm): 7 | Radius r (mm): 16 | Hole dia. d1 (mm): 5.6 | Grade: PC2510 | Stock: Yes
ZPET250M-MM Position: Internal | l (mm): 48 | d (mm): 25.9 | Thickness t (mm): 9.5 | Radius r (mm): 25 | Hole dia. d1 (mm): 8.6
ZPET080S-MM Position: External | l (mm): 15 | d (mm): 6.6 | Thickness t (mm): 3.1 | Radius r (mm): 8 | Hole dia. d1 (mm): 2.9
ZPET090S-MM Position: External | l (mm): 15.5 | d (mm): 7.4 | Thickness t (mm): 3.7 | Radius r (mm): 9 | Hole dia. d1 (mm): 3.4
ZPET100S-MM PC2510 Position: External | l (mm): 15.5 | d (mm): 8.4 | Thickness t (mm): 3.8 | Radius r (mm): 10 | Hole dia. d1 (mm): 3.4 | Grade: PC2510 | Stock: Yes
ZPET110S-MM Position: External | l (mm): 18.1 | d (mm): 9 | Thickness t (mm): 4.4 | Radius r (mm): 11 | Hole dia. d1 (mm): 4.5
ZPET125S-MM PC2510 Position: External | l (mm): 20.5 | d (mm): 10.7 | Thickness t (mm): 4.5 | Radius r (mm): 12.5 | Hole dia. d1 (mm): 4.5 | Grade: PC2510 | Stock: Yes
ZPET130S-MM Position: External | l (mm): 22.2 | d (mm): 11 | Thickness t (mm): 4.4 | Radius r (mm): 13 | Hole dia. d1 (mm): 4.5
ZPET140S-MM Position: External | l (mm): 24.1 | d (mm): 11.2 | Thickness t (mm): 5.7 | Radius r (mm): 14 | Hole dia. d1 (mm): 5.6
ZPET160S-MM PC2510 Position: External | l (mm): 26 | d (mm): 13.4 | Thickness t (mm): 6.5 | Radius r (mm): 16 | Hole dia. d1 (mm): 5.6 | Grade: PC2510 | Stock: Yes
ZPET250S-MM Position: External | l (mm): 40 | d (mm): 20.7 | Thickness t (mm): 8.5 | Radius r (mm): 25 | Hole dia. d1 (mm): 8.6
Milling InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy GBE Ball Nose Milling Insert ZPET/SPMT/SDMT

Brand Korloy·Milling Inserts

Available part numbers (18)

ZPET080M-MM, ZPET090M-MM, ZPET100M-MM PC2510, ZPET110M-MM, ZPET125M-MM PC2510, ZPET130M-MM, ZPET140M-MM, ZPET160M-MM PC2510, ZPET250M-MM, ZPET080S-MM + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPET080M-MMPosition: Internal | l (mm): 16 | d (mm): 8.0 | Thickness t (mm): 3.5 | Radius r (mm): 8 | Hole dia. d1 (mm): 2.9
ZPET090M-MMPosition: Internal | l (mm): 17.7 | d (mm): 7.2 | Thickness t (mm): 4.3 | Radius r (mm): 9 | Hole dia. d1 (mm): 3.4
ZPET100M-MM PC2510Position: Internal | l (mm): 19 | d (mm): 10.4 | Thickness t (mm): 4.5 | Radius r (mm): 10 | Hole dia. d1 (mm): 3.4 | Grade: PC2510 | Stock: Yes
ZPET110M-MMPosition: Internal | l (mm): 22.2 | d (mm): 11.4 | Thickness t (mm): 4.8 | Radius r (mm): 11 | Hole dia. d1 (mm): 4.5
ZPET125M-MM PC2510Position: Internal | l (mm): 24 | d (mm): 12.9 | Thickness t (mm): 5.3 | Radius r (mm): 12.5 | Hole dia. d1 (mm): 4.5 | Grade: PC2510 | Stock: Yes
ZPET130M-MMPosition: Internal | l (mm): 25.7 | d (mm): 13.4 | Thickness t (mm): 5.3 | Radius r (mm): 13 | Hole dia. d1 (mm): 4.5
ZPET140M-MMPosition: Internal | l (mm): 27.2 | d (mm): 14.3 | Thickness t (mm): 6.3 | Radius r (mm): 14 | Hole dia. d1 (mm): 5.6
ZPET160M-MM PC2510Position: Internal | l (mm): 28.5 | d (mm): 16.4 | Thickness t (mm): 7 | Radius r (mm): 16 | Hole dia. d1 (mm): 5.6 | Grade: PC2510 | Stock: Yes
ZPET250M-MMPosition: Internal | l (mm): 48 | d (mm): 25.9 | Thickness t (mm): 9.5 | Radius r (mm): 25 | Hole dia. d1 (mm): 8.6
ZPET080S-MMPosition: External | l (mm): 15 | d (mm): 6.6 | Thickness t (mm): 3.1 | Radius r (mm): 8 | Hole dia. d1 (mm): 2.9
ZPET090S-MMPosition: External | l (mm): 15.5 | d (mm): 7.4 | Thickness t (mm): 3.7 | Radius r (mm): 9 | Hole dia. d1 (mm): 3.4
ZPET100S-MM PC2510Position: External | l (mm): 15.5 | d (mm): 8.4 | Thickness t (mm): 3.8 | Radius r (mm): 10 | Hole dia. d1 (mm): 3.4 | Grade: PC2510 | Stock: Yes
ZPET110S-MMPosition: External | l (mm): 18.1 | d (mm): 9 | Thickness t (mm): 4.4 | Radius r (mm): 11 | Hole dia. d1 (mm): 4.5
ZPET125S-MM PC2510Position: External | l (mm): 20.5 | d (mm): 10.7 | Thickness t (mm): 4.5 | Radius r (mm): 12.5 | Hole dia. d1 (mm): 4.5 | Grade: PC2510 | Stock: Yes
ZPET130S-MMPosition: External | l (mm): 22.2 | d (mm): 11 | Thickness t (mm): 4.4 | Radius r (mm): 13 | Hole dia. d1 (mm): 4.5
ZPET140S-MMPosition: External | l (mm): 24.1 | d (mm): 11.2 | Thickness t (mm): 5.7 | Radius r (mm): 14 | Hole dia. d1 (mm): 5.6
ZPET160S-MM PC2510Position: External | l (mm): 26 | d (mm): 13.4 | Thickness t (mm): 6.5 | Radius r (mm): 16 | Hole dia. d1 (mm): 5.6 | Grade: PC2510 | Stock: Yes
ZPET250S-MMPosition: External | l (mm): 40 | d (mm): 20.7 | Thickness t (mm): 8.5 | Radius r (mm): 25 | Hole dia. d1 (mm): 8.6
