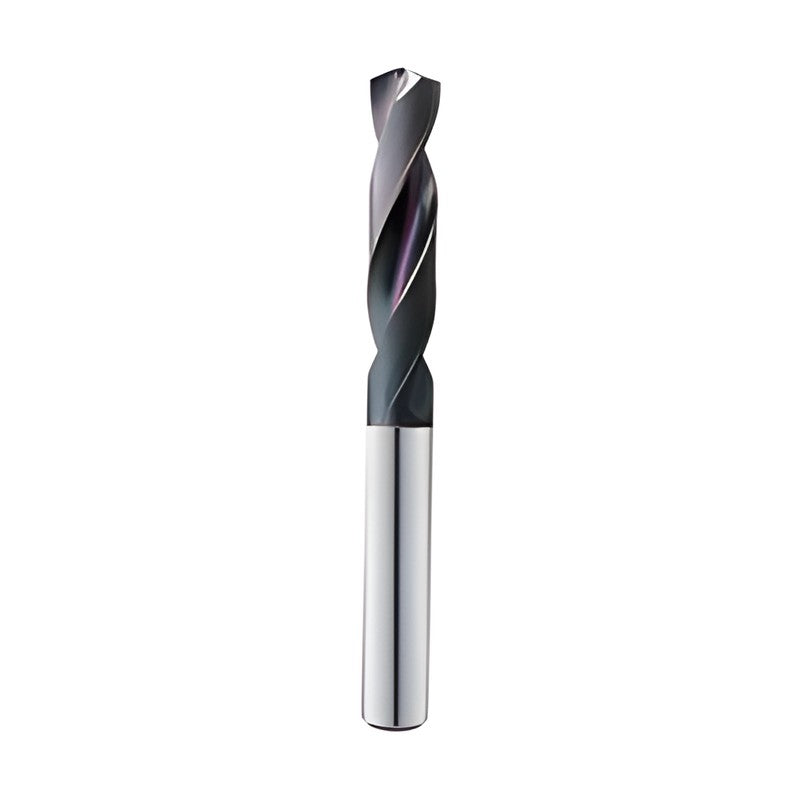

Korloy General Purpose Drill 3xD NDPG503

Korloy General Purpose Drill 3xD NDPG503

General purpose solid carbide drill, 3xD, from the W-Star economical carbide coated solid drill line.

Key features

  • Ultra fine grain carbide
  • 30° helix angle

Specifications

Helix angle 30°
Shank tolerance h6
Point angle 140°
NDPG503010 D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 38
NDPG503011 D (mm): 1.1 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503012 D (mm): 1.2 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503013 D (mm): 1.3 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503014 D (mm): 1.4 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 42
NDPG503015 D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 42
NDPG503016 D (mm): 1.6 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 42
NDPG503017 D (mm): 1.7 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 42
NDPG503018 D (mm): 1.8 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG503019 D (mm): 1.9 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG503020 D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 50
NDPG503021 D (mm): 2.1 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 50
NDPG503022 D (mm): 2.2 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 50
NDPG503023 D (mm): 2.3 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 50
NDPG503024 D (mm): 2.4 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50
NDPG503025 D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50 | Tap size: M3x0.5
NDPG503026 D (mm): 2.6 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50 | Tap size: M3x0.5
NDPG503027 D (mm): 2.7 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503028 D (mm): 2.8 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503029 D (mm): 2.9 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503030 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 55
NDPG503031 D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303175 D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG503032 D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303264 D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG503033 D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55 | Tap size: M4x0.7
NDPG503034 D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55 | Tap size: M4x0.7
NDPG503035 D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303572 D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503036 D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503037 D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503038 D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG503039 D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG503040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50304039 D (mm): 4.039 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 55
NDPG503041 D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 55
NDPG503042 D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 62 | Tap size: M5x0.8
NDPG503043 D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62 | Tap size: M5x0.8
NDPG503044 D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503045 D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503046 D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503047 D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG50304763 D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503048 D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503049 D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503050 D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62 | Tap size: M6x1.0 | Tap limit: WH1~4
NDPG503051 D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 62 | Tap size: M6x1.0 | Tap limit: WH5~6
NDPG50305159 D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503052 D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503053 D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503054 D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503055 D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG50305556 D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503056 D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503057 D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503058 D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503059 D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG50305953 D (mm): 5.953 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503061 D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 30 | L (mm): 66
NDPG503062 D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503063 D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG5030635 D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503064 D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503065 D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503066 D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503067 D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74
NDPG50306747 D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74
NDPG503068 D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG503069 D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG503070 D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG503071 D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50307144 D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503072 D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503073 D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503074 D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503075 D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG50307541 D (mm): 7.541 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503076 D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503077 D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503078 D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503079 D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG50307938 D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503081 D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 40 | L (mm): 79
NDPG503082 D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503083 D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503084 D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503085 D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.5
NDPG503086 D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.5
NDPG503087 D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG50308731 D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503088 D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.25
NDPG503089 D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.25
NDPG503090 D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.0
NDPG503091 D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.0
NDPG503092 D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503093 D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503094 D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503095 D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG50309525 D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503096 D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503097 D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503098 D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503099 D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503101 D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 47 | L (mm): 89
NDPG503102 D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG503103 D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH1~2
NDPG50310319 D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH3~4
NDPG503104 D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH5~6
NDPG503105 D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH1~4
NDPG503106 D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH5~6
NDPG503107 D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG50310716 D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG503108 D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH1~4
NDPG503109 D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH5~6
NDPG503110 D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH1~4
NDPG503111 D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH5~6
NDPG50311113 D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503112 D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503113 D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503114 D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503115 D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503116 D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503117 D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503118 D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503119 D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102 | Tap size: M14x2 | Tap limit: WH1~4
NDPG503121 D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 54 | L (mm): 102 | Tap size: M14x2 | Tap limit: WH5~6
NDPG503122 D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503123 D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503124 D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503125 D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG503126 D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG503127 D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503128 D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503129 D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503130 D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
DrillsKorloy
139 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy General Purpose Drill 3xD NDPG503

Brand Korloy·Drills

Available part numbers (139)

NDPG503010, NDPG503011, NDPG503012, NDPG503013, NDPG503014, NDPG503015, NDPG503016, NDPG503017, NDPG503018, NDPG503019 + 129 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NDPG503010D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 5 | L (mm): 38
NDPG503011D (mm): 1.1 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503012D (mm): 1.2 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503013D (mm): 1.3 | Shank d (mm): 3 | Flute length (mm): 6 | L (mm): 42
NDPG503014D (mm): 1.4 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 42
NDPG503015D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 42
NDPG503016D (mm): 1.6 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 42
NDPG503017D (mm): 1.7 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 42
NDPG503018D (mm): 1.8 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG503019D (mm): 1.9 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG503020D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 50
NDPG503021D (mm): 2.1 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 50
NDPG503022D (mm): 2.2 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 50
NDPG503023D (mm): 2.3 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 50
NDPG503024D (mm): 2.4 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50
NDPG503025D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50 | Tap size: M3x0.5
NDPG503026D (mm): 2.6 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 50 | Tap size: M3x0.5
NDPG503027D (mm): 2.7 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503028D (mm): 2.8 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503029D (mm): 2.9 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 50
NDPG503030D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 14 | L (mm): 55
NDPG503031D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303175D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG503032D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303264D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG503033D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55 | Tap size: M4x0.7
NDPG503034D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55 | Tap size: M4x0.7
NDPG503035D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 16 | L (mm): 55
NDPG50303572D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503036D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503037D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 18 | L (mm): 55
NDPG503038D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG503039D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG503040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50304039D (mm): 4.039 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 55
NDPG503041D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 55
NDPG503042D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 20 | L (mm): 62 | Tap size: M5x0.8
NDPG503043D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62 | Tap size: M5x0.8
NDPG503044D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503045D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503046D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG503047D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 22 | L (mm): 62
NDPG50304763D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503048D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503049D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62
NDPG503050D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 24 | L (mm): 62 | Tap size: M6x1.0 | Tap limit: WH1~4
NDPG503051D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 24 | L (mm): 62 | Tap size: M6x1.0 | Tap limit: WH5~6
NDPG50305159D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503052D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503053D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503054D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503055D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG50305556D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503056D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503057D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503058D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503059D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG50305953D (mm): 5.953 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 28 | L (mm): 66
NDPG503061D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 30 | L (mm): 66
NDPG503062D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503063D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG5030635D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503064D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503065D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503066D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 34 | L (mm): 74
NDPG503067D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74
NDPG50306747D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74
NDPG503068D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG503069D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG503070D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG503071D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 37 | L (mm): 74 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50307144D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503072D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503073D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503074D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503075D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG50307541D (mm): 7.541 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503076D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503077D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503078D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503079D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG50307938D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 79
NDPG503081D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 40 | L (mm): 79
NDPG503082D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503083D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503084D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503085D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.5
NDPG503086D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.5
NDPG503087D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG50308731D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84
NDPG503088D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.25
NDPG503089D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.25
NDPG503090D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.0
NDPG503091D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 43 | L (mm): 84 | Tap size: M10x1.0
NDPG503092D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503093D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503094D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503095D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG50309525D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503096D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503097D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503098D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503099D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 47 | L (mm): 89
NDPG503101D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 47 | L (mm): 89
NDPG503102D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG503103D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH1~2
NDPG50310319D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH3~4
NDPG503104D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.75 | Tap limit: WH5~6
NDPG503105D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH1~4
NDPG503106D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH5~6
NDPG503107D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG50310716D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95
NDPG503108D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH1~4
NDPG503109D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH5~6
NDPG503110D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH1~4
NDPG503111D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 51 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH5~6
NDPG50311113D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503112D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503113D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503114D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503115D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503116D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503117D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503118D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503119D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102
NDPG503120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 54 | L (mm): 102 | Tap size: M14x2 | Tap limit: WH1~4
NDPG503121D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 54 | L (mm): 102 | Tap size: M14x2 | Tap limit: WH5~6
NDPG503122D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503123D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503124D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503125D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG503126D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG503127D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503128D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503129D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102
NDPG503130D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 57 | L (mm): 102

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
