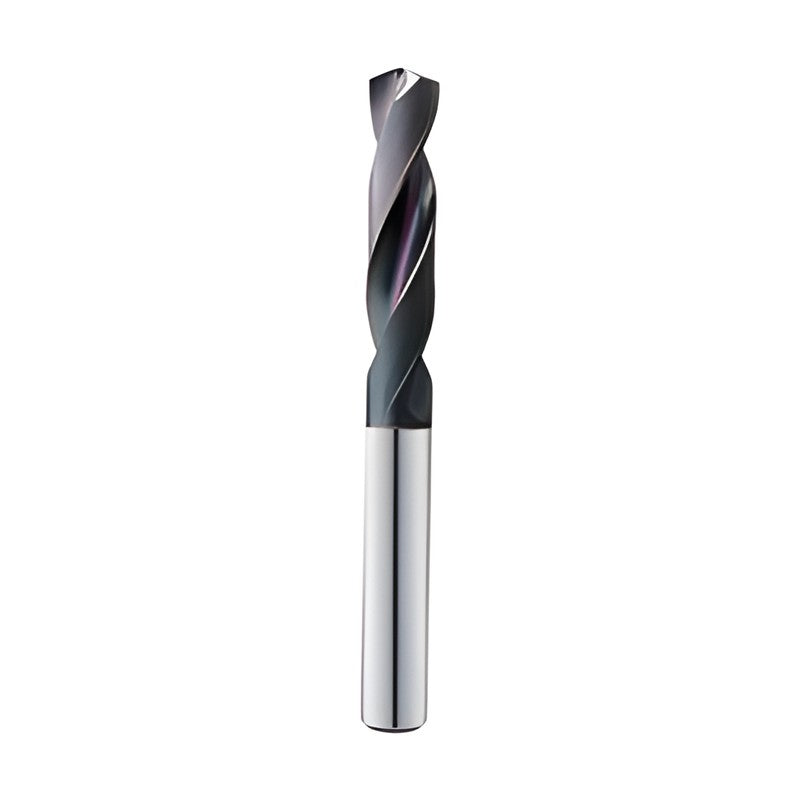

Korloy General Purpose Drill 4xD NDPG504

Korloy General Purpose Drill 4xD NDPG504

General purpose solid carbide drill, 4xD, from the W-Star economical carbide coated solid drill line.

Key features

  • Ultra fine grain carbide
  • 30° helix angle

Specifications

Helix angle 30°
Shank tolerance h6
Point angle 140°
NDPG504010 D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 38
NDPG504011 D (mm): 1.1 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG504012 D (mm): 1.2 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 42
NDPG504013 D (mm): 1.3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 42
NDPG504014 D (mm): 1.4 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 42
NDPG504015 D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 42
NDPG504016 D (mm): 1.6 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 42
NDPG504017 D (mm): 1.7 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 42
NDPG504018 D (mm): 1.8 | Shank d (mm): 3 | Flute length (mm): 13 | L (mm): 42
NDPG504019 D (mm): 1.9 | Shank d (mm): 3 | Flute length (mm): 13 | L (mm): 42
NDPG504020 D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504021 D (mm): 2.1 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504022 D (mm): 2.2 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504023 D (mm): 2.3 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504024 D (mm): 2.4 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504025 D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50 | Tap size: M3x0.5
NDPG504026 D (mm): 2.6 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50 | Tap size: M3x0.5
NDPG504027 D (mm): 2.7 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504028 D (mm): 2.8 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504029 D (mm): 2.9 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504030 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 55
NDPG504031 D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403175 D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG504032 D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403264 D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG504033 D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55 | Tap size: M3x0.7
NDPG504034 D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55 | Tap size: M4x0.7
NDPG504035 D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403572 D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504036 D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504037 D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504038 D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504039 D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG50404039 D (mm): 4.039 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 55
NDPG504041 D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 55
NDPG504042 D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504043 D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M5x0.8 | Tap limit: WH1~4
NDPG504044 D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M5x0.8 | Tap limit: WH5~6
NDPG504045 D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504046 D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504047 D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG50404763 D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504048 D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504049 D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504050 D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M6x1.0 | Tap limit: WH1~4
NDPG504051 D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 33 | L (mm): 63 | Tap size: M6x1.0 | Tap limit: WH5~6
NDPG50405159 D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504052 D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504053 D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504054 D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504055 D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG50405556 D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504056 D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504057 D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504058 D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504059 D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG50405953 D (mm): 5.953 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504061 D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 36 | L (mm): 66
NDPG504062 D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504063 D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG5040635 D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504064 D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504065 D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504066 D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504067 D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG50406747 D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504068 D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG504069 D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG504070 D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG504071 D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50407144 D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504072 D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504073 D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504074 D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504075 D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG50407541 D (mm): 7.541 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504076 D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504077 D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504078 D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504079 D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG50407938 D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504081 D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 46 | L (mm): 80
NDPG504082 D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504083 D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504084 D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504085 D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.5
NDPG504086 D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.5
NDPG504087 D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG50408731 D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504088 D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.25
NDPG504089 D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.25
NDPG504090 D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.0
NDPG504091 D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.0
NDPG504092 D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504093 D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504094 D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504095 D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG50409525 D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504096 D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504097 D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504098 D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504099 D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504101 D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 55 | L (mm): 90
NDPG504102 D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG504103 D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG50410319 D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG504104 D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG504105 D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH1~4
NDPG504106 D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH5~6
NDPG504107 D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG50410716 D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG504108 D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH1~4
NDPG504109 D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH5~6
NDPG504110 D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH1~4
NDPG504111 D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH5~6
NDPG50411113 D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504112 D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504113 D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504114 D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504115 D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504116 D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504117 D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504118 D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504119 D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x2.0 | Tap limit: WH1~4
NDPG504121 D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x2.0 | Tap limit: WH5~6
NDPG504122 D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504123 D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504124 D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504125 D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG504126 D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG504127 D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504128 D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504129 D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504130 D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504131 D (mm): 13.1 | Shank d (mm): 14 | Flute length (mm): 63 | L (mm): 102
NDPG504132 D (mm): 13.2 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504133 D (mm): 13.3 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504134 D (mm): 13.4 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG50413494 D (mm): 13.494 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504135 D (mm): 13.5 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504136 D (mm): 13.6 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504137 D (mm): 13.7 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504138 D (mm): 13.8 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504139 D (mm): 13.9 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107 | Tap size: M16x2.0
NDPG504141 D (mm): 14.1 | Shank d (mm): 15 | Flute length (mm): 65 | L (mm): 107 | Tap size: M16x2.0
NDPG504142 D (mm): 14.2 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504143 D (mm): 14.3 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504144 D (mm): 14.4 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504145 D (mm): 14.5 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111 | Tap size: M16x1.5
NDPG504146 D (mm): 14.6 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111 | Tap size: M16x1.5
NDPG504147 D (mm): 14.7 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504148 D (mm): 14.8 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504149 D (mm): 14.9 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504150 D (mm): 15 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504151 D (mm): 15.1 | Shank d (mm): 16 | Flute length (mm): 67 | L (mm): 111
NDPG504152 D (mm): 15.2 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504154 D (mm): 15.4 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504155 D (mm): 15.5 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115 | Tap size: M18x2.5
NDPG504156 D (mm): 15.6 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115 | Tap size: M18x2.5
NDPG504157 D (mm): 15.7 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504158 D (mm): 15.8 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG50415875 D (mm): 15.875 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504161 D (mm): 16.1 | Shank d (mm): 17 | Flute length (mm): 69 | L (mm): 115
NDPG504163 D (mm): 16.3 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504165 D (mm): 16.5 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119 | Tap size: M18x1.5 | Tap limit: WH1~6
NDPG50416669 D (mm): 16.669 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504170 D (mm): 17 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504171 D (mm): 17.1 | Shank d (mm): 18 | Flute length (mm): 71 | L (mm): 119
NDPG504172 D (mm): 17.2 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504175 D (mm): 17.5 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123 | Tap size: M20x2.5 | Tap limit: WH1~6
NDPG504177 D (mm): 17.7 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504178 D (mm): 17.8 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504181 D (mm): 18.1 | Shank d (mm): 19 | Flute length (mm): 74 | L (mm): 123
NDPG504182 D (mm): 18.2 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127
NDPG504185 D (mm): 18.5 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127 | Tap size: M20x1.5 | Tap limit: WH1~6
NDPG504190 D (mm): 19 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127
NDPG504191 D (mm): 19.1 | Shank d (mm): 20 | Flute length (mm): 76 | L (mm): 127
NDPG504195 D (mm): 19.5 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131 | Tap size: M22x2.5 | Tap limit: WH1~6
NDPG504197 D (mm): 19.7 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131
NDPG504200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131
DrillsKorloy
188 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy General Purpose Drill 4xD NDPG504

Brand Korloy·Drills

Available part numbers (188)

NDPG504010, NDPG504011, NDPG504012, NDPG504013, NDPG504014, NDPG504015, NDPG504016, NDPG504017, NDPG504018, NDPG504019 + 178 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NDPG504010D (mm): 1 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 38
NDPG504011D (mm): 1.1 | Shank d (mm): 3 | Flute length (mm): 9 | L (mm): 42
NDPG504012D (mm): 1.2 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 42
NDPG504013D (mm): 1.3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 42
NDPG504014D (mm): 1.4 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 42
NDPG504015D (mm): 1.5 | Shank d (mm): 3 | Flute length (mm): 11 | L (mm): 42
NDPG504016D (mm): 1.6 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 42
NDPG504017D (mm): 1.7 | Shank d (mm): 3 | Flute length (mm): 12 | L (mm): 42
NDPG504018D (mm): 1.8 | Shank d (mm): 3 | Flute length (mm): 13 | L (mm): 42
NDPG504019D (mm): 1.9 | Shank d (mm): 3 | Flute length (mm): 13 | L (mm): 42
NDPG504020D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504021D (mm): 2.1 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504022D (mm): 2.2 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504023D (mm): 2.3 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504024D (mm): 2.4 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504025D (mm): 2.5 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50 | Tap size: M3x0.5
NDPG504026D (mm): 2.6 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50 | Tap size: M3x0.5
NDPG504027D (mm): 2.7 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504028D (mm): 2.8 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504029D (mm): 2.9 | Shank d (mm): 3 | Flute length (mm): 18 | L (mm): 50
NDPG504030D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 55
NDPG504031D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403175D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG504032D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403264D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG504033D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55 | Tap size: M3x0.7
NDPG504034D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55 | Tap size: M4x0.7
NDPG504035D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 55
NDPG50403572D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504036D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504037D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504038D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504039D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG504040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 25 | L (mm): 55
NDPG50404039D (mm): 4.039 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 55
NDPG504041D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 25 | L (mm): 55
NDPG504042D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504043D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M5x0.8 | Tap limit: WH1~4
NDPG504044D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M5x0.8 | Tap limit: WH5~6
NDPG504045D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504046D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504047D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG50404763D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504048D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504049D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63
NDPG504050D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 33 | L (mm): 63 | Tap size: M6x1.0 | Tap limit: WH1~4
NDPG504051D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 33 | L (mm): 63 | Tap size: M6x1.0 | Tap limit: WH5~6
NDPG50405159D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504052D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504053D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504054D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504055D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG50405556D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504056D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504057D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504058D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504059D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG50405953D (mm): 5.953 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 66
NDPG504061D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 36 | L (mm): 66
NDPG504062D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504063D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG5040635D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504064D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504065D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504066D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504067D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG50406747D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75
NDPG504068D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG504069D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG504070D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG504071D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 42 | L (mm): 75 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50407144D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504072D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504073D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504074D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504075D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG50407541D (mm): 7.541 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504076D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504077D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504078D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504079D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG50407938D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 80
NDPG504081D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 46 | L (mm): 80
NDPG504082D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504083D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504084D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504085D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.5
NDPG504086D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.5
NDPG504087D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG50408731D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85
NDPG504088D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.25
NDPG504089D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.25
NDPG504090D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.0
NDPG504091D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 50 | L (mm): 85 | Tap size: M10x1.0
NDPG504092D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504093D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504094D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504095D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG50409525D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504096D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504097D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504098D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504099D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 90
NDPG504101D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 55 | L (mm): 90
NDPG504102D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG504103D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG50410319D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG504104D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.75
NDPG504105D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH1~4
NDPG504106D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.5 | Tap limit: WH5~6
NDPG504107D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG50410716D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95
NDPG504108D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH1~4
NDPG504109D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.25 | Tap limit: WH5~6
NDPG504110D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH1~4
NDPG504111D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 57 | L (mm): 95 | Tap size: M12x1.0 | Tap limit: WH5~6
NDPG50411113D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504112D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504113D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504114D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504115D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504116D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504117D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504118D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504119D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102
NDPG504120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x2.0 | Tap limit: WH1~4
NDPG504121D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x2.0 | Tap limit: WH5~6
NDPG504122D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504123D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504124D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504125D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG504126D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG504127D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504128D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504129D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504130D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 63 | L (mm): 102
NDPG504131D (mm): 13.1 | Shank d (mm): 14 | Flute length (mm): 63 | L (mm): 102
NDPG504132D (mm): 13.2 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504133D (mm): 13.3 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504134D (mm): 13.4 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG50413494D (mm): 13.494 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504135D (mm): 13.5 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504136D (mm): 13.6 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504137D (mm): 13.7 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504138D (mm): 13.8 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504139D (mm): 13.9 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107
NDPG504140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 65 | L (mm): 107 | Tap size: M16x2.0
NDPG504141D (mm): 14.1 | Shank d (mm): 15 | Flute length (mm): 65 | L (mm): 107 | Tap size: M16x2.0
NDPG504142D (mm): 14.2 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504143D (mm): 14.3 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504144D (mm): 14.4 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504145D (mm): 14.5 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111 | Tap size: M16x1.5
NDPG504146D (mm): 14.6 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111 | Tap size: M16x1.5
NDPG504147D (mm): 14.7 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504148D (mm): 14.8 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504149D (mm): 14.9 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504150D (mm): 15 | Shank d (mm): 15 | Flute length (mm): 67 | L (mm): 111
NDPG504151D (mm): 15.1 | Shank d (mm): 16 | Flute length (mm): 67 | L (mm): 111
NDPG504152D (mm): 15.2 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504154D (mm): 15.4 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504155D (mm): 15.5 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115 | Tap size: M18x2.5
NDPG504156D (mm): 15.6 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115 | Tap size: M18x2.5
NDPG504157D (mm): 15.7 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504158D (mm): 15.8 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG50415875D (mm): 15.875 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 69 | L (mm): 115
NDPG504161D (mm): 16.1 | Shank d (mm): 17 | Flute length (mm): 69 | L (mm): 115
NDPG504163D (mm): 16.3 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504165D (mm): 16.5 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119 | Tap size: M18x1.5 | Tap limit: WH1~6
NDPG50416669D (mm): 16.669 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504170D (mm): 17 | Shank d (mm): 17 | Flute length (mm): 71 | L (mm): 119
NDPG504171D (mm): 17.1 | Shank d (mm): 18 | Flute length (mm): 71 | L (mm): 119
NDPG504172D (mm): 17.2 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504175D (mm): 17.5 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123 | Tap size: M20x2.5 | Tap limit: WH1~6
NDPG504177D (mm): 17.7 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504178D (mm): 17.8 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 74 | L (mm): 123
NDPG504181D (mm): 18.1 | Shank d (mm): 19 | Flute length (mm): 74 | L (mm): 123
NDPG504182D (mm): 18.2 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127
NDPG504185D (mm): 18.5 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127 | Tap size: M20x1.5 | Tap limit: WH1~6
NDPG504190D (mm): 19 | Shank d (mm): 19 | Flute length (mm): 76 | L (mm): 127
NDPG504191D (mm): 19.1 | Shank d (mm): 20 | Flute length (mm): 76 | L (mm): 127
NDPG504195D (mm): 19.5 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131 | Tap size: M22x2.5 | Tap limit: WH1~6
NDPG504197D (mm): 19.7 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131
NDPG504200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 80 | L (mm): 131

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
