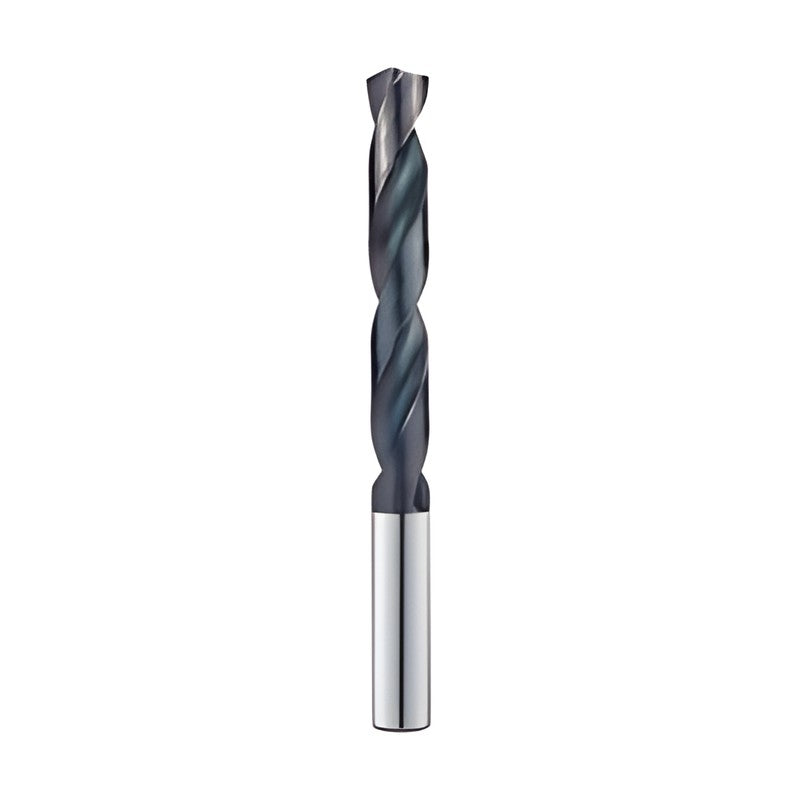

Korloy General Purpose Drill 7xD NDPG507

Korloy General Purpose Drill 7xD NDPG507

General purpose solid carbide drill, 7xD, from the W-Star economical carbide coated solid drill line.

Key features

  • Ultra fine grain carbide
  • 30° helix angle

Specifications

Helix angle 30°
Shank tolerance h6
Point angle 140°
NDPG507030 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 45 | L (mm): 80
NDPG507031 D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703175 D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507032 D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703264 D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507033 D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80 | Tap size: M4x0.7
NDPG507034 D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80 | Tap size: M4x0.7
NDPG507035 D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703572 D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507036 D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507037 D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507038 D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507039 D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507041 D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507042 D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M5x0.8
NDPG507043 D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M5x0.8
NDPG507044 D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507045 D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507046 D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507047 D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG50704763 D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507048 D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507049 D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507050 D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M6x1.0
NDPG507051 D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 45 | L (mm): 80 | Tap size: M6x1.0
NDPG50705159 D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507052 D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507053 D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507054 D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507055 D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG50705556 D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507056 D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507057 D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507058 D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507059 D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507061 D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 50 | L (mm): 83
NDPG507062 D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507063 D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG5070635 D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507064 D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507065 D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507066 D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507067 D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG50706747 D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507068 D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG507069 D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG507070 D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG507071 D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50707144 D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507072 D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507073 D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507074 D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507075 D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507076 D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507077 D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507078 D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507079 D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG50707938 D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507081 D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 58 | L (mm): 90
NDPG507082 D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507083 D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507084 D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507085 D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.5 | Tap limit: WH1~4
NDPG507086 D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.5 | Tap limit: WH5~6
NDPG507087 D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG50708731 D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507088 D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.25 | Tap limit: WH1~4
NDPG507089 D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.25
NDPG507090 D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.0
NDPG507091 D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.0
NDPG507092 D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507093 D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507094 D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507095 D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG50709525 D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507096 D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507097 D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507098 D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507099 D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507101 D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 68 | L (mm): 105
NDPG507102 D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG507103 D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG50710319 D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG507104 D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG507105 D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.5
NDPG507106 D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.5
NDPG507107 D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG50710716 D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG507108 D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.25
NDPG507109 D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.25
NDPG507110 D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.0
NDPG507111 D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.0
NDPG50711113 D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507112 D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507113 D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507114 D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507115 D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507116 D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507117 D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507118 D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507119 D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120 | Tap size: M14x2.0 | Tap limit: WH1~4
NDPG507121 D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 80 | L (mm): 120 | Tap size: M14x2.0 | Tap limit: WH5~6
NDPG507122 D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507123 D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507124 D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507125 D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG507126 D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG507127 D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507128 D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507129 D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507130 D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507131 D (mm): 13.1 | Shank d (mm): 14 | Flute length (mm): 90 | L (mm): 137
NDPG507133 D (mm): 13.3 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507134 D (mm): 13.4 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG50713494 D (mm): 13.494 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507135 D (mm): 13.5 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507136 D (mm): 13.6 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507137 D (mm): 13.7 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507138 D (mm): 13.8 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG50713891 D (mm): 13.891 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507139 D (mm): 13.9 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147 | Tap size: M16x2.0 | Tap limit: WH1~4
NDPG507141 D (mm): 14.1 | Shank d (mm): 15 | Flute length (mm): 96 | L (mm): 147 | Tap size: M16x2.0 | Tap limit: WH5~6
NDPG507142 D (mm): 14.2 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG50714288 D (mm): 14.288 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507143 D (mm): 14.3 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507145 D (mm): 14.5 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153 | Tap size: M16x1.5 | Tap limit: WH1~4
NDPG507146 D (mm): 14.6 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153 | Tap size: M16x1.5 | Tap limit: WH5~6
NDPG507147 D (mm): 14.7 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507148 D (mm): 14.8 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507149 D (mm): 14.9 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507150 D (mm): 15 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507151 D (mm): 15.1 | Shank d (mm): 16 | Flute length (mm): 100 | L (mm): 153
NDPG507154 D (mm): 15.4 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507155 D (mm): 15.5 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x2.5 | Tap limit: WH1~4
NDPG507156 D (mm): 15.6 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x2.5 | Tap limit: WH5~6
NDPG507157 D (mm): 15.7 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507158 D (mm): 15.8 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG50715875 D (mm): 15.875 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507161 D (mm): 16.1 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507163 D (mm): 16.3 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507165 D (mm): 16.5 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x1.5 | Tap limit: WH1~6
NDPG50716669 D (mm): 16.669 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507170 D (mm): 17 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507171 D (mm): 17.1 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507172 D (mm): 17.2 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG50717463 D (mm): 17.463 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507175 D (mm): 17.5 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160 | Tap size: M20x2.5 | Tap limit: WH1~6
NDPG507177 D (mm): 17.7 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507178 D (mm): 17.8 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507182 D (mm): 18.2 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160
NDPG507185 D (mm): 18.5 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160 | Tap size: M20x1.5 | Tap limit: WH1~6
NDPG507190 D (mm): 19 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160
NDPG507195 D (mm): 19.5 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160 | Tap size: M22x2.5 | Tap limit: WH1~6
NDPG507197 D (mm): 19.7 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160
NDPG507200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160
DrillsKorloy
163 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy General Purpose Drill 7xD NDPG507

Brand Korloy·Drills

Available part numbers (163)

NDPG507030, NDPG507031, NDPG50703175, NDPG507032, NDPG50703264, NDPG507033, NDPG507034, NDPG507035, NDPG50703572, NDPG507036 + 153 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NDPG507030D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 45 | L (mm): 80
NDPG507031D (mm): 3.1 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703175D (mm): 3.175 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507032D (mm): 3.2 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703264D (mm): 3.264 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507033D (mm): 3.3 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80 | Tap size: M4x0.7
NDPG507034D (mm): 3.4 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80 | Tap size: M4x0.7
NDPG507035D (mm): 3.5 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG50703572D (mm): 3.572 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507036D (mm): 3.6 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507037D (mm): 3.7 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507038D (mm): 3.8 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507039D (mm): 3.9 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 45 | L (mm): 80
NDPG507041D (mm): 4.1 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507042D (mm): 4.2 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M5x0.8
NDPG507043D (mm): 4.3 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M5x0.8
NDPG507044D (mm): 4.4 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507045D (mm): 4.5 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507046D (mm): 4.6 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507047D (mm): 4.7 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG50704763D (mm): 4.763 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507048D (mm): 4.8 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507049D (mm): 4.9 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80
NDPG507050D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 45 | L (mm): 80 | Tap size: M6x1.0
NDPG507051D (mm): 5.1 | Shank d (mm): 6 | Flute length (mm): 45 | L (mm): 80 | Tap size: M6x1.0
NDPG50705159D (mm): 5.159 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507052D (mm): 5.2 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507053D (mm): 5.3 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507054D (mm): 5.4 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507055D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG50705556D (mm): 5.556 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507056D (mm): 5.6 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507057D (mm): 5.7 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507058D (mm): 5.8 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507059D (mm): 5.9 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 50 | L (mm): 83
NDPG507061D (mm): 6.1 | Shank d (mm): 7 | Flute length (mm): 50 | L (mm): 83
NDPG507062D (mm): 6.2 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507063D (mm): 6.3 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG5070635D (mm): 6.35 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507064D (mm): 6.4 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507065D (mm): 6.5 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507066D (mm): 6.6 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507067D (mm): 6.7 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG50706747D (mm): 6.747 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85
NDPG507068D (mm): 6.8 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.25 | Tap limit: WH1~4
NDPG507069D (mm): 6.9 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.25 | Tap limit: WH5~6
NDPG507070D (mm): 7 | Shank d (mm): 7 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.0 | Tap limit: WH1~4
NDPG507071D (mm): 7.1 | Shank d (mm): 8 | Flute length (mm): 53 | L (mm): 85 | Tap size: M8x1.0 | Tap limit: WH5~6
NDPG50707144D (mm): 7.144 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507072D (mm): 7.2 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507073D (mm): 7.3 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507074D (mm): 7.4 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507075D (mm): 7.5 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507076D (mm): 7.6 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507077D (mm): 7.7 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507078D (mm): 7.8 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507079D (mm): 7.9 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG50707938D (mm): 7.938 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 58 | L (mm): 90
NDPG507081D (mm): 8.1 | Shank d (mm): 9 | Flute length (mm): 58 | L (mm): 90
NDPG507082D (mm): 8.2 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507083D (mm): 8.3 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507084D (mm): 8.4 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507085D (mm): 8.5 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.5 | Tap limit: WH1~4
NDPG507086D (mm): 8.6 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.5 | Tap limit: WH5~6
NDPG507087D (mm): 8.7 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG50708731D (mm): 8.731 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98
NDPG507088D (mm): 8.8 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.25 | Tap limit: WH1~4
NDPG507089D (mm): 8.9 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.25
NDPG507090D (mm): 9 | Shank d (mm): 9 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.0
NDPG507091D (mm): 9.1 | Shank d (mm): 10 | Flute length (mm): 64 | L (mm): 98 | Tap size: M10x1.0
NDPG507092D (mm): 9.2 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507093D (mm): 9.3 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507094D (mm): 9.4 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507095D (mm): 9.5 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG50709525D (mm): 9.525 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507096D (mm): 9.6 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507097D (mm): 9.7 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507098D (mm): 9.8 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507099D (mm): 9.9 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 68 | L (mm): 105
NDPG507101D (mm): 10.1 | Shank d (mm): 11 | Flute length (mm): 68 | L (mm): 105
NDPG507102D (mm): 10.2 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG507103D (mm): 10.3 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG50710319D (mm): 10.319 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG507104D (mm): 10.4 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.75
NDPG507105D (mm): 10.5 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.5
NDPG507106D (mm): 10.6 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.5
NDPG507107D (mm): 10.7 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG50710716D (mm): 10.716 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110
NDPG507108D (mm): 10.8 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.25
NDPG507109D (mm): 10.9 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.25
NDPG507110D (mm): 11 | Shank d (mm): 11 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.0
NDPG507111D (mm): 11.1 | Shank d (mm): 12 | Flute length (mm): 73 | L (mm): 110 | Tap size: M12x1.0
NDPG50711113D (mm): 11.113 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507112D (mm): 11.2 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507113D (mm): 11.3 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507114D (mm): 11.4 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507115D (mm): 11.5 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507116D (mm): 11.6 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507117D (mm): 11.7 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507118D (mm): 11.8 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507119D (mm): 11.9 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120
NDPG507120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 80 | L (mm): 120 | Tap size: M14x2.0 | Tap limit: WH1~4
NDPG507121D (mm): 12.1 | Shank d (mm): 13 | Flute length (mm): 80 | L (mm): 120 | Tap size: M14x2.0 | Tap limit: WH5~6
NDPG507122D (mm): 12.2 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507123D (mm): 12.3 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507124D (mm): 12.4 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507125D (mm): 12.5 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137 | Tap size: M14x1.5 | Tap limit: WH1~4
NDPG507126D (mm): 12.6 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137 | Tap size: M14x1.5 | Tap limit: WH5~6
NDPG507127D (mm): 12.7 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507128D (mm): 12.8 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507129D (mm): 12.9 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507130D (mm): 13 | Shank d (mm): 13 | Flute length (mm): 90 | L (mm): 137
NDPG507131D (mm): 13.1 | Shank d (mm): 14 | Flute length (mm): 90 | L (mm): 137
NDPG507133D (mm): 13.3 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507134D (mm): 13.4 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG50713494D (mm): 13.494 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507135D (mm): 13.5 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507136D (mm): 13.6 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507137D (mm): 13.7 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507138D (mm): 13.8 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG50713891D (mm): 13.891 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507139D (mm): 13.9 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147
NDPG507140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 96 | L (mm): 147 | Tap size: M16x2.0 | Tap limit: WH1~4
NDPG507141D (mm): 14.1 | Shank d (mm): 15 | Flute length (mm): 96 | L (mm): 147 | Tap size: M16x2.0 | Tap limit: WH5~6
NDPG507142D (mm): 14.2 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG50714288D (mm): 14.288 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507143D (mm): 14.3 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507145D (mm): 14.5 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153 | Tap size: M16x1.5 | Tap limit: WH1~4
NDPG507146D (mm): 14.6 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153 | Tap size: M16x1.5 | Tap limit: WH5~6
NDPG507147D (mm): 14.7 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507148D (mm): 14.8 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507149D (mm): 14.9 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507150D (mm): 15 | Shank d (mm): 15 | Flute length (mm): 100 | L (mm): 153
NDPG507151D (mm): 15.1 | Shank d (mm): 16 | Flute length (mm): 100 | L (mm): 153
NDPG507154D (mm): 15.4 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507155D (mm): 15.5 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x2.5 | Tap limit: WH1~4
NDPG507156D (mm): 15.6 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x2.5 | Tap limit: WH5~6
NDPG507157D (mm): 15.7 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507158D (mm): 15.8 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG50715875D (mm): 15.875 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 112 | L (mm): 160
NDPG507161D (mm): 16.1 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507163D (mm): 16.3 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507165D (mm): 16.5 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160 | Tap size: M18x1.5 | Tap limit: WH1~6
NDPG50716669D (mm): 16.669 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507170D (mm): 17 | Shank d (mm): 17 | Flute length (mm): 112 | L (mm): 160
NDPG507171D (mm): 17.1 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507172D (mm): 17.2 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG50717463D (mm): 17.463 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507175D (mm): 17.5 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160 | Tap size: M20x2.5 | Tap limit: WH1~6
NDPG507177D (mm): 17.7 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507178D (mm): 17.8 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 112 | L (mm): 160
NDPG507182D (mm): 18.2 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160
NDPG507185D (mm): 18.5 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160 | Tap size: M20x1.5 | Tap limit: WH1~6
NDPG507190D (mm): 19 | Shank d (mm): 19 | Flute length (mm): 112 | L (mm): 160
NDPG507195D (mm): 19.5 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160 | Tap size: M22x2.5 | Tap limit: WH1~6
NDPG507197D (mm): 19.7 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160
NDPG507200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 112 | L (mm): 160

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
