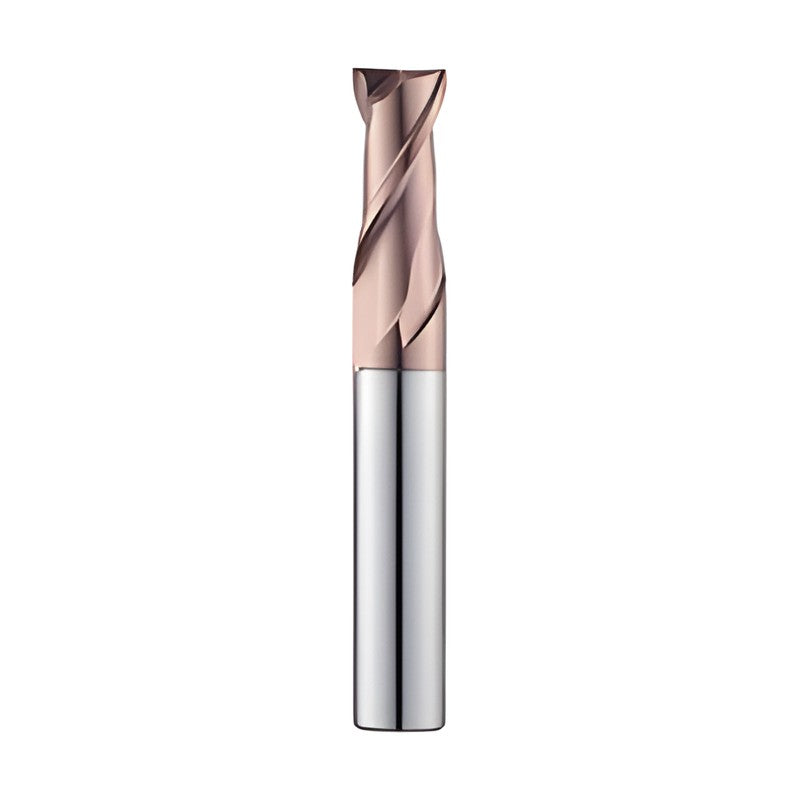

Korloy H-Star 2 Flute Flat End Mill ESE712

Korloy H-Star 2 Flute Flat End Mill ESE712

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 35°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 35°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESE712010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE712010-02 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
ESE712010-02S4 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2 | L (mm): 40
ESE712010-04 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE712012 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE712015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE712015S4 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 40
ESE712015-06 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE712015-08 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
ESE712020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
ESE712020S4 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 40
ESE712020-08 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
ESE712020-10 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
ESE712025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE712025S4 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 40
ESE712030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESE712030S4 ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 45
ESE712030-10 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
ESE712030-12 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
ESE712035 ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE712040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE712040S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESE712040-12 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
ESE712040-16 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
ESE712045 ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 45
ESE712050 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712055 ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712060-15 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
ESE712065 ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 60
ESE712070 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
ESE712080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 60
ESE712100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE712100-25 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 70
ESE712120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE712120-30 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 75
End MillsKorloy
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 2 Flute Flat End Mill ESE712

Brand Korloy·End Mills

Available part numbers (36)

ESE712010, ESE712010-02, ESE712010-02S4, ESE712010-04, ESE712012, ESE712015, ESE712015S4, ESE712015-06, ESE712015-08, ESE712020 + 26 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESE712010ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE712010-02ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2 | L (mm): 40
ESE712010-02S4ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2 | L (mm): 40
ESE712010-04ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE712012ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE712015ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE712015S4ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 40
ESE712015-06ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE712015-08ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
ESE712020ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
ESE712020S4ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 40
ESE712020-08ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 40
ESE712020-10ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
ESE712025ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE712025S4ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 40
ESE712030ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESE712030S4ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 45
ESE712030-10ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 50
ESE712030-12ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
ESE712035ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE712040ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE712040S4ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESE712040-12ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 50
ESE712040-16ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
ESE712045ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 45
ESE712050ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712055ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE712060-15ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
ESE712065ØD (mm): 6.5 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 60
ESE712070ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
ESE712080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 60
ESE712100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE712100-25ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 70
ESE712120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE712120-30ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 75
