• Korloy H-Star 2 Flute Long Neck Type Radius End Mill ESLNR
1 1

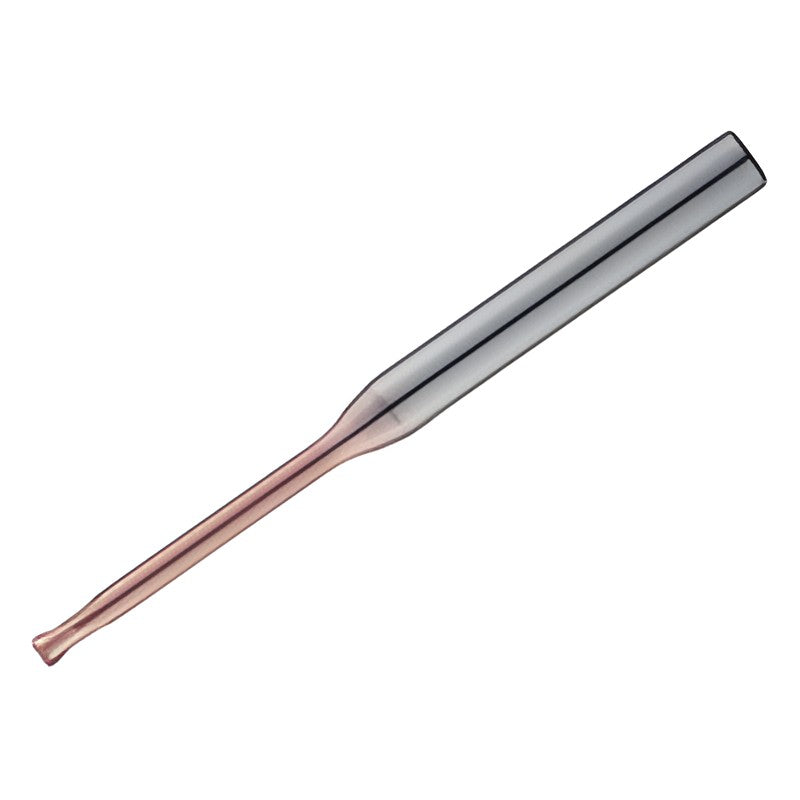

Korloy H-Star 2 Flute Long Neck Type Radius End Mill ESLNR

Korloy H-Star 2 Flute Long Neck Type Radius End Mill ESLNR

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.01 (All sizes)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance All sizes: 0~-0.012mm
Shank tolerance h5
Radius tolerance ±0.01 (All sizes)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESLNR2002-0.5-005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.5 | D3 (mm): 0.17 | θ (deg): 11.4 | L (mm): 50 | Effective length at 0.5° (mm): 0.9 | Effective length at 1° (mm): 1 | Effective length at 1.5° (mm): 1 | Effective length at 2° (mm): 1.1 | Effective length at 3° (mm): 12
ESLNR2002-1-005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | D3 (mm): 0.17 | θ (deg): 10.9 | L (mm): 50 | Effective length at 0.5° (mm): 1.6 | Effective length at 1° (mm): 1.7 | Effective length at 1.5° (mm): 1.9 | Effective length at 2° (mm): 2 | Effective length at 3° (mm): 2.3
ESLNR2002-1.5-005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1.5 | D3 (mm): 0.17 | θ (deg): 10.3 | L (mm): 50 | Effective length at 0.5° (mm): 2.1 | Effective length at 1° (mm): 2.3 | Effective length at 1.5° (mm): 2.5 | Effective length at 2° (mm): 2.7 | Effective length at 3° (mm): 3
ESLNR2002-2-005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 2 | D3 (mm): 0.17 | θ (deg): 9.9 | L (mm): 50 | Effective length at 0.5° (mm): 2.8 | Effective length at 1° (mm): 3.1 | Effective length at 1.5° (mm): 3.4 | Effective length at 2° (mm): 3.6 | Effective length at 3° (mm): 4.1
ESLNR2003-1-005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 1 | D3 (mm): 0.27 | θ (deg): 10.8 | L (mm): 50 | Effective length at 0.5° (mm): 1.4 | Effective length at 1° (mm): 1.5 | Effective length at 1.5° (mm): 1.6 | Effective length at 2° (mm): 1.7 | Effective length at 3° (mm): 1.9
ESLNR2003-1.5-005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 1.5 | D3 (mm): 0.27 | θ (deg): 10.3 | L (mm): 50 | Effective length at 0.5° (mm): 2.1 | Effective length at 1° (mm): 2.3 | Effective length at 1.5° (mm): 2.5 | Effective length at 2° (mm): 2.7 | Effective length at 3° (mm): 3
ESLNR2003-2.5-005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 2.5 | D3 (mm): 0.27 | θ (deg): 9.8 | L (mm): 50 | Effective length at 0.5° (mm): 2.7 | Effective length at 1° (mm): 2.9 | Effective length at 1.5° (mm): 3.1 | Effective length at 2° (mm): 3.3 | Effective length at 3° (mm): 3.6
ESLNR2003-2-005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 2 | D3 (mm): 0.27 | θ (deg): 9.4 | L (mm): 50 | Effective length at 0.5° (mm): 3.2 | Effective length at 1° (mm): 3.5 | Effective length at 1.5° (mm): 3.7 | Effective length at 2° (mm): 3.9 | Effective length at 3° (mm): 4.3
ESLNR2003-3-005 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 3 | D3 (mm): 0.27 | θ (deg): 9 | L (mm): 50 | Effective length at 0.5° (mm): 3.9 | Effective length at 1° (mm): 4.3 | Effective length at 1.5° (mm): 4.6 | Effective length at 2° (mm): 4.9 | Effective length at 3° (mm): 5.4
ESLNR2004-1-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | D3 (mm): 0.37 | θ (deg): 10.8 | L (mm): 50 | Effective length at 0.5° (mm): 1.4 | Effective length at 1° (mm): 1.5 | Effective length at 1.5° (mm): 1.6 | Effective length at 2° (mm): 1.7 | Effective length at 3° (mm): 1.9
ESLNR2004-1.5-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | D3 (mm): 0.37 | θ (deg): 10.3 | L (mm): 50 | Effective length at 0.5° (mm): 2 | Effective length at 1° (mm): 2.1 | Effective length at 1.5° (mm): 2.2 | Effective length at 2° (mm): 2.3 | Effective length at 3° (mm): 2.5
ESLNR2004-2-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | D3 (mm): 0.37 | θ (deg): 9.8 | L (mm): 50 | Effective length at 0.5° (mm): 2.7 | Effective length at 1° (mm): 2.9 | Effective length at 1.5° (mm): 3.1 | Effective length at 2° (mm): 3.3 | Effective length at 3° (mm): 3.6
ESLNR2004-2.5-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2.5 | D3 (mm): 0.37 | θ (deg): 9.4 | L (mm): 50 | Effective length at 0.5° (mm): 3.2 | Effective length at 1° (mm): 3.5 | Effective length at 1.5° (mm): 3.7 | Effective length at 2° (mm): 3.9 | Effective length at 3° (mm): 4.3
ESLNR2004-3-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | D3 (mm): 0.37 | θ (deg): 9 | L (mm): 50 | Effective length at 0.5° (mm): 3.8 | Effective length at 1° (mm): 4 | Effective length at 1.5° (mm): 4.3 | Effective length at 2° (mm): 4.5 | Effective length at 3° (mm): 4.9
ESLNR2004-3.5-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3.5 | D3 (mm): 0.37 | θ (deg): 8.6 | L (mm): 50 | Effective length at 0.5° (mm): 4.3 | Effective length at 1° (mm): 4.6 | Effective length at 1.5° (mm): 4.9 | Effective length at 2° (mm): 5.1 | Effective length at 3° (mm): 5.5
ESLNR2004-4-005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | D3 (mm): 0.37 | θ (deg): 8.3 | L (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.8 | Effective length at 2° (mm): 6.1 | Effective length at 3° (mm): 6.6
ESLNR2004-2-01 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | D3 (mm): 0.37 | θ (deg): 9.8 | L (mm): 50 | Effective length at 0.5° (mm): 2.7 | Effective length at 1° (mm): 2.9 | Effective length at 1.5° (mm): 3.1 | Effective length at 2° (mm): 3.3 | Effective length at 3° (mm): 3.6
ESLNR2004-3-01 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | D3 (mm): 0.37 | θ (deg): 9 | L (mm): 50 | Effective length at 0.5° (mm): 3.8 | Effective length at 1° (mm): 4 | Effective length at 1.5° (mm): 4.3 | Effective length at 2° (mm): 4.5 | Effective length at 3° (mm): 4.9
ESLNR2004-4-01 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | D3 (mm): 0.37 | θ (deg): 8.3 | L (mm): 50 | Effective length at 0.5° (mm): 5 | Effective length at 1° (mm): 5.4 | Effective length at 1.5° (mm): 5.8 | Effective length at 2° (mm): 6.1 | Effective length at 3° (mm): 6.6
ESLNR2005-1-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 1 | D3 (mm): 0.47 | θ (deg): 10.8 | L (mm): 50 | Effective length at 0.5° (mm): 1.4 | Effective length at 1° (mm): 1.5 | Effective length at 1.5° (mm): 1.6 | Effective length at 2° (mm): 1.7 | Effective length at 3° (mm): 1.9
ESLNR2005-2-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 2 | D3 (mm): 0.47 | θ (deg): 9.7 | L (mm): 50 | Effective length at 0.5° (mm): 2.5 | Effective length at 1° (mm): 2.6 | Effective length at 1.5° (mm): 2.8 | Effective length at 2° (mm): 2.9 | Effective length at 3° (mm): 3.1
ESLNR2005-3-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 3 | D3 (mm): 0.47 | θ (deg): 8.9 | L (mm): 50 | Effective length at 0.5° (mm): 3.8 | Effective length at 1° (mm): 4 | Effective length at 1.5° (mm): 4.3 | Effective length at 2° (mm): 4.5 | Effective length at 3° (mm): 4.9
ESLNR2005-4-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 4 | D3 (mm): 0.47 | θ (deg): 8.2 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 5.2 | Effective length at 1.5° (mm): 5.4 | Effective length at 2° (mm): 5.7 | Effective length at 3° (mm): 6.1
ESLNR2005-5-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 5 | D3 (mm): 0.47 | θ (deg): 7.6 | L (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.6 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.3 | Effective length at 3° (mm): 7.8
ESLNR2005-6-005 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 6 | D3 (mm): 0.47 | θ (deg): 7 | L (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8.1 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNR2005-1-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 1 | D3 (mm): 0.47 | θ (deg): 10.8 | L (mm): 50 | Effective length at 0.5° (mm): 1.4 | Effective length at 1° (mm): 1.5 | Effective length at 1.5° (mm): 1.6 | Effective length at 2° (mm): 1.7 | Effective length at 3° (mm): 1.9
ESLNR2005-2-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 2 | D3 (mm): 0.47 | θ (deg): 9.8 | L (mm): 50 | Effective length at 0.5° (mm): 2.5 | Effective length at 1° (mm): 2.6 | Effective length at 1.5° (mm): 2.8 | Effective length at 2° (mm): 2.9 | Effective length at 3° (mm): 3.1
ESLNR2005-3-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 3 | D3 (mm): 0.47 | θ (deg): 8.9 | L (mm): 50 | Effective length at 0.5° (mm): 3.8 | Effective length at 1° (mm): 4 | Effective length at 1.5° (mm): 4.3 | Effective length at 2° (mm): 4.5 | Effective length at 3° (mm): 4.9
ESLNR2005-4-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 4 | D3 (mm): 0.47 | θ (deg): 8.2 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 5.2 | Effective length at 1.5° (mm): 5.4 | Effective length at 2° (mm): 5.7 | Effective length at 3° (mm): 6.1
ESLNR2005-5-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 5 | D3 (mm): 0.47 | θ (deg): 7.6 | L (mm): 50 | Effective length at 0.5° (mm): 6.1 | Effective length at 1° (mm): 6.5 | Effective length at 1.5° (mm): 6.9 | Effective length at 2° (mm): 7.2 | Effective length at 3° (mm): 7.8
ESLNR2005-6-01 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 6 | D3 (mm): 0.47 | θ (deg): 7.1 | L (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8.1 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNR2006-2-01 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | D3 (mm): 0.57 | θ (deg): 9.7 | L (mm): 50 | Effective length at 0.5° (mm): 2.5 | Effective length at 1° (mm): 2.6 | Effective length at 1.5° (mm): 2.8 | Effective length at 2° (mm): 2.9 | Effective length at 3° (mm): 3.1
ESLNR2006-4-01 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | D3 (mm): 0.57 | θ (deg): 8.1 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 5.2 | Effective length at 1.5° (mm): 5.4 | Effective length at 2° (mm): 5.7 | Effective length at 3° (mm): 6.1
ESLNR2006-6-01 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 6 | D3 (mm): 0.57 | θ (deg): 7 | L (mm): 50 | Effective length at 0.5° (mm): 7.2 | Effective length at 1° (mm): 7.7 | Effective length at 1.5° (mm): 8.1 | Effective length at 2° (mm): 8.4 | Effective length at 3° (mm): 9
ESLNR2006-8-01 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 8 | D3 (mm): 0.57 | θ (deg): 6.1 | L (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11
ESLNR2006-10-01 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 10 | D3 (mm): 0.57 | θ (deg): 5.5 | L (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.5 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.7
ESLNR2008-4-01 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | D3 (mm): 4 | θ (deg): 8 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 5.2 | Effective length at 1.5° (mm): 5.4 | Effective length at 2° (mm): 5.7 | Effective length at 3° (mm): 6.1
ESLNR2008-6-01 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | D3 (mm): 6 | θ (deg): 6.8 | L (mm): 50 | Effective length at 0.5° (mm): 7 | Effective length at 1° (mm): 7.4 | Effective length at 1.5° (mm): 7.7 | Effective length at 2° (mm): 7.9 | Effective length at 3° (mm): 8.4
ESLNR2008-8-01 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | D3 (mm): 8 | θ (deg): 5.9 | L (mm): 50 | Effective length at 0.5° (mm): 9.3 | Effective length at 1° (mm): 9.9 | Effective length at 1.5° (mm): 10.3 | Effective length at 2° (mm): 10.7 | Effective length at 3° (mm): 11.4
ESLNR2008-12-01 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 12 | D3 (mm): 12 | θ (deg): 4.7 | L (mm): 50 | Effective length at 0.5° (mm): 13.6 | Effective length at 1° (mm): 14.2 | Effective length at 1.5° (mm): 14.7 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 16
ESLNR2008-4-02 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | D3 (mm): 4 | θ (deg): 8 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 5.1 | Effective length at 1.5° (mm): 5.4 | Effective length at 2° (mm): 5.6 | Effective length at 3° (mm): 6.1
ESLNR2008-6-02 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | D3 (mm): 6 | θ (deg): 6.9 | L (mm): 50 | Effective length at 0.5° (mm): 7 | Effective length at 1° (mm): 7.3 | Effective length at 1.5° (mm): 7.7 | Effective length at 2° (mm): 7.9 | Effective length at 3° (mm): 8.4
ESLNR2010-4-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | D3 (mm): 0.94 | θ (deg): 7.7 | L (mm): 50 | Effective length at 0.5° (mm): 4.7 | Effective length at 1° (mm): 4.9 | Effective length at 1.5° (mm): 5.1 | Effective length at 2° (mm): 5.2 | Effective length at 3° (mm): 5.5
ESLNR2010-6-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | D3 (mm): 0.94 | θ (deg): 6.6 | L (mm): 50 | Effective length at 0.5° (mm): 7.1 | Effective length at 1° (mm): 7.4 | Effective length at 1.5° (mm): 7.7 | Effective length at 2° (mm): 8 | Effective length at 3° (mm): 8.5
ESLNR2010-8-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | D3 (mm): 0.94 | θ (deg): 5.7 | L (mm): 50 | Effective length at 0.5° (mm): 9.2 | Effective length at 1° (mm): 9.6 | Effective length at 1.5° (mm): 9.9 | Effective length at 2° (mm): 10.2 | Effective length at 3° (mm): 10.8
ESLNR2010-10-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | D3 (mm): 0.94 | θ (deg): 5.1 | L (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.7
ESLNR2010-12-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | D3 (mm): 0.94 | θ (deg): 4.5 | L (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.8 | Effective length at 2° (mm): 15.3 | Effective length at 3° (mm): 16
ESLNR2010-16-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | D3 (mm): 0.94 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.2 | Effective length at 2° (mm): 19.7 | Effective length at 3° (mm): 21.3
ESLNR2010-20-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | D3 (mm): 0.94 | θ (deg): 3.2 | L (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.7
ESLNR2010-4-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | D3 (mm): 0.94 | θ (deg): 7.8 | L (mm): 50 | Effective length at 0.5° (mm): 4.7 | Effective length at 1° (mm): 4.9 | Effective length at 1.5° (mm): 5.1 | Effective length at 2° (mm): 5.2 | Effective length at 3° (mm): 5.5
ESLNR2010-6-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | D3 (mm): 0.94 | θ (deg): 6.6 | L (mm): 50 | Effective length at 0.5° (mm): 7.1 | Effective length at 1° (mm): 7.4 | Effective length at 1.5° (mm): 7.7 | Effective length at 2° (mm): 8 | Effective length at 3° (mm): 8.5
ESLNR2010-8-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | D3 (mm): 0.94 | θ (deg): 5.8 | L (mm): 50 | Effective length at 0.5° (mm): 9.2 | Effective length at 1° (mm): 9.6 | Effective length at 1.5° (mm): 9.9 | Effective length at 2° (mm): 10.2 | Effective length at 3° (mm): 10.8
ESLNR2010-10-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | D3 (mm): 0.94 | θ (deg): 5.1 | L (mm): 50 | Effective length at 0.5° (mm): 11.6 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.7
ESLNR2010-12-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | D3 (mm): 0.94 | θ (deg): 4.6 | L (mm): 55 | Effective length at 0.5° (mm): 13.7 | Effective length at 1° (mm): 14.3 | Effective length at 1.5° (mm): 14.8 | Effective length at 2° (mm): 15.2 | Effective length at 3° (mm): 16
ESLNR2010-16-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | D3 (mm): 0.94 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.2 | Effective length at 2° (mm): 19.7 | Effective length at 3° (mm): 21.3
ESLNR2010-20-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | D3 (mm): 0.94 | θ (deg): 3.2 | L (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.6
ESLNR2010-6-03 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | D3 (mm): 0.94 | θ (deg): 6.7 | L (mm): 50 | Effective length at 0.5° (mm): 7.1 | Effective length at 1° (mm): 7.4 | Effective length at 1.5° (mm): 7.7 | Effective length at 2° (mm): 8 | Effective length at 3° (mm): 8.4
ESLNR2010-10-03 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | D3 (mm): 0.94 | θ (deg): 5.1 | L (mm): 50 | Effective length at 0.5° (mm): 11.5 | Effective length at 1° (mm): 12.1 | Effective length at 1.5° (mm): 12.6 | Effective length at 2° (mm): 13 | Effective length at 3° (mm): 13.7
ESLNR2010-16-03 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | D3 (mm): 0.94 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.9 | Effective length at 1° (mm): 18.6 | Effective length at 1.5° (mm): 19.1 | Effective length at 2° (mm): 19.6 | Effective length at 3° (mm): 21.3
ESLNR2010-20-03 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | D3 (mm): 0.94 | θ (deg): 3.2 | L (mm): 60 | Effective length at 0.5° (mm): 22 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24 | Effective length at 3° (mm): 26.6
ESLNR2015-4-01 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 4 | D3 (mm): 1.42 | θ (deg): 7.2 | L (mm): 50 | Effective length at 0.5° (mm): 4.8 | Effective length at 1° (mm): 4.9 | Effective length at 1.5° (mm): 5.1 | Effective length at 2° (mm): 5.3 | Effective length at 3° (mm): 5.5
ESLNR2015-8-01 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 8 | D3 (mm): 1.42 | θ (deg): 5.2 | L (mm): 50 | Effective length at 0.5° (mm): 9.2 | Effective length at 1° (mm): 9.6 | Effective length at 1.5° (mm): 10 | Effective length at 2° (mm): 10.3 | Effective length at 3° (mm): 10.8
ESLNR2015-12-01 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 12 | D3 (mm): 1.42 | θ (deg): 4 | L (mm): 55 | Effective length at 0.5° (mm): 13.4 | Effective length at 1° (mm): 13.9 | Effective length at 1.5° (mm): 14.3 | Effective length at 2° (mm): 14.7 | Effective length at 3° (mm): 16.1
ESLNR2015-15-01 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 15 | D3 (mm): 1.42 | θ (deg): 3.5 | L (mm): 55 | Effective length at 0.5° (mm): 16.9 | Effective length at 1° (mm): 17.6 | Effective length at 1.5° (mm): 18.1 | Effective length at 2° (mm): 18.6 | Effective length at 3° (mm): 20.1
ESLNR2015-20-01 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | D3 (mm): 1.42 | θ (deg): 2.8 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24.1
ESLNR2015-4-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 4 | D3 (mm): 1.42 | θ (deg): 7.3 | L (mm): 50 | Effective length at 0.5° (mm): 4.7 | Effective length at 1° (mm): 4.9 | Effective length at 1.5° (mm): 5.1 | Effective length at 2° (mm): 5.3 | Effective length at 3° (mm): 5.5
ESLNR2015-8-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 8 | D3 (mm): 1.42 | θ (deg): 5.2 | L (mm): 50 | Effective length at 0.5° (mm): 9.2 | Effective length at 1° (mm): 9.6 | Effective length at 1.5° (mm): 10 | Effective length at 2° (mm): 10.3 | Effective length at 3° (mm): 10.8
ESLNR2015-12-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 12 | D3 (mm): 1.42 | θ (deg): 4.1 | L (mm): 55 | Effective length at 0.5° (mm): 13.4 | Effective length at 1° (mm): 13.9 | Effective length at 1.5° (mm): 14.3 | Effective length at 2° (mm): 14.7 | Effective length at 3° (mm): 16.1
ESLNR2015-15-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 15 | D3 (mm): 1.42 | θ (deg): 3.5 | L (mm): 55 | Effective length at 0.5° (mm): 16.9 | Effective length at 1° (mm): 17.5 | Effective length at 1.5° (mm): 18.1 | Effective length at 2° (mm): 18.6 | Effective length at 3° (mm): 20
ESLNR2015-20-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | D3 (mm): 1.42 | θ (deg): 2.8 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24.1
ESLNR2015-8-03 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 8 | D3 (mm): 1.42 | θ (deg): 5.2 | L (mm): 50 | Effective length at 0.5° (mm): 9.2 | Effective length at 1° (mm): 9.6 | Effective length at 1.5° (mm): 10 | Effective length at 2° (mm): 10.3 | Effective length at 3° (mm): 10.8
ESLNR2015-15-03 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 15 | D3 (mm): 1.42 | θ (deg): 3.5 | L (mm): 55 | Effective length at 0.5° (mm): 16.9 | Effective length at 1° (mm): 17.5 | Effective length at 1.5° (mm): 18.1 | Effective length at 2° (mm): 18.6 | Effective length at 3° (mm): 20
ESLNR2015-20-03 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | D3 (mm): 1.42 | θ (deg): 2.8 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24
ESLNR2020-6-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 6 | D3 (mm): 1.92 | θ (deg): 5.4 | L (mm): 50 | Effective length at 0.5° (mm): 6.8 | Effective length at 1° (mm): 7.1 | Effective length at 1.5° (mm): 7.3 | Effective length at 2° (mm): 7.5 | Effective length at 3° (mm): 8.1
ESLNR2020-8-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | D3 (mm): 1.92 | θ (deg): 4.6 | L (mm): 50 | Effective length at 0.5° (mm): 8.9 | Effective length at 1° (mm): 9.2 | Effective length at 1.5° (mm): 9.4 | Effective length at 2° (mm): 9.7 | Effective length at 3° (mm): 10.8
ESLNR2020-12-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | D3 (mm): 1.92 | θ (deg): 3.5 | L (mm): 55 | Effective length at 0.5° (mm): 13.4 | Effective length at 1° (mm): 13.9 | Effective length at 1.5° (mm): 14.3 | Effective length at 2° (mm): 14.7 | Effective length at 3° (mm): 16.1
ESLNR2020-16-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | D3 (mm): 1.92 | θ (deg): 2.8 | L (mm): 55 | Effective length at 0.5° (mm): 17.6 | Effective length at 1° (mm): 18.1 | Effective length at 1.5° (mm): 18.6 | Effective length at 2° (mm): 19.3
ESLNR2020-20-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | D3 (mm): 1.92 | θ (deg): 2.4 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24.1
ESLNR2020-25-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | D3 (mm): 1.92 | θ (deg): 2 | L (mm): 65 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.2 | Effective length at 1.5° (mm): 28.8
ESLNR2020-30-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | D3 (mm): 1.92 | θ (deg): 1.7 | L (mm): 70 | Effective length at 0.5° (mm): 32.5 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.4
ESLNR2020-8-03 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | D3 (mm): 1.92 | θ (deg): 4.6 | L (mm): 50 | Effective length at 0.5° (mm): 8.9 | Effective length at 1° (mm): 9.2 | Effective length at 1.5° (mm): 9.4 | Effective length at 2° (mm): 9.7 | Effective length at 3° (mm): 10.7
ESLNR2020-16-03 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | D3 (mm): 1.92 | θ (deg): 2.8 | L (mm): 55 | Effective length at 0.5° (mm): 17.6 | Effective length at 1° (mm): 18.1 | Effective length at 1.5° (mm): 18.6 | Effective length at 2° (mm): 19.3
ESLNR2020-20-03 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | D3 (mm): 1.92 | θ (deg): 2.4 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24
ESLNR2020-6-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 6 | D3 (mm): 1.92 | θ (deg): 5.5 | L (mm): 50 | Effective length at 0.5° (mm): 6.8 | Effective length at 1° (mm): 7.1 | Effective length at 1.5° (mm): 7.3 | Effective length at 2° (mm): 7.4 | Effective length at 3° (mm): 8
ESLNR2020-8-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | D3 (mm): 1.92 | θ (deg): 4.7 | L (mm): 50 | Effective length at 0.5° (mm): 8.9 | Effective length at 1° (mm): 9.2 | Effective length at 1.5° (mm): 9.4 | Effective length at 2° (mm): 9.6 | Effective length at 3° (mm): 10.7
ESLNR2020-12-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | D3 (mm): 1.92 | θ (deg): 3.5 | L (mm): 55 | Effective length at 0.5° (mm): 13.4 | Effective length at 1° (mm): 13.9 | Effective length at 1.5° (mm): 14.3 | Effective length at 2° (mm): 14.6 | Effective length at 3° (mm): 16
ESLNR2020-16-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | D3 (mm): 1.92 | θ (deg): 2.9 | L (mm): 55 | Effective length at 0.5° (mm): 17.6 | Effective length at 1° (mm): 18.1 | Effective length at 1.5° (mm): 18.6 | Effective length at 2° (mm): 19.2
ESLNR2020-20-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | D3 (mm): 1.92 | θ (deg): 2.4 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.9 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24
ESLNR2020-25-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | D3 (mm): 1.92 | θ (deg): 2 | L (mm): 65 | Effective length at 0.5° (mm): 27.3 | Effective length at 1° (mm): 28.1 | Effective length at 1.5° (mm): 28.8
ESLNR2020-30-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | D3 (mm): 1.92 | θ (deg): 1.7 | L (mm): 70 | Effective length at 0.5° (mm): 32.5 | Effective length at 1° (mm): 33.4 | Effective length at 1.5° (mm): 34.3
ESLNR2020-8-08 R (mm): 0.8 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | D3 (mm): 1.92 | θ (deg): 4.8 | L (mm): 50 | Effective length at 0.5° (mm): 8.9 | Effective length at 1° (mm): 9.2 | Effective length at 1.5° (mm): 9.4 | Effective length at 2° (mm): 9.6 | Effective length at 3° (mm): 10.6
ESLNR2020-16-08 R (mm): 0.8 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | D3 (mm): 1.92 | θ (deg): 2.9 | L (mm): 55 | Effective length at 0.5° (mm): 17.6 | Effective length at 1° (mm): 18.1 | Effective length at 1.5° (mm): 18.6 | Effective length at 2° (mm): 19.2
ESLNR2020-20-08 R (mm): 0.8 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | D3 (mm): 1.92 | θ (deg): 2.4 | L (mm): 60 | Effective length at 0.5° (mm): 22.1 | Effective length at 1° (mm): 22.8 | Effective length at 1.5° (mm): 23.5 | Effective length at 2° (mm): 24
ESLNR2030-8-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | D3 (mm): 2.86 | θ (deg): 5.7 | L (mm): 55 | Effective length at 0.5° (mm): 9 | Effective length at 1° (mm): 9.3 | Effective length at 1.5° (mm): 9.5 | Effective length at 2° (mm): 9.9 | Effective length at 3° (mm): 10.9
ESLNR2030-12-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | D3 (mm): 2.86 | θ (deg): 4.5 | L (mm): 60 | Effective length at 0.5° (mm): 13.1 | Effective length at 1° (mm): 13.5 | Effective length at 1.5° (mm): 14 | Effective length at 2° (mm): 14.7 | Effective length at 3° (mm): 16.2
ESLNR2030-16-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | D3 (mm): 2.86 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.7 | Effective length at 1° (mm): 18.2 | Effective length at 1.5° (mm): 18.7 | Effective length at 2° (mm): 19.5 | Effective length at 3° (mm): 21.6
ESLNR2030-20-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | D3 (mm): 2.86 | θ (deg): 3.2 | L (mm): 65 | Effective length at 0.5° (mm): 21.8 | Effective length at 1° (mm): 22.4 | Effective length at 1.5° (mm): 23.1 | Effective length at 2° (mm): 24.2 | Effective length at 3° (mm): 26.9
ESLNR2030-30-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | D3 (mm): 2.86 | θ (deg): 2.4 | L (mm): 75 | Effective length at 0.5° (mm): 32.6 | Effective length at 1° (mm): 33.5 | Effective length at 1.5° (mm): 34.5 | Effective length at 2° (mm): 36.2
ESLNR2030-35-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 35 | D3 (mm): 2.86 | θ (deg): 2.1 | L (mm): 80 | Effective length at 0.5° (mm): 37.7 | Effective length at 1° (mm): 38.7 | Effective length at 1.5° (mm): 40.2 | Effective length at 2° (mm): 42.2
ESLNR2030-8-03 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | D3 (mm): 2.86 | θ (deg): 5.7 | L (mm): 55 | Effective length at 0.5° (mm): 9 | Effective length at 1° (mm): 9.3 | Effective length at 1.5° (mm): 9.5 | Effective length at 2° (mm): 9.9 | Effective length at 3° (mm): 10.9
ESLNR2030-16-03 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | D3 (mm): 2.86 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.7 | Effective length at 1° (mm): 18.2 | Effective length at 1.5° (mm): 18.7 | Effective length at 2° (mm): 19.4 | Effective length at 3° (mm): 21.5
ESLNR2030-20-03 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | D3 (mm): 2.86 | θ (deg): 3.2 | L (mm): 65 | Effective length at 0.5° (mm): 21.8 | Effective length at 1° (mm): 22.4 | Effective length at 1.5° (mm): 23.1 | Effective length at 2° (mm): 24.2 | Effective length at 3° (mm): 26.8
ESLNR2030-30-03 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | D3 (mm): 2.86 | θ (deg): 2.4 | L (mm): 75 | Effective length at 0.5° (mm): 32.6 | Effective length at 1° (mm): 33.5 | Effective length at 1.5° (mm): 34.5 | Effective length at 2° (mm): 36.2
ESLNR2030-8-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | D3 (mm): 2.86 | θ (deg): 5.8 | L (mm): 55 | Effective length at 0.5° (mm): 9 | Effective length at 1° (mm): 9.3 | Effective length at 1.5° (mm): 9.5 | Effective length at 2° (mm): 9.8 | Effective length at 3° (mm): 10.8
ESLNR2030-12-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | D3 (mm): 2.86 | θ (deg): 4.6 | L (mm): 60 | Effective length at 0.5° (mm): 13.1 | Effective length at 1° (mm): 13.5 | Effective length at 1.5° (mm): 13.9 | Effective length at 2° (mm): 14.6 | Effective length at 3° (mm): 16.2
ESLNR2030-16-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | D3 (mm): 2.86 | θ (deg): 3.8 | L (mm): 60 | Effective length at 0.5° (mm): 17.7 | Effective length at 1° (mm): 18.2 | Effective length at 1.5° (mm): 18.7 | Effective length at 2° (mm): 19.4 | Effective length at 3° (mm): 21.5
ESLNR2030-20-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | D3 (mm): 2.86 | θ (deg): 3.2 | L (mm): 65 | Effective length at 0.5° (mm): 21.8 | Effective length at 1° (mm): 22.4 | Effective length at 1.5° (mm): 23.1 | Effective length at 2° (mm): 24.2 | Effective length at 3° (mm): 26.8
ESLNR2030-30-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | D3 (mm): 2.86 | θ (deg): 2.4 | L (mm): 75 | Effective length at 0.5° (mm): 32.6 | Effective length at 1° (mm): 33.5 | Effective length at 1.5° (mm): 34.5 | Effective length at 2° (mm): 36.1
ESLNR2030-35-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 35 | D3 (mm): 2.86 | θ (deg): 2.1 | L (mm): 80 | Effective length at 0.5° (mm): 37.7 | Effective length at 1° (mm): 38.7 | Effective length at 1.5° (mm): 40.2 | Effective length at 2° (mm): 42.1
