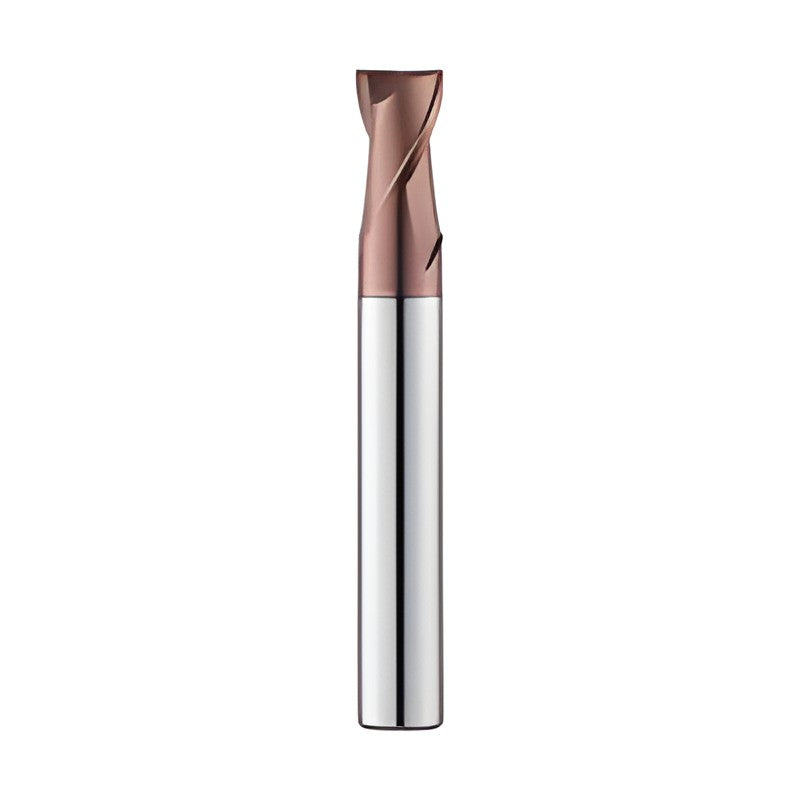

Korloy H-Star 2 Flute Neck Type Flat End Mill ESE702

Korloy H-Star 2 Flute Neck Type Flat End Mill ESE702

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø20: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESE702001 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.2 | L (mm): 40
ESE702002 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.4 | L (mm): 40
ESE702003 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | L (mm): 40
ESE702004 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.7 | L (mm): 40
ESE702005 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 1 | L (mm): 40
ESE702006 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 1.2 | L (mm): 40
ESE702007 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.4 | L (mm): 40
ESE702008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.6 | L (mm): 40
ESE702009 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 2 | L (mm): 40
ESE702010 ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1.5 | L (mm): 40
ESE702010S4 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | L (mm): 40
ESE702015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 2.2 | L (mm): 40
ESE702020 ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 40
ESE702020S4 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 40
ESE702025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 6 | L (mm): 40
ESE702030 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 7 | L (mm): 45
ESE702035 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 9 | L (mm): 45
ESE702040 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 9 | L (mm): 45
ESE702045 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 45
ESE702050 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 11 | L (mm): 50
ESE702060 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 14 | L (mm): 50
ESE702080 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 18 | L (mm): 60
ESE702100 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 75
ESE702120 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
ESE702160 ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 90
ESE702200 ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 24 | ℓ2 (mm): 45 | L (mm): 100
