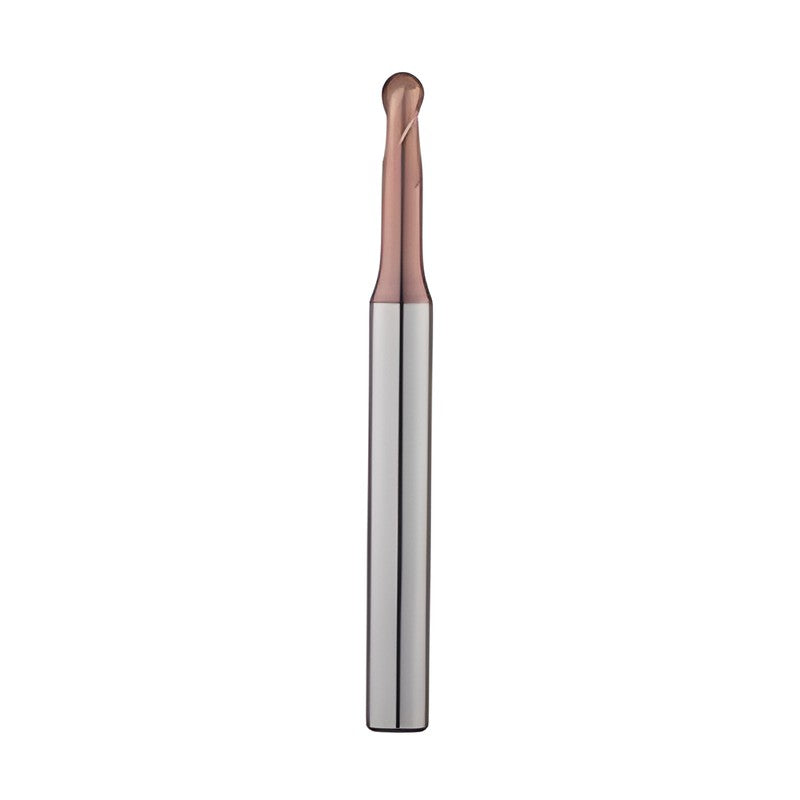

Korloy H-Star 2 Flute Rib Ball End Mill ESRB712

Korloy H-Star 2 Flute Rib Ball End Mill ESRB712

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.005 (R3 or Under); ±0.008 (Above R3)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.005 (R3 or Under); ±0.008 (Above R3)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESRB712001002 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.2 | L (mm): 40
ESRB712001003 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.3 | L (mm): 40
ESRB712001005 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.5 | L (mm): 40
ESRB71200101 R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 1 | L (mm): 40
ESRB712002005 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRB712002015 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200201 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRB71200202 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200203 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 3 | L (mm): 40
ESRB712003015 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200301 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRB712003025 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2.5 | L (mm): 40
ESRB71200302 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200303 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRB71200304 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | L (mm): 40
ESRB71200305 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | L (mm): 40
ESRB712004015 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200401 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRB712004025 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2.5 | L (mm): 40
ESRB71200402 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200403 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRB71200404 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRB71200405 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 5 | L (mm): 40
ESRB71200406 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 6 | L (mm): 40
ESRB71200408 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 8 | L (mm): 40
ESRB71200410 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 10 | L (mm): 40
ESRB712005015 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRB71200501 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200501S6 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRB712005025 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRB71200502 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200502S6 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200503 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200504 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200504S6 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200505 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200506 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200508 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200510 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200512 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200514 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200516 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200601 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200601S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200602 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200602S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200603 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200603S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200604 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200604S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200605 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200605S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200606 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200606S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200608 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200608S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200610 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200610S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200612 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200612S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200614 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200614S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200616 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200616S6 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 16 | L (mm): 50
ESRB71200702 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200704 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200706 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200708 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200710 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200712 R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200801 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200801S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200802 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200802S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200803 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200803S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200804 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200804S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200805 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200805S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200806 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200806S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200808 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200808S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200810 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200810S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200812 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200812S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200814 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200814S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200816 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200816S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 50
ESRB71200820 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | L (mm): 50
ESRB71200820S6 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | L (mm): 55
ESRB71200904 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200906 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200908 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200910 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
ESRB71201002 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 50
ESRB71201002S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 50
ESRB71201003 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201003S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201004 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201004S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201005 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201005S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201006 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201006S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201007 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201007S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201008 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201008S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201009 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 9 | L (mm): 50
ESRB71201009S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 9 | L (mm): 50
ESRB71201010 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201010S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201012 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201012S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201014 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201014S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201016 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201016S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201018 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201018S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201020 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201020S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201022 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201022S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201026 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201026S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201030 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201030S6 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201040 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201050 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 50 | L (mm): 100
ESRB71201204 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201206 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201208 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201210 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201212 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201216 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201220 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRB71201226 R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201406 R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201408 R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201410 R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201412 R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201416 R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201503 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201503S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201504 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201504S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201505 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201506 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201506S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201507 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201508 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201508S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201510 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201510S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201512 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201512S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201514 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201514S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201516 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201516S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201518 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201518S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201520 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201520S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201522 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201522S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201526 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201526S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201530 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201530S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201535 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71201535S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71201540 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201540S6 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201604 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201606 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201608 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201610 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201612 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201616 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201620 R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 20 | L (mm): 50
ESRB71201804 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201806 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201808 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201810 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201812 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201816 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201820 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
ESRB71202004 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71202004S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71202006 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71202006S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71202008 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202008S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202010 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202010S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202012 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202012S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202014 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRB71202014S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRB71202016 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202016S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202018 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 55
ESRB71202018S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 55
ESRB71202020 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 55
ESRB71202020S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 55
ESRB71202022 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202022S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202026 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202026S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202030 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202030S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202035 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202035S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202040 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202040S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202045 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202045S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202050 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 50 | L (mm): 100
ESRB71202050S6 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 50 | L (mm): 100
ESRB71202060 R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 60 | L (mm): 110
ESRB71202508 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202510 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202512 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202516 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202520 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRB71202522 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202526 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202530 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202535 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202540 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202545 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202550 R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | L (mm): 100
ESRB71203006 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESRB71203008 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESRB71203010 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRB71203012 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRB71203014 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 60
ESRB71203016 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 60
ESRB71203018 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 60
ESRB71203020 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRB71203022 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 65
ESRB71203026 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 65
ESRB71203030 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRB71203035 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
ESRB71203040 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRB71203045 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRB71203050 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRB71203060 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 100
ESRB71203510 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRB71203516 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 60
ESRB71203520 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRB71203526 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 65
ESRB71203530 R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRB71204008 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRB71204010 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRB71204012 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRB71204014 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 60
ESRB71204016 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 60
ESRB71204018 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 60
ESRB71204020 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRB71204022 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 65
ESRB71204026 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 65
ESRB71204030 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRB71204035 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
ESRB71204040 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRB71204045 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRB71204050 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRB71204055 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRB71204060 R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 60 | L (mm): 100
ESRB71205015 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRB71205020 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRB71205026 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
ESRB71205030 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRB71205035 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
ESRB71205040 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRB71205045 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
ESRB71205050 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
ESRB71205055 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 55 | L (mm): 100
ESRB71205060 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRB7120602090 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 12 | ℓ2 (mm): 20 | L (mm): 90
ESRB71206020 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
ESRB7120603090 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 90
ESRB71206030 R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 60
ESRB71208025100 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 14 | ℓ2 (mm): 25 | L (mm): 100
ESRB71208025 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 70
ESRB71208035100 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 14 | ℓ2 (mm): 35 | L (mm): 100
ESRB71208035 R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 35 | L (mm): 70
ESRB71210030100 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 18 | ℓ2 (mm): 30 | L (mm): 100
ESRB71210030 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
ESRB71210040100 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 18 | ℓ2 (mm): 40 | L (mm): 100
ESRB71210040 R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 40 | L (mm): 75
ESRB71212032110 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 22 | ℓ2 (mm): 32 | L (mm): 110
ESRB71212032 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 14 | ℓ2 (mm): 32 | L (mm): 80
ESRB71212045110 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 22 | ℓ2 (mm): 45 | L (mm): 110
ESRB71212045 R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 14 | ℓ2 (mm): 45 | L (mm): 80
Ball End MillsKorloy
301 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 2 Flute Rib Ball End Mill ESRB712

Brand Korloy·Ball End Mills

Available part numbers (301)

ESRB712001002, ESRB712001003, ESRB712001005, ESRB71200101, ESRB712002005, ESRB712002015, ESRB71200201, ESRB71200202, ESRB71200203, ESRB712003015 + 291 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESRB712001002R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.2 | L (mm): 40
ESRB712001003R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.3 | L (mm): 40
ESRB712001005R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 0.5 | L (mm): 40
ESRB71200101R (mm): 0.05 | ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.1 | ℓ2 (mm): 1 | L (mm): 40
ESRB712002005R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRB712002015R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200201R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRB71200202R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200203R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 3 | L (mm): 40
ESRB712003015R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200301R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRB712003025R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2.5 | L (mm): 40
ESRB71200302R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200303R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRB71200304R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | L (mm): 40
ESRB71200305R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | L (mm): 40
ESRB712004015R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1.5 | L (mm): 40
ESRB71200401R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRB712004025R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2.5 | L (mm): 40
ESRB71200402R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRB71200403R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRB71200404R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRB71200405R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 5 | L (mm): 40
ESRB71200406R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 6 | L (mm): 40
ESRB71200408R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 8 | L (mm): 40
ESRB71200410R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 10 | L (mm): 40
ESRB712005015R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRB71200501R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200501S6R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRB712005025R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRB71200502R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200502S6R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200503R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200504R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200504S6R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 6 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200505R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200506R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200508R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200510R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200512R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200514R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200516R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200601R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200601S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200602R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200602S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200603R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200603S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200604R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200604S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200605R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200605S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200606R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200606S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200608R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200608S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200610R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200610S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200612R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200612S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200614R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200614S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200616R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200616S6R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 6 | ℓ1 (mm): 0.6 | ℓ2 (mm): 16 | L (mm): 50
ESRB71200702R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200704R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200706R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200708R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200710R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200712R (mm): 0.35 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200801R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200801S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 45
ESRB71200802R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200802S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRB71200803R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200803S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 45
ESRB71200804R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200804S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200805R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200805S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 45
ESRB71200806R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200806S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200808R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200808S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200810R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200810S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRB71200812R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200812S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 45
ESRB71200814R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200814S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 14 | L (mm): 45
ESRB71200816R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 45
ESRB71200816S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 50
ESRB71200820R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | L (mm): 50
ESRB71200820S6R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | L (mm): 55
ESRB71200904R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
ESRB71200906R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
ESRB71200908R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
ESRB71200910R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
ESRB71201002R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 50
ESRB71201002S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 50
ESRB71201003R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201003S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201004R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201004S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201005R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201005S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201006R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201006S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201007R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201007S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201008R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201008S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201009R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 9 | L (mm): 50
ESRB71201009S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 9 | L (mm): 50
ESRB71201010R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201010S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201012R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201012S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201014R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201014S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201016R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201016S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201018R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201018S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201020R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201020S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201022R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201022S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201026R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201026S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201030R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201030S6R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201040R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201050R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 50 | L (mm): 100
ESRB71201204R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201206R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201208R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201210R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201212R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201216R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201220R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRB71201226R (mm): 0.6 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201406R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201408R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201410R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201412R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201416R (mm): 0.7 | ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201503R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201503S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRB71201504R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201504S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201505R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
ESRB71201506R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201506S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201507R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
ESRB71201508R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201508S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201510R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201510S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201512R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201512S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201514R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201514S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRB71201516R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201516S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201518R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201518S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRB71201520R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201520S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 55
ESRB71201522R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201522S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71201526R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201526S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71201530R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201530S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71201535R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71201535S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71201540R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201540S6R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71201604R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201606R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201608R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201610R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201612R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201616R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201620R (mm): 0.8 | ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 20 | L (mm): 50
ESRB71201804R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
ESRB71201806R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
ESRB71201808R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
ESRB71201810R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRB71201812R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRB71201816R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRB71201820R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
ESRB71202004R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71202004S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESRB71202006R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71202006S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESRB71202008R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202008S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202010R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202010S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202012R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202012S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202014R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRB71202014S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRB71202016R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202016S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202018R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 55
ESRB71202018S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 55
ESRB71202020R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 55
ESRB71202020S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 55
ESRB71202022R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202022S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202026R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202026S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202030R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202030S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202035R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202035S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202040R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202040S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202045R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202045S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202050R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 50 | L (mm): 100
ESRB71202050S6R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 50 | L (mm): 100
ESRB71202060R (mm): 1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 60 | L (mm): 110
ESRB71202508R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 50
ESRB71202510R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRB71202512R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRB71202516R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRB71202520R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRB71202522R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 22 | L (mm): 60
ESRB71202526R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 26 | L (mm): 60
ESRB71202530R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRB71202535R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 35 | L (mm): 70
ESRB71202540R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | L (mm): 80
ESRB71202545R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 45 | L (mm): 90
ESRB71202550R (mm): 1.25 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | L (mm): 100
ESRB71203006R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESRB71203008R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESRB71203010R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRB71203012R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRB71203014R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 60
ESRB71203016R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 60
ESRB71203018R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 60
ESRB71203020R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRB71203022R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 65
ESRB71203026R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 65
ESRB71203030R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRB71203035R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
ESRB71203040R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRB71203045R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRB71203050R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRB71203060R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 100
ESRB71203510R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRB71203516R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 60
ESRB71203520R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRB71203526R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 65
ESRB71203530R (mm): 1.75 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRB71204008R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRB71204010R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRB71204012R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRB71204014R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 60
ESRB71204016R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 60
ESRB71204018R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 60
ESRB71204020R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRB71204022R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 65
ESRB71204026R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 65
ESRB71204030R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRB71204035R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
ESRB71204040R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRB71204045R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRB71204050R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRB71204055R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRB71204060R (mm): 2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 60 | L (mm): 100
ESRB71205015R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRB71205020R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRB71205026R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
ESRB71205030R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRB71205035R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
ESRB71205040R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRB71205045R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
ESRB71205050R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
ESRB71205055R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 55 | L (mm): 100
ESRB71205060R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRB7120602090R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 12 | ℓ2 (mm): 20 | L (mm): 90
ESRB71206020R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
ESRB7120603090R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 90
ESRB71206030R (mm): 3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 60
ESRB71208025100R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 14 | ℓ2 (mm): 25 | L (mm): 100
ESRB71208025R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 70
ESRB71208035100R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 14 | ℓ2 (mm): 35 | L (mm): 100
ESRB71208035R (mm): 4 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 35 | L (mm): 70
ESRB71210030100R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 18 | ℓ2 (mm): 30 | L (mm): 100
ESRB71210030R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
ESRB71210040100R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 18 | ℓ2 (mm): 40 | L (mm): 100
ESRB71210040R (mm): 5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 40 | L (mm): 75
ESRB71212032110R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 22 | ℓ2 (mm): 32 | L (mm): 110
ESRB71212032R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 14 | ℓ2 (mm): 32 | L (mm): 80
ESRB71212045110R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 22 | ℓ2 (mm): 45 | L (mm): 110
ESRB71212045R (mm): 6 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 14 | ℓ2 (mm): 45 | L (mm): 80

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
