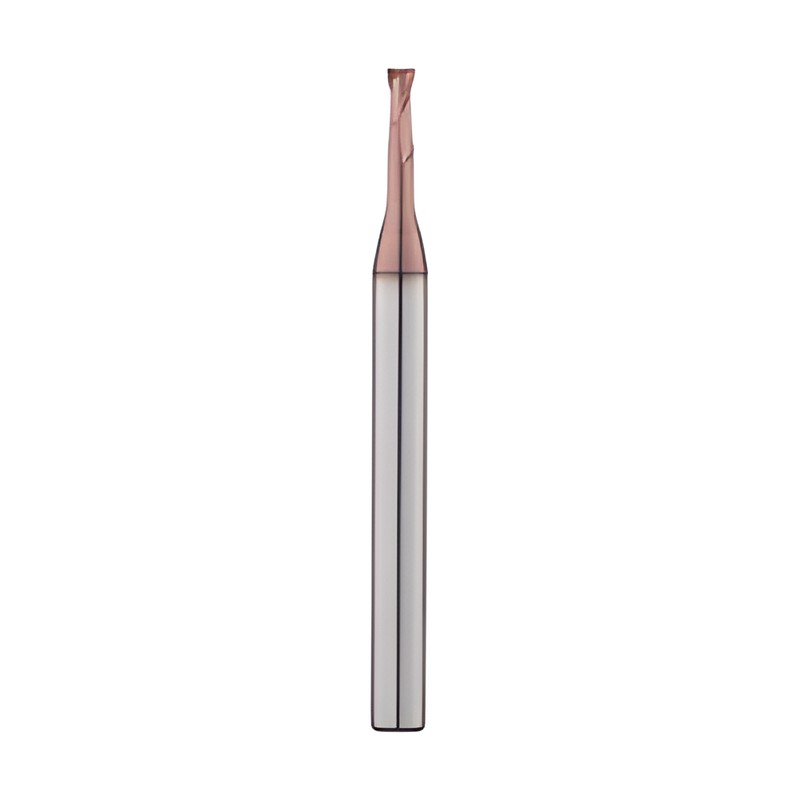

Korloy H-Star 2 Flute Rib Neck Type Flat End Mill ESRE712

Korloy H-Star 2 Flute Rib Neck Type Flat End Mill ESRE712

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESRE712001003 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.3 | L (mm): 40
ESRE712001005 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.5 | L (mm): 40
ESRE71200101 ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | L (mm): 40
ESRE712002005 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 0.5 | L (mm): 40
ESRE712002015 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200201 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRE71200202 ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRE712003015 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200301 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
ESRE712003025 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 40
ESRE71200302 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
ESRE71200303 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 40
ESRE71200304 ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 40
ESRE71200305 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 40
ESRE712004015 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200401 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 40
ESRE712004025 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2.5 | L (mm): 40
ESRE71200402 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 40
ESRE71200403 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 40
ESRE71200404 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 40
ESRE71200405 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 40
ESRE71200406 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 40
ESRE71200408 ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 40
ESRE71200410 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 40
ESRE712005015 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1.5 | L (mm): 45
ESRE71200501 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1 | L (mm): 45
ESRE712005025 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2.5 | L (mm): 45
ESRE71200502 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200503 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200504 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200505 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200506 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200508 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200510 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200512 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200514 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200516 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200602 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200603 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200604 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200605 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200606 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200608 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200610 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200612 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200614 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200616 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200702 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200704 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200706 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200708 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200710 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200712 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200802 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200803 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200804 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200805 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200806 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200808 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200810 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200812 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200814 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200816 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200820 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRE71200906 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200908 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200910 ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 10 | L (mm): 45
ESRE71201002 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 2 | L (mm): 50
ESRE71201003 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRE71201004 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201005 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
ESRE71201006 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201007 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
ESRE71201008 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201010 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201012 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201014 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201016 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201018 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRE71201020 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201022 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRE71201026 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201030 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201040 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71201050 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71201204 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201206 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201208 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201210 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201212 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201214 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201216 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201220 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201226 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201230 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201406 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201408 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201410 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201414 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201416 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201420 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201504 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201505 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 5 | L (mm): 50
ESRE71201506 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201507 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 7 | L (mm): 50
ESRE71201508 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201510 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201512 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201514 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201516 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201518 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 18 | L (mm): 50
ESRE71201520 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201522 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
ESRE71201526 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201530 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201608 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201610 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201612 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201616 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201620 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201808 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201810 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201812 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201816 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201820 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202006 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESRE71202008 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71202010 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71202012 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71202014 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRE71202016 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71202018 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 50
ESRE71202020 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202022 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
ESRE71202026 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
ESRE71202030 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71202035 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
ESRE71202040 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRE71202045 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRE71202050 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRE71202060 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
ESRE71202508 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRE71202510 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71202512 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71202514 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
ESRE71202516 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
ESRE71202518 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 50
ESRE71202520 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202522 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 60
ESRE71202526 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
ESRE71202530 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRE71202535 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
ESRE71202540 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRE71202545 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRE71202550 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRE71203006 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 6 | L (mm): 50
ESRE71203008 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
ESRE71203010 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71203012 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71203014 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
ESRE71203016 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
ESRE71203018 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 18 | L (mm): 60
ESRE71203020 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71203022 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 22 | L (mm): 65
ESRE71203026 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
ESRE71203030 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71203035 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
ESRE71203040 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71203045 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 45 | L (mm): 90
ESRE71203050 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71203060 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 60 | L (mm): 100
ESRE71204008 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 8 | L (mm): 50
ESRE71204010 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71204012 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71204014 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
ESRE71204016 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
ESRE71204018 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 18 | L (mm): 60
ESRE71204020 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71204022 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 22 | L (mm): 65
ESRE71204026 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
ESRE71204030 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRE71204035 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
ESRE71204040 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRE71204045 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
ESRE71204050 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
ESRE71204060 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRE71205016 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 16 | L (mm): 60
ESRE71205020 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
ESRE71205026 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 26 | L (mm): 65
ESRE71205030 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 70
ESRE71205035 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 35 | L (mm): 75
ESRE71205040 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | L (mm): 80
ESRE71205050 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | L (mm): 90
ESRE71205060 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | L (mm): 100
ESRE71206015 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 15 | L (mm): 60
ESRE71206020 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESRE71206030 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 30 | L (mm): 70
ESRE71206032 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 32 | L (mm): 90
ESRE71208025 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
ESRE71208030 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
ESRE71208042 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 42 | L (mm): 100
ESRE71210030 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
ESRE71210035 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 35 | L (mm): 80
ESRE71210045 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 45 | L (mm): 100
ESRE71212035 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 80
ESRE71212040 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 90
ESRE71212050 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 50 | L (mm): 110
End MillsKorloy
207 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 2 Flute Rib Neck Type Flat End Mill ESRE712

Brand Korloy·End Mills

Available part numbers (207)

ESRE712001003, ESRE712001005, ESRE71200101, ESRE712002005, ESRE712002015, ESRE71200201, ESRE71200202, ESRE712003015, ESRE71200301, ESRE712003025 + 197 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESRE712001003ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.3 | L (mm): 40
ESRE712001005ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 0.5 | L (mm): 40
ESRE71200101ØD (mm): 0.1 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | L (mm): 40
ESRE712002005ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 0.5 | L (mm): 40
ESRE712002015ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200201ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRE71200202ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRE712003015ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200301ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
ESRE712003025ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 40
ESRE71200302ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
ESRE71200303ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 40
ESRE71200304ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 40
ESRE71200305ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 40
ESRE712004015ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1.5 | L (mm): 40
ESRE71200401ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 40
ESRE712004025ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2.5 | L (mm): 40
ESRE71200402ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 40
ESRE71200403ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 40
ESRE71200404ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 40
ESRE71200405ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 40
ESRE71200406ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 40
ESRE71200408ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 40
ESRE71200410ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 40
ESRE712005015ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1.5 | L (mm): 45
ESRE71200501ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 1 | L (mm): 45
ESRE712005025ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2.5 | L (mm): 45
ESRE71200502ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200503ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200504ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200505ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200506ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200508ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200510ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200512ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200514ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200516ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200602ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200603ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200604ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200605ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200606ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200608ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200610ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200612ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200614ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200616ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.9 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200702ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200704ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200706ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200708ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200710ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200712ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200802ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 2 | L (mm): 45
ESRE71200803ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRE71200804ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71200805ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 5 | L (mm): 45
ESRE71200806ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200808ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200810ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 45
ESRE71200812ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 45
ESRE71200814ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 45
ESRE71200816ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 45
ESRE71200820ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRE71200906ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 6 | L (mm): 45
ESRE71200908ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 8 | L (mm): 45
ESRE71200910ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 1.3 | ℓ2 (mm): 10 | L (mm): 45
ESRE71201002ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 2 | L (mm): 50
ESRE71201003ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
ESRE71201004ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201005ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 50
ESRE71201006ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201007ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 7 | L (mm): 50
ESRE71201008ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201010ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201012ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201014ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201016ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201018ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 50
ESRE71201020ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201022ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRE71201026ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201030ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201040ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71201050ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71201204ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201206ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201208ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201210ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201212ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201214ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201216ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201220ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201226ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201230ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201406ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201408ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201410ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201414ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201416ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201420ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 2.1 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201504ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
ESRE71201505ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 5 | L (mm): 50
ESRE71201506ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
ESRE71201507ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 7 | L (mm): 50
ESRE71201508ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201510ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201512ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201514ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
ESRE71201516ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201518ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 18 | L (mm): 50
ESRE71201520ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201522ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
ESRE71201526ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
ESRE71201530ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71201608ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201610ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201612ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201616ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201620ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71201808ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 8 | L (mm): 50
ESRE71201810ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 10 | L (mm): 50
ESRE71201812ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 12 | L (mm): 50
ESRE71201816ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 16 | L (mm): 50
ESRE71201820ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 2.7 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202006ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESRE71202008ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESRE71202010ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71202012ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71202014ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRE71202016ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
ESRE71202018ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 18 | L (mm): 50
ESRE71202020ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202022ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
ESRE71202026ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
ESRE71202030ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71202035ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 70
ESRE71202040ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRE71202045ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRE71202050ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRE71202060ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
ESRE71202508ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRE71202510ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71202512ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71202514ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
ESRE71202516ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
ESRE71202518ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 18 | L (mm): 50
ESRE71202520ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
ESRE71202522ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 22 | L (mm): 60
ESRE71202526ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
ESRE71202530ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRE71202535ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 70
ESRE71202540ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRE71202545ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRE71202550ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRE71203006ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 6 | L (mm): 50
ESRE71203008ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
ESRE71203010ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71203012ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71203014ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
ESRE71203016ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
ESRE71203018ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 18 | L (mm): 60
ESRE71203020ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71203022ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 22 | L (mm): 65
ESRE71203026ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
ESRE71203030ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71203035ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
ESRE71203040ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71203045ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 45 | L (mm): 90
ESRE71203050ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71203060ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 60 | L (mm): 100
ESRE71204008ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 8 | L (mm): 50
ESRE71204010ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71204012ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71204014ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
ESRE71204016ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
ESRE71204018ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 18 | L (mm): 60
ESRE71204020ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71204022ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 22 | L (mm): 65
ESRE71204026ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
ESRE71204030ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRE71204035ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
ESRE71204040ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRE71204045ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
ESRE71204050ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
ESRE71204060ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRE71205016ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 16 | L (mm): 60
ESRE71205020ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 60
ESRE71205026ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 26 | L (mm): 65
ESRE71205030ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | L (mm): 70
ESRE71205035ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 35 | L (mm): 75
ESRE71205040ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | L (mm): 80
ESRE71205050ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | L (mm): 90
ESRE71205060ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | L (mm): 100
ESRE71206015ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 15 | L (mm): 60
ESRE71206020ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESRE71206030ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 30 | L (mm): 70
ESRE71206032ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 32 | L (mm): 90
ESRE71208025ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
ESRE71208030ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
ESRE71208042ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 42 | L (mm): 100
ESRE71210030ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
ESRE71210035ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 35 | L (mm): 80
ESRE71210045ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 45 | L (mm): 100
ESRE71212035ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 80
ESRE71212040ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 90
ESRE71212050ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 20 | ℓ2 (mm): 50 | L (mm): 110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
