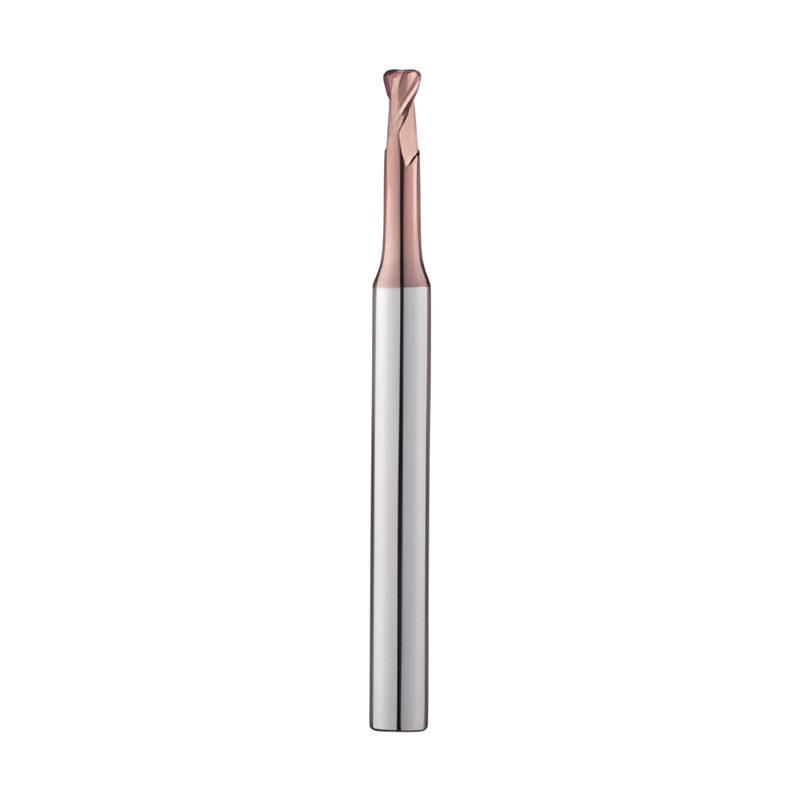

Korloy H-Star 2 Flute Rib Radius End Mill ESRR712

Korloy H-Star 2 Flute Rib Radius End Mill ESRR712

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø16: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESRR712002002005 R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRR71200200201 R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRR712002002015 R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR712002005005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRR71200200501 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRR712002005015 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR71200300201 R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200300202 R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200300203 R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200300501 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200300502 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200300503 R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400201 R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200400202 R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200400203 R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400204 R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200400501 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200400502 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200400503 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400504 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200401001 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR712004010015 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR71200401002 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200401003 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200401004 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200500201 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005002015 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200500202 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005002025 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200500203 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200500204 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200500205 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200500206 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200500208 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200500210 R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200500501 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005005015 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200500502 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005005025 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200500503 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200500504 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200500505 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200500506 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200500508 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200500510 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200501001 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005010015 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200501002 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005010025 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200501003 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200501004 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200501005 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200501006 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200501008 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200501010 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600202 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200600203 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200600204 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200600206 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200600208 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200600210 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600212 R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200600502 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200600503 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200600504 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200600506 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200600508 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200600510 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600512 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200601002 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200601003 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200601004 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200601006 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200601008 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200601010 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200601012 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200701002 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200701004 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200701006 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200701008 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200701010 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800202 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200800204 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200800206 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200800208 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200800210 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800212 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200800502 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200800504 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200800506 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200800508 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200800510 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800512 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200801002 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200801004 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200801006 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200801008 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200801010 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200801012 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200802002 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200802004 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200802006 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200802008 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200802010 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200802012 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000204 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201000206 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201000208 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201000210 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201000212 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000214 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201000216 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201000220 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201000504 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201000506 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201000508 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201000510 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201000512 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000514 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201000516 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201000520 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201001004 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201001006 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201001008 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201001010 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201001012 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201001014 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201001016 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201001020 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201002004 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201002006 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201002008 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201002010 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201002012 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201002014 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201002016 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201002020 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201003004 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201003006 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201003008 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201003010 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201003012 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201003014 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201003016 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201003020 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201200204 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201200206 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201200208 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201200210 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201200212 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201200214 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201200216 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201200220 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201200504 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201200506 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201200508 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201200510 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201200512 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201200514 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201200516 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201200520 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201201004 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201201006 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201201008 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201201010 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201201012 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201201014 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201201016 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201201020 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201202004 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201202006 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201202008 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201202010 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201202012 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201202014 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201202016 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201202020 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201203004 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201203006 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201203008 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201203010 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201203012 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201203014 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201203016 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201203020 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201500204 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201500206 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201500208 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201500210 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201500212 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201500214 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201500216 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201500220 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201500504 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201500506 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201500508 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201500510 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201500512 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201500514 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201500516 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201500520 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201501004 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201501006 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201501008 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201501010 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201501012 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201501014 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201501016 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201501020 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201502004 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201502006 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201502008 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201502010 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201502012 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201502014 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201502016 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201502020 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201503004 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201503006 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201503008 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201503010 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201503012 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201503014 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201503016 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201503020 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201505004 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201505006 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201505008 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201505010 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201505012 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201505014 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201505016 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201505020 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000206 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202000208 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202000210 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202000212 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202000214 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202000216 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202000220 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000225 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202000506 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202000508 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202000510 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202000512 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202000514 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202000516 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202000520 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000525 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202001006 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202001008 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202001010 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202001012 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202001014 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202001016 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202001020 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202001025 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202001030 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202002006 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202002008 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202002010 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202002012 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202002014 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202002016 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202002020 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202002025 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202002030 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202003006 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202003008 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202003010 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202003012 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202003014 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202003016 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202003020 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202003025 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202003030 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202005006 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202005008 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202005010 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202005012 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202005014 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202005016 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202005020 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202005025 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202005030 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202501010 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202501016 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202501020 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202501025 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202501030 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202502010 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202502016 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202502020 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202503010 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202503016 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202503020 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202505010 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202505016 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202505020 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71203001010 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203001012 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203001016 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203001020 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203001025 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203001030 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203001035 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203001040 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203002010 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203002012 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203002016 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203002020 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203002025 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203002030 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203002035 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203002040 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203003010 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203003012 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203003016 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203003020 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203003025 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203003030 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203003035 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203003040 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203005010 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203005012 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203005016 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203005020 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203005025 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203005030 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203005035 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203005040 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203010010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203010012 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203010016 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203010020 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203010025 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203010030 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203010035 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203010040 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204001012 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204001016 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204001020 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204001025 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204001030 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204001035 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204001040 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204002012 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204002016 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204002020 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204002025 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204002030 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204002035 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204002040 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204003012 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204003016 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204003020 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204003025 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204003030 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204003035 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204003040 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204005012 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204005016 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204005020 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204005025 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204005030 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204005035 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204005040 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204010012 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204010016 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204010020 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204010025 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204010030 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204010035 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204010040 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205002015 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205002025 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205002030 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205002040 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205005015 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205005025 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205005030 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205005040 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205010015 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205010025 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205010030 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205010040 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206001020 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206001040 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206002020 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206002040 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206003020 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206003040 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206005020 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206005040 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206010020 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206010040 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206015020 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206015040 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71208002022 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208003022 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71205005022 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208010022 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208015022 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71210002024 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210003024 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210005024 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210010024 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210015024 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210020024 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71212002026 R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212003026 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212005026 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212010026 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212015026 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212020026 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212030026 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71216005035 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 110
ESRR71216010035 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 110
End MillsKorloy
418 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 2 Flute Rib Radius End Mill ESRR712

Brand Korloy·End Mills

Available part numbers (418)

ESRR712002002005, ESRR71200200201, ESRR712002002015, ESRR712002005005, ESRR71200200501, ESRR712002005015, ESRR71200300201, ESRR71200300202, ESRR71200300203, ESRR71200300501 + 408 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESRR712002002005R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRR71200200201R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRR712002002015R (mm): 0.02 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR712002005005R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 0.5 | L (mm): 40
ESRR71200200501R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1 | L (mm): 40
ESRR712002005015R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.2 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR71200300201R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200300202R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200300203R (mm): 0.02 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200300501R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200300502R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200300503R (mm): 0.05 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400201R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200400202R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200400203R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400204R (mm): 0.02 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200400501R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR71200400502R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200400503R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200400504R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200401001R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1 | L (mm): 40
ESRR712004010015R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 1.5 | L (mm): 40
ESRR71200401002R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | L (mm): 40
ESRR71200401003R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 3 | L (mm): 40
ESRR71200401004R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | L (mm): 40
ESRR71200500201R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005002015R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200500202R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005002025R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200500203R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200500204R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200500205R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200500206R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200500208R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200500210R (mm): 0.02 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200500501R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005005015R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200500502R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005005025R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200500503R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200500504R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200500505R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200500506R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200500508R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200500510R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200501001R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 45
ESRR712005010015R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1.5 | L (mm): 45
ESRR71200501002R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR712005010025R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2.5 | L (mm): 45
ESRR71200501003R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200501004R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200501005R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRR71200501006R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200501008R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200501010R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600202R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200600203R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200600204R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200600206R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200600208R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200600210R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600212R (mm): 0.02 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200600502R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200600503R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200600504R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200600506R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200600508R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200600510R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200600512R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200601002R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200601003R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRR71200601004R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200601006R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200601008R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200601010R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200601012R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200701002R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200701004R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200701006R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200701008R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200701010R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800202R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200800204R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200800206R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200800208R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200800210R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800212R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200800502R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200800504R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200800506R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200800508R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200800510R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200800512R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200801002R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200801004R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200801006R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200801008R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200801010R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200801012R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71200802002R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71200802004R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71200802006R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71200802008R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71200802010R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71200802012R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000204R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201000206R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201000208R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201000210R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201000212R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000214R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201000216R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201000220R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201000504R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201000506R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201000508R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201000510R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201000512R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201000514R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201000516R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201000520R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201001004R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201001006R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201001008R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201001010R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201001012R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201001014R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201001016R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201001020R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201002004R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201002006R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201002008R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201002010R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201002012R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201002014R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201002016R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201002020R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201003004R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201003006R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201003008R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201003010R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201003012R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201003014R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201003016R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201003020R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201200204R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201200206R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201200208R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201200210R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201200212R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201200214R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201200216R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201200220R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201200504R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201200506R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201200508R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201200510R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201200512R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201200514R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201200516R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201200520R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201201004R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201201006R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201201008R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201201010R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201201012R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201201014R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201201016R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201201020R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201202004R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201202006R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201202008R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201202010R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201202012R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201202014R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201202016R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201202020R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201203004R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201203006R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201203008R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201203010R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201203012R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201203014R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201203016R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201203020R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201500204R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201500206R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201500208R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201500210R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201500212R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201500214R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201500216R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201500220R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201500504R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201500506R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201500508R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201500510R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201500512R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201500514R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201500516R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201500520R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201501004R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201501006R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201501008R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201501010R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201501012R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201501014R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201501016R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201501020R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201502004R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201502006R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201502008R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201502010R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201502012R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201502014R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201502016R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201502020R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201503004R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201503006R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201503008R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201503010R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201503012R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201503014R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201503016R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201503020R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71201505004R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71201505006R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71201505008R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71201505010R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71201505012R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71201505014R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71201505016R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71201505020R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000206R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202000208R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202000210R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202000212R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202000214R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202000216R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202000220R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000225R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202000506R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202000508R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202000510R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202000512R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202000514R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202000516R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202000520R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202000525R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202001006R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202001008R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202001010R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202001012R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202001014R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202001016R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202001020R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202001025R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202001030R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202002006R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202002008R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202002010R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202002012R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202002014R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202002016R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202002020R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202002025R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202002030R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202003006R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202003008R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202003010R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202003012R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202003014R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202003016R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202003020R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202003025R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202003030R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202005006R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71202005008R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71202005010R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202005012R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71202005014R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71202005016R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202005020R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202005025R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202005030R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202501010R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202501016R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202501020R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202501025R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71202501030R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71202502010R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202502016R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202502020R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202503010R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202503016R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202503020R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71202505010R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71202505016R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71202505020R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71203001010R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203001012R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203001016R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203001020R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203001025R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203001030R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203001035R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203001040R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203002010R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203002012R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203002016R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203002020R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203002025R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203002030R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203002035R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203002040R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203003010R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203003012R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203003016R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203003020R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203003025R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203003030R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203003035R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203003040R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203005010R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203005012R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203005016R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203005020R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203005025R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203005030R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203005035R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203005040R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71203010010R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71203010012R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71203010016R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71203010020R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71203010025R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71203010030R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71203010035R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71203010040R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204001012R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204001016R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204001020R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204001025R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204001030R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204001035R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204001040R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204002012R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204002016R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204002020R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204002025R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204002030R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204002035R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204002040R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204003012R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204003016R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204003020R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204003025R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204003030R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204003035R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204003040R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204005012R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204005016R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204005020R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204005025R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204005030R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204005035R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204005040R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71204010012R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71204010016R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71204010020R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71204010025R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71204010030R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71204010035R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71204010040R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205002015R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205002025R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205002030R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205002040R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205005015R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205005025R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205005030R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205005040R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71205010015R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
ESRR71205010025R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 70
ESRR71205010030R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
ESRR71205010040R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206001020R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206001040R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206002020R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206002040R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206003020R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206003040R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206005020R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206005040R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206010020R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206010040R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71206015020R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71206015040R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71208002022R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208003022R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71205005022R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208010022R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71208015022R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71210002024R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210003024R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210005024R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210010024R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210015024R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71210020024R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71212002026R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212003026R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212005026R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212010026R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212015026R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212020026R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71212030026R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71216005035R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 110
ESRR71216010035R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
