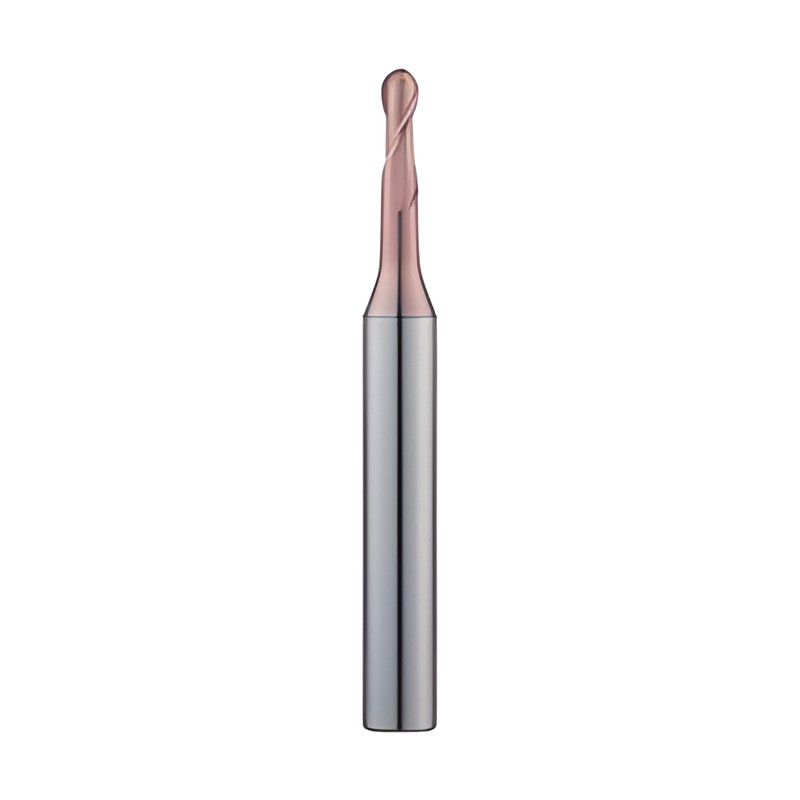

Korloy H-Star 2 Flute Tapered Neck Type Ball End Mill ESTNB20

Korloy H-Star 2 Flute Tapered Neck Type Ball End Mill ESTNB20

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESTNB2002-1-04 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1 | θ (deg): 0.4 | D3 (mm): 0.17 | D4 (mm): 0.18 | App. L (mm): 1.35 | θ2 (deg): 10.9 | L (mm): 50
ESTNB2002-1.5-04 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 1.5 | θ (deg): 0.4 | D3 (mm): 0.17 | D4 (mm): 0.19 | App. L (mm): 1.77 | θ2 (deg): 10.4 | L (mm): 50
ESTNB2002-2-09 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 2 | θ (deg): 0.9 | D3 (mm): 0.17 | D4 (mm): 0.23 | App. L (mm): 1.1 | θ2 (deg): 10.1 | L (mm): 50
ESTNB2002-2.5-09 R (mm): 0.1 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 2.5 | θ (deg): 0.9 | D3 (mm): 0.17 | D4 (mm): 0.24 | App. L (mm): 1.1 | θ2 (deg): 9.6 | L (mm): 50
ESTNB2003-2-04 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 2 | θ (deg): 0.4 | D3 (mm): 0.28 | D4 (mm): 0.29 | App. L (mm): 2.19 | θ2 (deg): 10 | L (mm): 50
ESTNB2003-3-09 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 3 | θ (deg): 0.9 | D3 (mm): 0.28 | D4 (mm): 0.36 | App. L (mm): 1.2 | θ2 (deg): 9.3 | L (mm): 50
ESTNB2003-4-09 R (mm): 0.15 | ØD (mm): 0.3 | Ød (mm): 4 | ℓ1 (mm): 0.25 | ℓ2 (mm): 4 | θ (deg): 0.9 | D3 (mm): 0.28 | D4 (mm): 0.39 | App. L (mm): 1.2 | θ2 (deg): 8.6 | L (mm): 50
ESTNB2004-2-04 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 2 | θ (deg): 0.4 | D3 (mm): 0.37 | D4 (mm): 0.39 | App. L (mm): 2.2 | θ2 (deg): 10 | L (mm): 50
ESTNB2004-3-04 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 3 | θ (deg): 0.4 | D3 (mm): 0.37 | D4 (mm): 0.41 | App. L (mm): 2.44 | θ2 (deg): 9.1 | L (mm): 50
ESTNB2004-4-04 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.37 | D4 (mm): 0.42 | App. L (mm): 2.44 | θ2 (deg): 8.4 | L (mm): 50
ESTNB2004-4-09 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.49 | App. L (mm): 1.25 | θ2 (deg): 8.5 | L (mm): 50
ESTNB2004-5-04 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | θ (deg): 0.4 | D3 (mm): 0.37 | D4 (mm): 0.44 | App. L (mm): 2.44 | θ2 (deg): 7.8 | L (mm): 50
ESTNB2004-5-09 R (mm): 0.2 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.52 | App. L (mm): 1.25 | θ2 (deg): 7.9 | L (mm): 50
ESTNB2005-4-04 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.47 | D4 (mm): 0.52 | App. L (mm): 2.49 | θ2 (deg): 8.4 | L (mm): 50
ESTNB2005-8-09 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 8 | θ (deg): 0.9 | D3 (mm): 0.47 | D4 (mm): 0.71 | App. L (mm): 1.3 | θ2 (deg): 6.5 | L (mm): 50
ESTNB2005-12-09 R (mm): 0.25 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 12 | θ (deg): 0.9 | D3 (mm): 0.47 | D4 (mm): 0.84 | App. L (mm): 1.3 | θ2 (deg): 5.3 | L (mm): 50
ESTNB20054-2-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 2 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.54 | App. L (mm): 1.8 | θ2 (deg): 10 | L (mm): 50
ESTNB20054-4-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.57 | App. L (mm): 1.8 | θ2 (deg): 8.4 | L (mm): 50
ESTNB20054-5-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 5 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.59 | App. L (mm): 1.8 | θ2 (deg): 7.8 | L (mm): 50
ESTNB20054-6-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 6 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.6 | App. L (mm): 1.8 | θ2 (deg): 7.2 | L (mm): 50
ESTNB20054-6.5-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 6.5 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.61 | App. L (mm): 1.8 | θ2 (deg): 7 | L (mm): 50
ESTNB20054-7-04 R (mm): 0.27 | ØD (mm): 0.54 | Ød (mm): 4 | ℓ1 (mm): 0.37 | ℓ2 (mm): 7 | θ (deg): 0.4 | D3 (mm): 0.52 | D4 (mm): 0.61 | App. L (mm): 1.8 | θ2 (deg): 6.8 | L (mm): 50
ESTNB2006-2-04 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 2 | θ (deg): 0.4 | D3 (mm): 0.57 | D4 (mm): 0.59 | App. L (mm): 2.17 | θ2 (deg): 10 | L (mm): 50
ESTNB2006-4-04 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.57 | D4 (mm): 0.62 | App. L (mm): 2.54 | θ2 (deg): 8.4 | L (mm): 50
ESTNB2006-6-04 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 6 | θ (deg): 0.4 | D3 (mm): 0.57 | D4 (mm): 0.65 | App. L (mm): 2.54 | θ2 (deg): 7.2 | L (mm): 50
ESTNB2006-6-09 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 6 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 0.75 | App. L (mm): 1.35 | θ2 (deg): 7.3 | L (mm): 50
ESTNB2006-8-09 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 8 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 0.81 | App. L (mm): 1.35 | θ2 (deg): 6.4 | L (mm): 50
ESTNB2006-10-04 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 10 | θ (deg): 0.4 | D3 (mm): 0.57 | D4 (mm): 0.7 | App. L (mm): 2.54 | θ2 (deg): 5.6 | L (mm): 50
ESTNB2006-10-09 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 10 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 0.87 | App. L (mm): 1.35 | θ2 (deg): 5.7 | L (mm): 50
ESTNB2006-12-09 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 12 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 0.93 | App. L (mm): 1.35 | θ2 (deg): 5.2 | L (mm): 55
ESTNB2006-15-04 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 15 | θ (deg): 0.4 | D3 (mm): 0.57 | D4 (mm): 0.77 | App. L (mm): 2.54 | θ2 (deg): 4.4 | L (mm): 55
ESTNB2006-15-09 R (mm): 0.3 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 1.03 | App. L (mm): 1.35 | θ2 (deg): 4.5 | L (mm): 55
ESTNB2008-4-04 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.77 | D4 (mm): 0.82 | App. L (mm): 2.64 | θ2 (deg): 8.3 | L (mm): 50
ESTNB2008-6-04 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | θ (deg): 0.4 | D3 (mm): 0.77 | D4 (mm): 0.85 | App. L (mm): 2.64 | θ2 (deg): 7.1 | L (mm): 50
ESTNB2008-8-09 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | θ (deg): 0.9 | D3 (mm): 0.77 | D4 (mm): 1.01 | App. L (mm): 1.45 | θ2 (deg): 6.3 | L (mm): 50
ESTNB2008-12-09 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 12 | θ (deg): 0.9 | D3 (mm): 0.77 | D4 (mm): 1.13 | App. L (mm): 1.45 | θ2 (deg): 5 | L (mm): 55
ESTNB2008-16-09 R (mm): 0.4 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 16 | θ (deg): 0.9 | D3 (mm): 0.77 | D4 (mm): 1.26 | App. L (mm): 1.45 | θ2 (deg): 4.2 | L (mm): 55
ESTNB2009-4-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 0.91 | App. L (mm): 3.46 | θ2 (deg): 8.2 | L (mm): 50
ESTNB2009-8-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 0.96 | App. L (mm): 3.46 | θ2 (deg): 6.1 | L (mm): 55
ESTNB2009-12-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.02 | App. L (mm): 3.46 | θ2 (deg): 4.8 | L (mm): 55
ESTNB2009-16-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.08 | App. L (mm): 3.46 | θ2 (deg): 4 | L (mm): 60
ESTNB2009-18-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 18 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.1 | App. L (mm): 3.46 | θ2 (deg): 3.7 | L (mm): 65
ESTNB2009-20-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.13 | App. L (mm): 3.46 | θ2 (deg): 3.4 | L (mm): 65
ESTNB2009-22-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 22 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.16 | App. L (mm): 3.46 | θ2 (deg): 3.2 | L (mm): 65
ESTNB2009-24-04 R (mm): 0.45 | ØD (mm): 0.9 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 24 | θ (deg): 0.4 | D3 (mm): 0.86 | D4 (mm): 1.19 | App. L (mm): 3.46 | θ2 (deg): 3 | L (mm): 70
ESTNB2010-6-04 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.01 | App. L (mm): 5.09 | θ2 (deg): 8.3 | L (mm): 50
ESTNB2010-8-04 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.04 | App. L (mm): 5.09 | θ2 (deg): 7.5 | L (mm): 55
ESTNB2010-10-04 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.07 | App. L (mm): 5.09 | θ2 (deg): 6.8 | L (mm): 55
ESTNB2010-10-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.23 | App. L (mm): 2.7 | θ2 (deg): 6.9 | L (mm): 55
ESTNB2010-15-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.39 | App. L (mm): 2.7 | θ2 (deg): 5.7 | L (mm): 60
ESTNB2010-20-04 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.21 | App. L (mm): 5.09 | θ2 (deg): 4.7 | L (mm): 65
ESTNB2010-20-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.54 | App. L (mm): 2.7 | θ2 (deg): 4.8 | L (mm): 65
ESTNB2010-25-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 25 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.7 | App. L (mm): 2.7 | θ2 (deg): 4.2 | L (mm): 70
ESTNB2010-30-04 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 1.35 | App. L (mm): 5.09 | θ2 (deg): 3.6 | L (mm): 75
ESTNB2010-30-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.86 | App. L (mm): 2.7 | θ2 (deg): 3.7 | L (mm): 75
ESTNB2010-35-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 35 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 2.02 | App. L (mm): 2.7 | θ2 (deg): 3.3 | L (mm): 80
ESTNB2010-40-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 2.17 | App. L (mm): 2.7 | θ2 (deg): 3 | L (mm): 85
ESTNB2010-50-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 2.49 | App. L (mm): 2.7 | θ2 (deg): 2.5 | L (mm): 95
ESTNB2010-60-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 2.8 | App. L (mm): 2.7 | θ2 (deg): 2.2 | L (mm): 105
ESTNB2010-70-09 R (mm): 0.5 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 3.11 | App. L (mm): 2.7 | θ2 (deg): 1.9 | L (mm): 115 | Effective length at 1° (mm): 71.9 | Effective length at 1.5° (mm): 74
ESTNB2015-8-04 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.42 | D4 (mm): 1.51 | App. L (mm): 7.07 | θ2 (deg): 7.3 | L (mm): 55
ESTNB2015-10-04 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 10 | θ (deg): 0.4 | D3 (mm): 1.42 | D4 (mm): 1.54 | App. L (mm): 7.07 | θ2 (deg): 6.6 | L (mm): 55
ESTNB2015-12-04 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.42 | D4 (mm): 1.57 | App. L (mm): 7.07 | θ2 (deg): 6 | L (mm): 55
ESTNB2015-15-09 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 1.85 | App. L (mm): 3.89 | θ2 (deg): 5.4 | L (mm): 60
ESTNB2015-20-09 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.01 | App. L (mm): 3.89 | θ2 (deg): 4.5 | L (mm): 65
ESTNB2015-30-09 R (mm): 0.75 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.32 | App. L (mm): 3.89 | θ2 (deg): 3.4 | L (mm): 75
ESTNB2018-4-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 4 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 1.76 | App. L (mm): 4.38 | θ2 (deg): 9.2 | L (mm): 50
ESTNB2018-8-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 1.82 | App. L (mm): 6.61 | θ2 (deg): 7.1 | L (mm): 50
ESTNB2018-12-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 1.88 | App. L (mm): 6.61 | θ2 (deg): 5.8 | L (mm): 55
ESTNB2018-16-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 1.93 | App. L (mm): 6.61 | θ2 (deg): 4.9 | L (mm): 60
ESTNB2018-20-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 1.99 | App. L (mm): 6.61 | θ2 (deg): 4.3 | L (mm): 65
ESTNB2018-24-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 24 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.04 | App. L (mm): 6.61 | θ2 (deg): 3.8 | L (mm): 65
ESTNB2018-28-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 28 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.1 | App. L (mm): 6.61 | θ2 (deg): 3.4 | L (mm): 70
ESTNB2018-32-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 32 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.15 | App. L (mm): 6.61 | θ2 (deg): 3 | L (mm): 70
ESTNB2018-36-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 36 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.21 | App. L (mm): 6.61 | θ2 (deg): 2.8 | L (mm): 75
ESTNB2018-38-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 38 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.24 | App. L (mm): 6.61 | θ2 (deg): 2.7 | L (mm): 80
ESTNB2018-40-04 R (mm): 0.9 | ØD (mm): 1.8 | Ød (mm): 6 | ℓ1 (mm): 1.6 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 1.73 | D4 (mm): 2.27 | App. L (mm): 6.61 | θ2 (deg): 2.6 | L (mm): 80
ESTNB2020-8-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.01 | App. L (mm): 7.42 | θ2 (deg): 7 | L (mm): 50
ESTNB2020-12-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.06 | App. L (mm): 7.42 | θ2 (deg): 5.7 | L (mm): 55
ESTNB2020-16-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.12 | App. L (mm): 7.42 | θ2 (deg): 4.8 | L (mm): 60
ESTNB2020-20-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.18 | App. L (mm): 7.42 | θ2 (deg): 4.1 | L (mm): 65
ESTNB2020-20-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.5 | App. L (mm): 4.24 | θ2 (deg): 4.2 | L (mm): 65
ESTNB2020-25-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.65 | App. L (mm): 4.24 | θ2 (deg): 3.6 | L (mm): 65
ESTNB2020-30-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.32 | App. L (mm): 7.42 | θ2 (deg): 3.1 | L (mm): 70
ESTNB2020-30-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 4.24 | θ2 (deg): 3.2 | L (mm): 70
ESTNB2020-35-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 35 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.97 | App. L (mm): 4.24 | θ2 (deg): 2.8 | L (mm): 75
ESTNB2020-40-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.46 | App. L (mm): 7.42 | θ2 (deg): 2.5 | L (mm): 80
ESTNB2020-40-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 4.24 | θ2 (deg): 2.6 | L (mm): 80
ESTNB2020-50-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 4.24 | θ2 (deg): 2.1 | L (mm): 90
ESTNB2020-60-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.75 | App. L (mm): 4.24 | θ2 (deg): 1.8 | L (mm): 100 | Effective length at 1° (mm): 61.9 | Effective length at 1.5° (mm): 63.8
ESTNB2020-70-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 4.07 | App. L (mm): 4.24 | θ2 (deg): 1.8 | L (mm): 110 | Effective length at 1° (mm): 72 | Effective length at 1.5° (mm): 74.1
ESTNB2030-8-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 2.94 | App. L (mm): 8.5 | θ2 (deg): 6.3 | L (mm): 50
ESTNB2030-16-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.05 | App. L (mm): 12.52 | θ2 (deg): 4.1 | L (mm): 55
ESTNB2030-20-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.1 | App. L (mm): 12.52 | θ2 (deg): 3.4 | L (mm): 60
ESTNB2030-30-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.24 | App. L (mm): 12.52 | θ2 (deg): 2.5 | L (mm): 70
ESTNB2030-30-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 3.72 | App. L (mm): 6.95 | θ2 (deg): 2.6 | L (mm): 70
ESTNB2030-40-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.38 | App. L (mm): 12.52 | θ2 (deg): 2 | L (mm): 80
ESTNB2030-40-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 41.9 | Effective length at 1.5° (mm): 43.3
ESTNB2030-50-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.7 | L (mm): 90 | Effective length at 1° (mm): 52 | Effective length at 1.5° (mm): 53.6
ESTNB2030-60-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.1
ESTNB2030-70-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.98 | App. L (mm): 6.95 | θ2 (deg): 1.2 | L (mm): 110 | Effective length at 1° (mm): 72.1
ESTNB2040-20-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.28 | App. L (mm): 12.01 | θ2 (deg): 5 | L (mm): 70
ESTNB2040-30-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.63 | App. L (mm): 12.01 | θ2 (deg): 3.51 | L (mm): 80
ESTNB2040-40-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.98 | App. L (mm): 12.01 | θ2 (deg): 2.7 | L (mm): 90
ESTNB2040-50-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.33 | App. L (mm): 12.01 | θ2 (deg): 2.2 | L (mm): 100
ESTNB2040-60-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.68 | App. L (mm): 12.01 | θ2 (deg): 1.9 | L (mm): 110
ESTNB2050-30-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.56 | App. L (mm): 14.01 | θ2 (deg): 2.8 | L (mm): 80
ESTNB2050-40-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.91 | App. L (mm): 14.01 | θ2 (deg): 2.1 | L (mm): 90
ESTNB2050-60-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 6.61 | App. L (mm): 14.01 | θ2 (deg): 1.5 | L (mm): 110 | Effective length at 0.5° (mm): 25.5 | Effective length at 1° (mm): 62.1
ESTNB2060-30-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 6.49 | App. L (mm): 16.01 | θ2 (deg): 1.9 | L (mm): 80
ESTNB2060-40-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 6.84 | App. L (mm): 16.01 | θ2 (deg): 1.5 | L (mm): 90 | Effective length at 0.5° (mm): 29 | Effective length at 1° (mm): 41.8
ESTNB2060-50-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 50 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 7.19 | App. L (mm): 16.01 | θ2 (deg): 1.2 | L (mm): 100 | Effective length at 0.5° (mm): 29 | Effective length at 1° (mm): 51.8
ESTNB2060-60-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 7.54 | App. L (mm): 16.01 | θ2 (deg): 1.9 | L (mm): 110
ESTNB2060-70-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 70 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 7.89 | App. L (mm): 16.01 | θ2 (deg): 1.7 | L (mm): 120
ESTNB2060-80-10 R (mm): 3 | ØD (mm): 6 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 80 | θ (deg): 1 | D3 (mm): 5.86 | D4 (mm): 8.23 | App. L (mm): 16.01 | θ2 (deg): 1.5 | L (mm): 130 | Effective length at 0.5° (mm): 29 | Effective length at 1° (mm): 82.2
ESTNB2080-50-10 R (mm): 4 | ØD (mm): 8 | Ød (mm): 10 | ℓ1 (mm): 14 | ℓ2 (mm): 50 | θ (deg): 1 | D3 (mm): 7.86 | D4 (mm): 9.12 | App. L (mm): 18.01 | θ2 (deg): 1.2 | L (mm): 110 | Effective length at 0.5° (mm): 32 | Effective length at 1° (mm): 51.9
ESTNB2080-60-10 R (mm): 4 | ØD (mm): 8 | Ød (mm): 10 | ℓ1 (mm): 14 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 7.86 | D4 (mm): 9.47 | App. L (mm): 18.01 | θ2 (deg): 1 | L (mm): 120 | Effective length at 0.5° (mm): 32
ESTNB2080-70-10 R (mm): 4 | ØD (mm): 8 | Ød (mm): 10 | ℓ1 (mm): 14 | ℓ2 (mm): 70 | θ (deg): 1 | D3 (mm): 7.86 | D4 (mm): 9.82 | App. L (mm): 18.01 | θ2 (deg): 0.9 | L (mm): 130 | Effective length at 0.5° (mm): 32
ESTNB2080-80-10 R (mm): 4 | ØD (mm): 8 | Ød (mm): 12 | ℓ1 (mm): 14 | ℓ2 (mm): 80 | θ (deg): 1 | D3 (mm): 7.86 | D4 (mm): 10.16 | App. L (mm): 18.01 | θ2 (deg): 1.5 | L (mm): 140 | Effective length at 0.5° (mm): 32 | Effective length at 1° (mm): 82.3
ESTNB2100-60-10 R (mm): 5 | ØD (mm): 10 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 9.86 | D4 (mm): 11.33 | App. L (mm): 22.01 | θ2 (deg): 1.1 | L (mm): 130 | Effective length at 0.5° (mm): 39 | Effective length at 1° (mm): 62.1
ESTNB2100-75-10 R (mm): 5 | ØD (mm): 10 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 75 | θ (deg): 1 | D3 (mm): 9.86 | D4 (mm): 11.85 | App. L (mm): 22.01 | θ2 (deg): 0.9 | L (mm): 140 | Effective length at 0.5° (mm): 39
