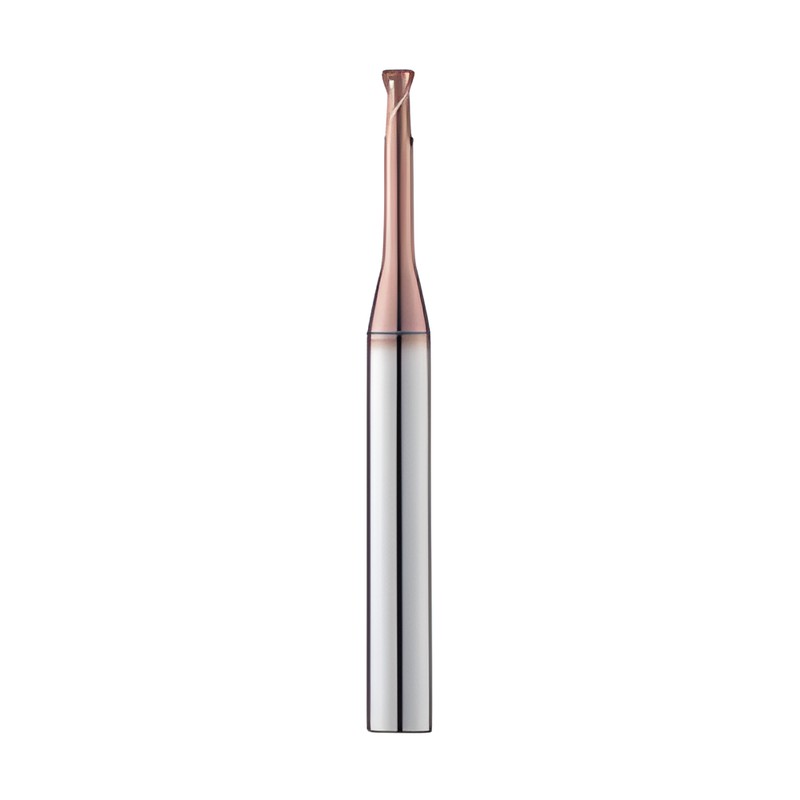

Korloy H-Star 2 Flute Tapered Neck Type Radius End Mill ESTNR

Korloy H-Star 2 Flute Tapered Neck Type Radius End Mill ESTNR

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.01 (All sizes)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 2
Coating AlTiN
Helix angle 30°
ØD tolerance All sizes: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01 (All sizes)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESTNR2002-2-09005 R (mm): 0.05 | ØD (mm): 0.2 | Ød (mm): 4 | ℓ1 (mm): 0.15 | ℓ2 (mm): 2 | θ (deg): 0.9 | D3 (mm): 0.17 | D4 (mm): 0.23 | App. L (mm): 1.1 | θ2 (deg): 10 | L (mm): 50
ESTNR2004-4-09005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.49 | App. L (mm): 1.25 | θ2 (deg): 8.4 | L (mm): 50
ESTNR2004-5-09005 R (mm): 0.05 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.52 | App. L (mm): 1.25 | θ2 (deg): 7.8 | L (mm): 50
ESTNR2004-4-0901 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 4 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.49 | App. L (mm): 1.25 | θ2 (deg): 8.5 | L (mm): 50
ESTNR2004-5-0901 R (mm): 0.1 | ØD (mm): 0.4 | Ød (mm): 4 | ℓ1 (mm): 0.3 | ℓ2 (mm): 5 | θ (deg): 0.9 | D3 (mm): 0.37 | D4 (mm): 0.52 | App. L (mm): 1.25 | θ2 (deg): 7.9 | L (mm): 50
ESTNR2005-5-0901 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 5 | θ (deg): 0.9 | D3 (mm): 0.47 | D4 (mm): 0.62 | App. L (mm): 1.3 | θ2 (deg): 7.8 | L (mm): 50
ESTNR2005-8-0901 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 8 | θ (deg): 0.9 | D3 (mm): 0.47 | D4 (mm): 0.71 | App. L (mm): 1.3 | θ2 (deg): 6.4 | L (mm): 50
ESTNR2005-10-0901 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.35 | ℓ2 (mm): 10 | θ (deg): 0.9 | D3 (mm): 0.47 | D4 (mm): 0.77 | App. L (mm): 1.3 | θ2 (deg): 5.8 | L (mm): 55
ESTNR2006-12-0901 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 12 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 0.93 | App. L (mm): 1.35 | θ2 (deg): 5.1 | L (mm): 55
ESTNR2006-15-0901 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.4 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 0.57 | D4 (mm): 13 | App. L (mm): 1.35 | θ2 (deg): 4.5 | L (mm): 55
ESTNR2008-6-0402 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | θ (deg): 0.4 | D3 (mm): 0.77 | D4 (mm): 0.85 | App. L (mm): 2.64 | θ2 (deg): 7 | L (mm): 50
ESTNR2008-12-0902 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 12 | θ (deg): 0.9 | D3 (mm): 0.77 | D4 (mm): 1.13 | App. L (mm): 1.45 | θ2 (deg): 5 | L (mm): 55
ESTNR2010-8-0402 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 14 | App. L (mm): 5.09 | θ2 (deg): 7.4 | L (mm): 55
ESTNR2010-10-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.23 | App. L (mm): 5.09 | θ2 (deg): 6.8 | L (mm): 55
ESTNR2010-15-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.39 | App. L (mm): 2.7 | θ2 (deg): 5.6 | L (mm): 60
ESTNR2010-20-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.54 | App. L (mm): 2.7 | θ2 (deg): 4.8 | L (mm): 65
ESTNR2010-25-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.7 | App. L (mm): 2.7 | θ2 (deg): 4.1 | L (mm): 70
ESTNR2010-30-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.86 | App. L (mm): 2.7 | θ2 (deg): 3.7 | L (mm): 75
ESTNR2010-35-0902 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 35 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 22 | App. L (mm): 2.7 | θ2 (deg): 3.3 | L (mm): 80
ESTNR2010-8-0403 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 0.94 | D4 (mm): 14 | App. L (mm): 2.7 | θ2 (deg): 7.4 | L (mm): 55
ESTNR2010-15-0903 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.39 | App. L (mm): 2.7 | θ2 (deg): 5.6 | L (mm): 60
ESTNR2010-25-0903 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.7 | App. L (mm): 2.7 | θ2 (deg): 4.2 | L (mm): 70
ESTNR2010-30-0903 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 0.8 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 0.94 | D4 (mm): 1.86 | App. L (mm): 2.7 | θ2 (deg): 3.7 | L (mm): 75
ESTNR2015-10-0402 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 10 | θ (deg): 0.4 | D3 (mm): 1.42 | D4 (mm): 1.54 | App. L (mm): 7.07 | θ2 (deg): 6.4 | L (mm): 55
ESTNR2015-15-0902 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 15 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 1.85 | App. L (mm): 7.07 | θ2 (deg): 5.3 | L (mm): 60
ESTNR2015-20-0902 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 21 | App. L (mm): 3.89 | θ2 (deg): 4.5 | L (mm): 65
ESTNR2015-25-0902 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.16 | App. L (mm): 3.89 | θ2 (deg): 3.9 | L (mm): 70
ESTNR2015-30-0902 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.32 | App. L (mm): 3.89 | θ2 (deg): 3.4 | L (mm): 75
ESTNR2015-10-0403 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 10 | θ (deg): 0.4 | D3 (mm): 1.42 | D4 (mm): 1.54 | App. L (mm): 3.89 | θ2 (deg): 6.4 | L (mm): 55
ESTNR2015-20-0903 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 21 | App. L (mm): 3.89 | θ2 (deg): 4.5 | L (mm): 65
ESTNR2015-25-0903 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.16 | App. L (mm): 3.89 | θ2 (deg): 3.9 | L (mm): 70
ESTNR2015-30-0903 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.35 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.42 | D4 (mm): 2.32 | App. L (mm): 3.89 | θ2 (deg): 3.4 | L (mm): 75
ESTNR2020-30-0902 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 7.42 | θ2 (deg): 3.1 | L (mm): 70
ESTNR2020-40-0902 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 7.42 | θ2 (deg): 2.5 | L (mm): 80
ESTNR2020-50-0902 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 7.42 | θ2 (deg): 2.1 | L (mm): 90
ESTNR2020-12-0403 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.06 | App. L (mm): 7.42 | θ2 (deg): 5.5 | L (mm): 55
ESTNR2020-20-0903 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.5 | App. L (mm): 4.24 | θ2 (deg): 4.1 | L (mm): 65
ESTNR2020-30-0903 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 4.24 | θ2 (deg): 3.1 | L (mm): 70
ESTNR2020-40-0903 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 4.24 | θ2 (deg): 2.5 | L (mm): 80
ESTNR2020-50-0903 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 4.24 | θ2 (deg): 2.1 | L (mm): 90
ESTNR2020-8-0405 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.01 | App. L (mm): 4.24 | θ2 (deg): 6.8 | L (mm): 50
ESTNR2020-12-0405 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.06 | App. L (mm): 4.24 | θ2 (deg): 5.6 | L (mm): 55
ESTNR2020-16-0405 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.12 | App. L (mm): 4.24 | θ2 (deg): 4.7 | L (mm): 60
ESTNR2020-20-0905 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.5 | App. L (mm): 4.24 | θ2 (deg): 4.2 | L (mm): 65
ESTNR2020-25-0905 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.65 | App. L (mm): 4.24 | θ2 (deg): 3.6 | L (mm): 65
ESTNR2020-30-0905 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 4.24 | θ2 (deg): 3.1 | L (mm): 70
ESTNR2020-40-0905 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 4.24 | θ2 (deg): 2.5 | L (mm): 80
ESTNR2020-50-0905 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 4.24 | θ2 (deg): 2.1 | L (mm): 90
ESTNR2030-40-0902 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 42 | Effective length at 1.5° (mm): 43.4
ESTNR2030-50-0902 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.6 | L (mm): 90 | Effective length at 1° (mm): 52.1 | Effective length at 1.5° (mm): 53.7
ESTNR2030-60-0902 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.2
ESTNR2030-40-0903 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 42 | Effective length at 1.5° (mm): 43.4
ESTNR2030-50-0903 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.7 | L (mm): 90 | Effective length at 1° (mm): 52.1 | Effective length at 1.5° (mm): 53.7
ESTNR2030-60-0903 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.2
ESTNR2030-40-0905 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 42 | Effective length at 1.5° (mm): 43.4
ESTNR2030-50-0905 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.7 | L (mm): 90 | Effective length at 1° (mm): 52.1 | Effective length at 1.5° (mm): 53.7
ESTNR2030-60-0905 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.1
