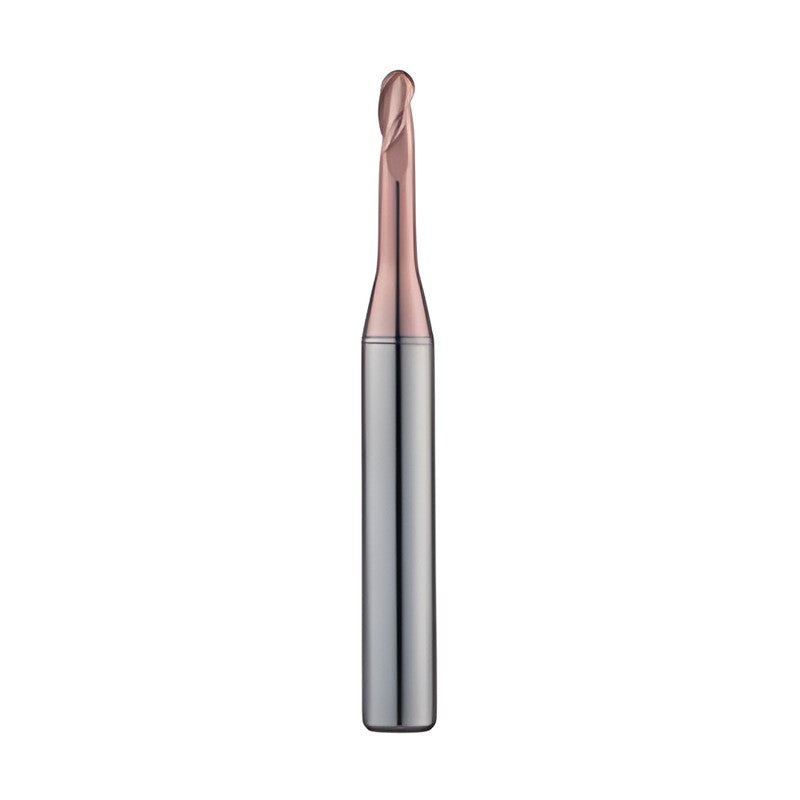

Korloy H-Star 3 Flute Tapered Neck Type Ball End Mill ESTNB30

Korloy H-Star 3 Flute Tapered Neck Type Ball End Mill ESTNB30

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.005 (All sizes)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 3
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.005 (All sizes)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESTNB3020-8-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.01 | App. L (mm): 7.42 | θ2 (deg): 7 | L (mm): 50
ESTNB3020-12-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.06 | App. L (mm): 7.42 | θ2 (deg): 5.7 | L (mm): 55
ESTNB3020-16-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.12 | App. L (mm): 7.42 | θ2 (deg): 4.8 | L (mm): 60
ESTNB3020-20-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.18 | App. L (mm): 7.42 | θ2 (deg): 4.1 | L (mm): 65
ESTNB3020-20-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.5 | App. L (mm): 4.24 | θ2 (deg): 4.2 | L (mm): 65
ESTNB3020-25-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.65 | App. L (mm): 4.24 | θ2 (deg): 3.6 | L (mm): 65
ESTNB3020-30-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.32 | App. L (mm): 7.42 | θ2 (deg): 3.1 | L (mm): 70
ESTNB3020-30-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 4.24 | θ2 (deg): 3.2 | L (mm): 70
ESTNB3020-35-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 35 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.97 | App. L (mm): 4.24 | θ2 (deg): 2.8 | L (mm): 75
ESTNB3020-40-04 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.46 | App. L (mm): 7.42 | θ2 (deg): 2.5 | L (mm): 80
ESTNB3020-40-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 4.24 | θ2 (deg): 2.6 | L (mm): 80
ESTNB3020-50-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 4.24 | θ2 (deg): 2.1 | L (mm): 90
ESTNB3020-60-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.75 | App. L (mm): 4.24 | θ2 (deg): 1.8 | L (mm): 100 | Effective length at 1° (mm): 61.9 | Effective length at 1.5° (mm): 63.8
ESTNB3020-70-09 R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 4.07 | App. L (mm): 4.24 | θ2 (deg): 1.6 | L (mm): 110 | Effective length at 1° (mm): 72 | Effective length at 1.5° (mm): 74.1
ESTNB3030-8-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 2.94 | App. L (mm): 8.5 | θ2 (deg): 6.3 | L (mm): 50
ESTNB3030-16-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.05 | App. L (mm): 12.52 | θ2 (deg): 4.1 | L (mm): 55
ESTNB3030-20-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.1 | App. L (mm): 12.52 | θ2 (deg): 3.4 | L (mm): 60
ESTNB3030-30-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.24 | App. L (mm): 12.52 | θ2 (deg): 2.5 | L (mm): 70
ESTNB3030-30-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 3.72 | App. L (mm): 6.95 | θ2 (deg): 2.6 | L (mm): 70
ESTNB3030-40-04 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.38 | App. L (mm): 12.52 | θ2 (deg): 2 | L (mm): 80
ESTNB3030-40-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 41.9 | Effective length at 1.5° (mm): 43.3
ESTNB3030-50-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.7 | L (mm): 90 | Effective length at 1° (mm): 52 | Effective length at 1.5° (mm): 53.6
ESTNB3030-60-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.1
ESTNB3030-70-09 R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.98 | App. L (mm): 6.95 | θ2 (deg): 1.2 | L (mm): 110 | Effective length at 1° (mm): 72.1
ESTNB3040-20-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.28 | App. L (mm): 12.01 | θ2 (deg): 5 | L (mm): 70
ESTNB3040-30-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.63 | App. L (mm): 12.01 | θ2 (deg): 3.6 | L (mm): 80
ESTNB3040-40-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.98 | App. L (mm): 12.01 | θ2 (deg): 2.7 | L (mm): 90
ESTNB3040-50-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.33 | App. L (mm): 12.01 | θ2 (deg): 2.2 | L (mm): 100
ESTNB3040-60-10 R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.68 | App. L (mm): 12.01 | θ2 (deg): 1.9 | L (mm): 110
ESTNB3050-30-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.56 | App. L (mm): 14.01 | θ2 (deg): 2.8 | L (mm): 80
ESTNB3050-40-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.91 | App. L (mm): 14.01 | θ2 (deg): 2.1 | L (mm): 90
ESTNB3050-60-10 R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 6.61 | App. L (mm): 12.52 | θ2 (deg): 1.5 | L (mm): 110 | Effective length at 0.5° (mm): 25.5 | Effective length at 1° (mm): 62.1
Ball End MillsKorloy
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 3 Flute Tapered Neck Type Ball End Mill ESTNB30

Brand Korloy·Ball End Mills

Available part numbers (32)

ESTNB3020-8-04, ESTNB3020-12-04, ESTNB3020-16-04, ESTNB3020-20-04, ESTNB3020-20-09, ESTNB3020-25-09, ESTNB3020-30-04, ESTNB3020-30-09, ESTNB3020-35-09, ESTNB3020-40-04 + 22 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESTNB3020-8-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.01 | App. L (mm): 7.42 | θ2 (deg): 7 | L (mm): 50
ESTNB3020-12-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 12 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.06 | App. L (mm): 7.42 | θ2 (deg): 5.7 | L (mm): 55
ESTNB3020-16-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.12 | App. L (mm): 7.42 | θ2 (deg): 4.8 | L (mm): 60
ESTNB3020-20-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.18 | App. L (mm): 7.42 | θ2 (deg): 4.1 | L (mm): 65
ESTNB3020-20-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 20 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.5 | App. L (mm): 4.24 | θ2 (deg): 4.2 | L (mm): 65
ESTNB3020-25-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 25 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.65 | App. L (mm): 4.24 | θ2 (deg): 3.6 | L (mm): 65
ESTNB3020-30-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.32 | App. L (mm): 7.42 | θ2 (deg): 3.1 | L (mm): 70
ESTNB3020-30-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.81 | App. L (mm): 4.24 | θ2 (deg): 3.2 | L (mm): 70
ESTNB3020-35-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 35 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 2.97 | App. L (mm): 4.24 | θ2 (deg): 2.8 | L (mm): 75
ESTNB3020-40-04R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 1.92 | D4 (mm): 2.46 | App. L (mm): 7.42 | θ2 (deg): 2.5 | L (mm): 80
ESTNB3020-40-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.12 | App. L (mm): 4.24 | θ2 (deg): 2.6 | L (mm): 80
ESTNB3020-50-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.44 | App. L (mm): 4.24 | θ2 (deg): 2.1 | L (mm): 90
ESTNB3020-60-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 3.75 | App. L (mm): 4.24 | θ2 (deg): 1.8 | L (mm): 100 | Effective length at 1° (mm): 61.9 | Effective length at 1.5° (mm): 63.8
ESTNB3020-70-09R (mm): 1 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 1.7 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 1.92 | D4 (mm): 4.07 | App. L (mm): 4.24 | θ2 (deg): 1.6 | L (mm): 110 | Effective length at 1° (mm): 72 | Effective length at 1.5° (mm): 74.1
ESTNB3030-8-04R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 2.94 | App. L (mm): 8.5 | θ2 (deg): 6.3 | L (mm): 50
ESTNB3030-16-04R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.05 | App. L (mm): 12.52 | θ2 (deg): 4.1 | L (mm): 55
ESTNB3030-20-04R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.1 | App. L (mm): 12.52 | θ2 (deg): 3.4 | L (mm): 60
ESTNB3030-30-04R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.24 | App. L (mm): 12.52 | θ2 (deg): 2.5 | L (mm): 70
ESTNB3030-30-09R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 3.72 | App. L (mm): 6.95 | θ2 (deg): 2.6 | L (mm): 70
ESTNB3030-40-04R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.4 | D3 (mm): 2.86 | D4 (mm): 3.38 | App. L (mm): 12.52 | θ2 (deg): 2 | L (mm): 80
ESTNB3030-40-09R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 40 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.04 | App. L (mm): 6.95 | θ2 (deg): 2 | L (mm): 80 | Effective length at 1° (mm): 41.9 | Effective length at 1.5° (mm): 43.3
ESTNB3030-50-09R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 50 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.35 | App. L (mm): 6.95 | θ2 (deg): 1.7 | L (mm): 90 | Effective length at 1° (mm): 52 | Effective length at 1.5° (mm): 53.6
ESTNB3030-60-09R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 60 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.67 | App. L (mm): 6.95 | θ2 (deg): 1.4 | L (mm): 100 | Effective length at 1° (mm): 62.1
ESTNB3030-70-09R (mm): 1.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 2.5 | ℓ2 (mm): 70 | θ (deg): 0.9 | D3 (mm): 2.86 | D4 (mm): 4.98 | App. L (mm): 6.95 | θ2 (deg): 1.2 | L (mm): 110 | Effective length at 1° (mm): 72.1
ESTNB3040-20-10R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.28 | App. L (mm): 12.01 | θ2 (deg): 5 | L (mm): 70
ESTNB3040-30-10R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.63 | App. L (mm): 12.01 | θ2 (deg): 3.6 | L (mm): 80
ESTNB3040-40-10R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 4.98 | App. L (mm): 12.01 | θ2 (deg): 2.7 | L (mm): 90
ESTNB3040-50-10R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 50 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.33 | App. L (mm): 12.01 | θ2 (deg): 2.2 | L (mm): 100
ESTNB3040-60-10R (mm): 2 | ØD (mm): 4 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 3.86 | D4 (mm): 5.68 | App. L (mm): 12.01 | θ2 (deg): 1.9 | L (mm): 110
ESTNB3050-30-10R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.56 | App. L (mm): 14.01 | θ2 (deg): 2.8 | L (mm): 80
ESTNB3050-40-10R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 40 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 5.91 | App. L (mm): 14.01 | θ2 (deg): 2.1 | L (mm): 90
ESTNB3050-60-10R (mm): 2.5 | ØD (mm): 5 | Ød (mm): 8 | ℓ1 (mm): 10 | ℓ2 (mm): 60 | θ (deg): 1 | D3 (mm): 4.86 | D4 (mm): 6.61 | App. L (mm): 12.52 | θ2 (deg): 1.5 | L (mm): 110 | Effective length at 0.5° (mm): 25.5 | Effective length at 1° (mm): 62.1
