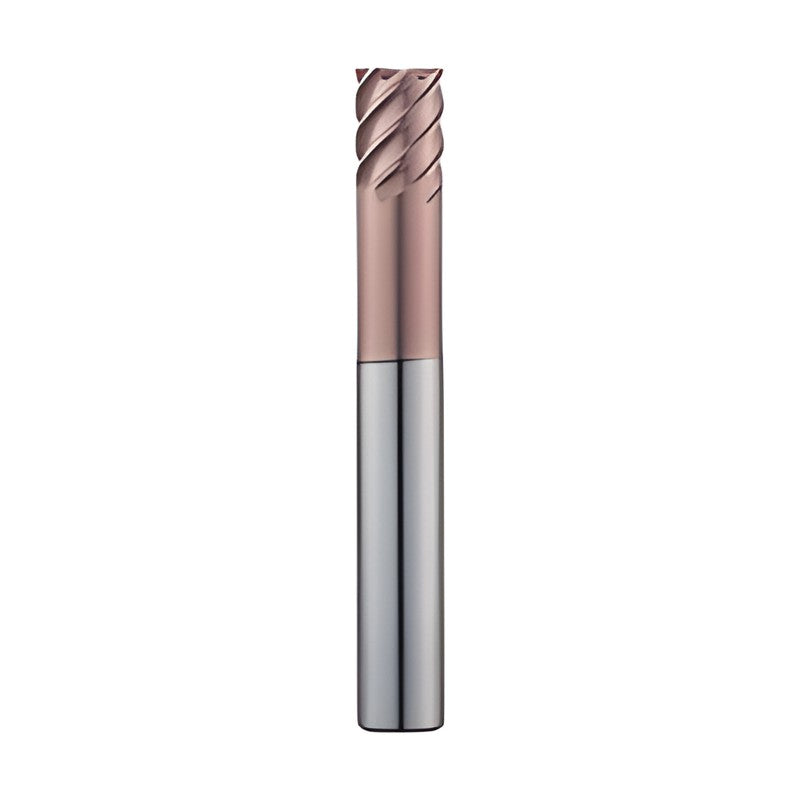

Korloy H-Star 4&6 Flute Neck Type Flat End Mill ESE724(6)

Korloy H-Star 4&6 Flute Neck Type Flat End Mill ESE724(6)

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 45° / 60°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Coating AlTiN
Helix angle 45° / 60°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESE724010 ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 45 | Flutes: 4
ESE724015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 2.2 | ℓ2 (mm): 6 | L (mm): 45 | Flutes: 4
ESE724020 ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45 | Flutes: 4
ESE724030 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 9 | L (mm): 50 | Flutes: 4
ESE724040 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 12 | L (mm): 50 | Flutes: 4
ESE724040S4L ØD (mm): 4 | Ød (mm): 4 | ℓ1 (mm): 5 | ℓ2 (mm): 12 | L (mm): 75 | Flutes: 4
ESE724050 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 50 | Flutes: 4
ESE726060 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60 | Flutes: 6
ESE726080 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 25 | L (mm): 70 | Flutes: 6
ESE726100 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 32 | L (mm): 75 | Flutes: 6
ESE726120 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 15 | ℓ2 (mm): 38 | L (mm): 80 | Flutes: 6
End MillsKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 4&6 Flute Neck Type Flat End Mill ESE724(6)

Brand Korloy·End Mills

Available part numbers (11)

ESE724010, ESE724015, ESE724020, ESE724030, ESE724040, ESE724040S4L, ESE724050, ESE726060, ESE726080, ESE726100 + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESE724010ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 5 | L (mm): 45 | Flutes: 4
ESE724015ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 2.2 | ℓ2 (mm): 6 | L (mm): 45 | Flutes: 4
ESE724020ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45 | Flutes: 4
ESE724030ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 9 | L (mm): 50 | Flutes: 4
ESE724040ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 12 | L (mm): 50 | Flutes: 4
ESE724040S4LØD (mm): 4 | Ød (mm): 4 | ℓ1 (mm): 5 | ℓ2 (mm): 12 | L (mm): 75 | Flutes: 4
ESE724050ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 50 | Flutes: 4
ESE726060ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60 | Flutes: 6
ESE726080ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 25 | L (mm): 70 | Flutes: 6
ESE726100ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 12 | ℓ2 (mm): 32 | L (mm): 75 | Flutes: 6
ESE726120ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 15 | ℓ2 (mm): 38 | L (mm): 80 | Flutes: 6
