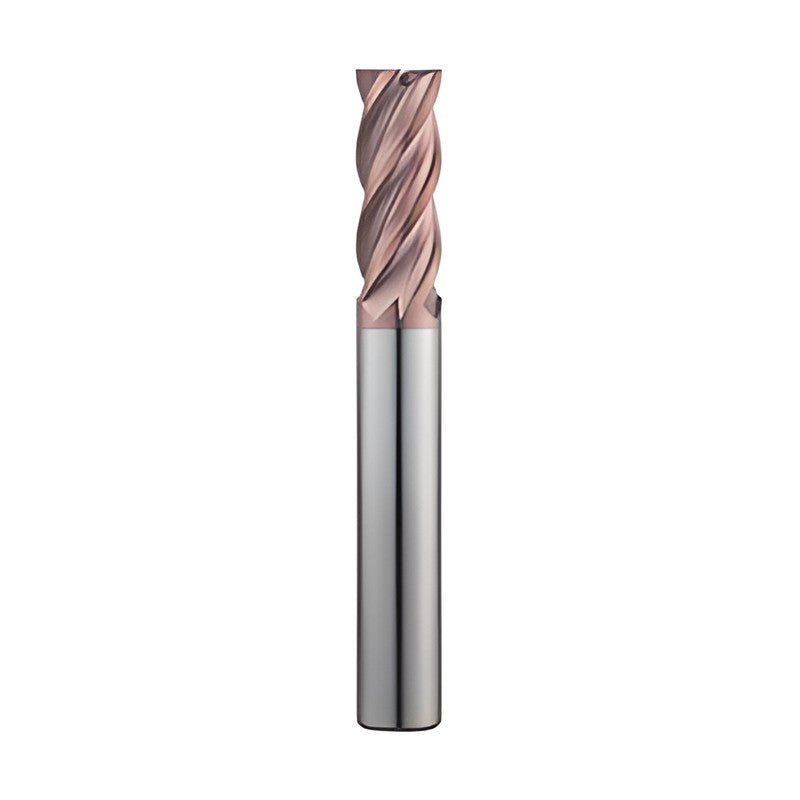

Korloy H-Star 4 Flute Flat End Mill ESXE714

Korloy H-Star 4 Flute Flat End Mill ESXE714

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle Variable
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 4
Coating AlTiN
Helix angle Variable
ØD tolerance All sizes: 0~-0.02mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESXE714020 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 45
ESXE714030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESXE714040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESXE714040S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESXE714060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 50
ESXE714080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 60
ESXE714100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
ESXE714120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 85
End MillsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 4 Flute Flat End Mill ESXE714

Brand Korloy·End Mills

Available part numbers (8)

ESXE714020, ESXE714030, ESXE714040, ESXE714040S4, ESXE714060, ESXE714080, ESXE714100, ESXE714120

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESXE714020ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 45
ESXE714030ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESXE714040ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESXE714040S4ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESXE714060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 50
ESXE714080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 60
ESXE714100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
ESXE714120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 85
