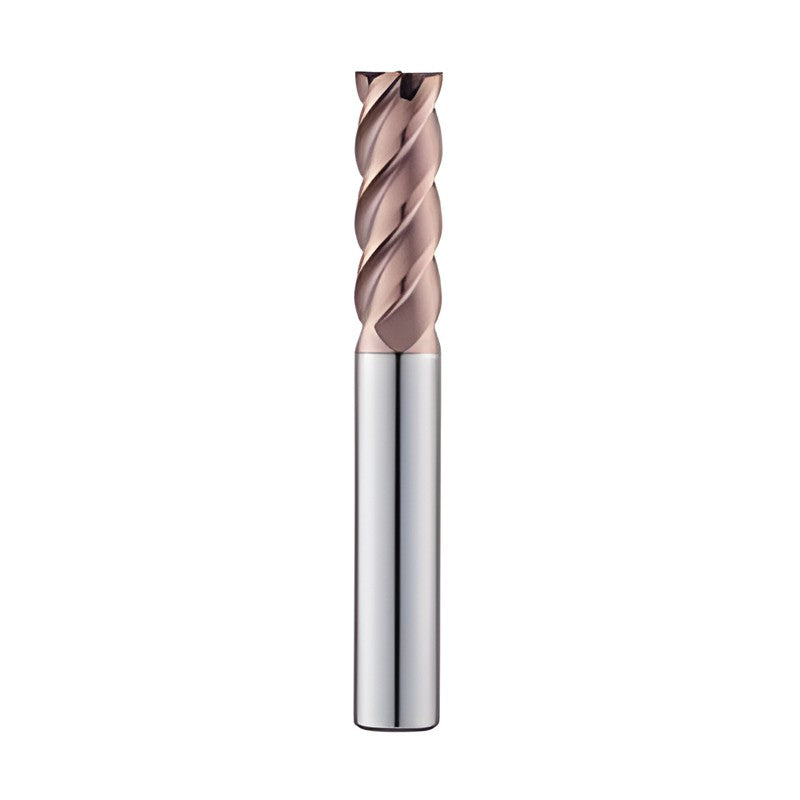

Korloy H-Star 4 Flute High Helix Flat End Mill ESE714

Korloy H-Star 4 Flute High Helix Flat End Mill ESE714

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 45°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 4
Coating AlTiN
Helix angle 45°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper 3
ESE714010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
ESE714010S4 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2.5 | L (mm): 40
ESE714012 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE714015 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE714015S4 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 40
ESE714020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
ESE714020S4 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 40
ESE714025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE714025S4 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 40
ESE714030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESE714030S4 ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 45
ESE714035 ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 45
ESE714040 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE714040S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESE714050 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE714060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE714060-15 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
ESE714060-15L ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
ESE714080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 60
ESE714080L ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 100
ESE714100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE714100-25 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 70
ESE714100-25L ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
ESE714120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE714120-30 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
ESE714120-30L ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 100
End MillsKorloy
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 4 Flute High Helix Flat End Mill ESE714

Brand Korloy·End Mills

Available part numbers (26)

ESE714010, ESE714010S4, ESE714012, ESE714015, ESE714015S4, ESE714020, ESE714020S4, ESE714025, ESE714025S4, ESE714030 + 16 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESE714010ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 40
ESE714010S4ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 2.5 | L (mm): 40
ESE714012ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 40
ESE714015ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 40
ESE714015S4ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 4 | L (mm): 40
ESE714020ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 40
ESE714020S4ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 5 | L (mm): 40
ESE714025ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 40
ESE714025S4ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 6 | L (mm): 40
ESE714030ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 45
ESE714030S4ØD (mm): 3 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 45
ESE714035ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 9 | L (mm): 45
ESE714040ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 45
ESE714040S4ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 45
ESE714050ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE714060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE714060-15ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
ESE714060-15LØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
ESE714080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 60
ESE714080LØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 19 | L (mm): 100
ESE714100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE714100-25ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 70
ESE714100-25LØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
ESE714120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE714120-30ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
ESE714120-30LØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 100
