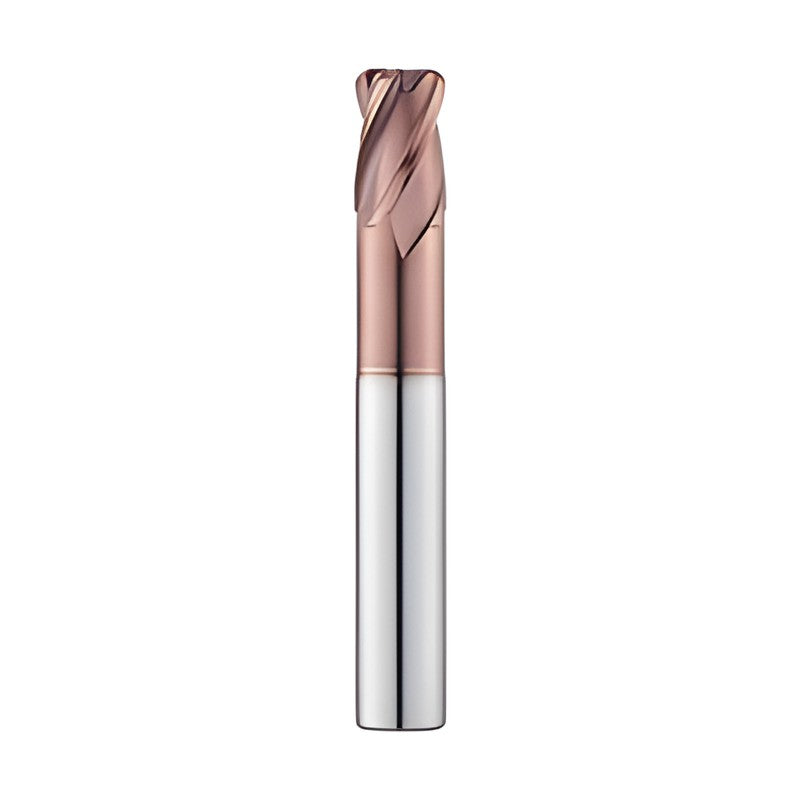

Korloy H-Star 4 Flute Neck Type Radius End Mill ESR704

Korloy H-Star 4 Flute Neck Type Radius End Mill ESR704

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 4
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESR7040100103S4 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 3 | L (mm): 50
ESR7040100104S4 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESR7040100106S4 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESR7040100203S4 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 3 | L (mm): 50
ESR7040100204S4 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESR7040100206S4 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESR7040100303S4 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 3 | L (mm): 50
ESR7040100304S4 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 50
ESR7040100306S4 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
ESR7040150104S4 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 4 | L (mm): 50
ESR7040150106S4 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 6 | L (mm): 50
ESR7040150204S4 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 4 | L (mm): 50
ESR7040150206S4 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 6 | L (mm): 50
ESR7040150304S4 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 4 | L (mm): 50
ESR7040150306S4 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 6 | L (mm): 50
ESR7040200106S4 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESR7040200108S4 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESR7040200206S4 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESR7040200208 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESR7040200208S4 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESR7040200210 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESR7040200212 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESR7040200306S4 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESR7040200308S4 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESR7040200506S4 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
ESR7040200508S4 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
ESR7040250106S4 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 3.5 | ℓ2 (mm): 6 | L (mm): 50
ESR7040300108 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 55
ESR7040300110 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 55
ESR7040300112 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 55
ESR7040300116 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESR7040300120 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESR7040300208 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 55
ESR7040300210 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 55
ESR7040300212 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 55
ESR7040300216 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESR7040300220 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESR7040300308 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 55
ESR7040300309 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 9 | L (mm): 55
ESR7040300310 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 55
ESR7040300312 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 55
ESR7040300316 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESR7040300320 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESR7040300508 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 55
ESR7040300509 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 9 | L (mm): 55
ESR7040300510 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 55
ESR7040300512 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 55
ESR7040300516 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESR7040300520 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESR7040301008 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 55
ESR7040301010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 55
ESR7040301012 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 55
ESR7040301016 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESR7040301020 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESR7040400110 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 55
ESR7040400112 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 55
ESR7040400116 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 55
ESR7040400120 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESR7040400125 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 60
ESR7040400210 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 55
ESR7040400212 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 55
ESR7040400216 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 55
ESR7040400220 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESR7040400225 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 60
ESR7040400310 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 55
ESR7040400312 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 55
ESR7040400316 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 55
ESR7040400320 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESR7040400325 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 60
ESR7040400510 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 55
ESR7040400512 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 55
ESR7040400516 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 55
ESR7040400520 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESR7040400525 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 60
ESR7040401010 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 55
ESR7040401012 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 55
ESR7040401016 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 55
ESR7040401020 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESR7040401025 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 25 | L (mm): 60
ESR7040600220 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040600320 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040600520 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040601020 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040601520 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040602020 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
ESR7040800225 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7040800325 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7040800525 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7040801025 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7040801525 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7040802025 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 60
ESR7041000232 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041000332 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041000532 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041001032 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041001532 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041002032 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 32 | L (mm): 70
ESR7041200338 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 80
ESR7041200538 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 80
ESR7041201038 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 80
ESR7041201538 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 80
ESR7041202038 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 38 | L (mm): 80
