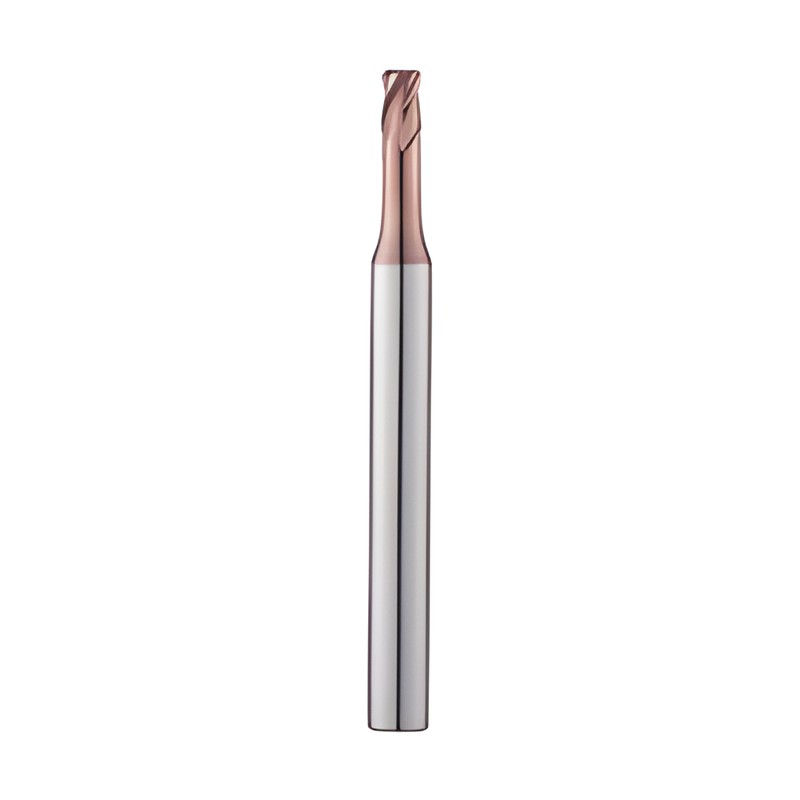

Korloy H-Star 4 Flute Rib Radius End Mill ESRR714

Korloy H-Star 4 Flute Rib Radius End Mill ESRR714

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 4
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø20: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESRR71400500502 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400500504 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400500506 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400500508 R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400501002 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400501004 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400501006 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400501008 R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400600502 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400600504 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400600506 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400600508 R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400601002 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400601004 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400601006 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400601008 R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400700502 R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400700504 R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400700506 R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400700508 R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400701002 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400701004 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400701006 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400701008 R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800202 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400800204 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400800206 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400800208 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800210 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400800212 R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71400800502 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400800504 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400800506 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400800508 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800510 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400800512 R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71400801002 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400801004 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400801006 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400801008 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400801010 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400801012 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000204 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401000206 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401000208 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401000210 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401000212 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000214 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401000216 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401000220 R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401000503 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401000504 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401000506 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401000508 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401000510 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401000512 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000514 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401000516 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401000520 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401001003 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401001004 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401001006 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401001008 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401001010 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401001012 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401001014 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401001016 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401001020 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401002003 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401002004 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401002006 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401002008 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401002010 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401002012 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401002014 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401002016 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401002020 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401003003 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401003004 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401003006 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401003008 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401003010 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401003012 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401003014 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401003016 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401003020 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401200204 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401200206 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401200208 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401200210 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401200212 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401200214 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401200216 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401200220 R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401200503 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401200504 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401200506 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401200508 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401200510 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401200512 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401200514 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401200516 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401200520 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401201003 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401201004 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401201006 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401201008 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401201010 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401201012 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401201014 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401201016 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401201020 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401202003 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401202004 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401202006 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401202008 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401202010 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401202012 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401202014 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401202016 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401202020 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401203003 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401203004 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401203006 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401203008 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401203010 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401203012 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401203016 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401203020 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500206 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401500208 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401500210 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401500212 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401500214 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401500216 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401500220 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500222 R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401500504 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401500506 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401500508 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401500510 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401500512 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401500514 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401500516 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401500520 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500522 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401500526 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRR71401501004 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401501006 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401501008 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401501010 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401501012 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401501014 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401501016 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401501020 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401501022 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401501026 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRR71401502004 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401502006 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401502008 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401502010 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401502012 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401502014 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401502016 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401502020 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401502022 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401502025 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71401503004 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401503006 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401503008 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401503010 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401503012 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401503014 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401503016 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401503020 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401503022 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401503025 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71401505004 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401505006 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401505008 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401505010 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401505012 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401505014 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401505016 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401505020 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401505022 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401505025 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000206 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402000208 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402000210 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402000212 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402000214 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402000216 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402000220 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402000225 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000230 R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402000506 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402000508 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402000510 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402000512 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402000514 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402000516 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402000520 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402000525 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000530 R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402001006 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402001008 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402001010 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402001012 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402001014 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402001016 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402001020 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402001022 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402001025 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402001030 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402002006 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402002008 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402002010 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402002012 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402002014 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402002016 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402002020 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402002022 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402002025 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402002030 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402003006 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402003008 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402003010 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402003012 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402003014 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402003016 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402003020 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402003022 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402003025 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402003030 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402005006 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402005008 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402005010 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402005012 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402005014 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402005016 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402005020 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402005022 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402005025 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402005030 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402501008 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402501010 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402501012 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402501014 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402501016 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402501020 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402501025 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402501030 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402502008 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402502010 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402502012 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402502014 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402502016 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402502020 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402502025 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402502030 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402503008 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402503010 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402503012 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402503014 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402503016 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402503020 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402503025 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402503030 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402505008 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402505010 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402505012 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402505014 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402505016 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402505020 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402505025 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402505030 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403001008 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403001010 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403001012 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403001014 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403001016 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403001020 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403001025 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403001030 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403001035 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403001040 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403001045 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403002008 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403002010 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403002012 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403002014 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403002016 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403002020 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403002025 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403002030 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403002035 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403002040 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403002045 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403003008 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403003010 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403003012 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403003014 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403003016 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403003020 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403003025 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403003030 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403003035 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403003040 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403003045 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403005008 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403005010 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403005012 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403005014 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403005016 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403005020 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403005025 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403005030 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403005035 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403005040 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403005045 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403005050 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRR71403010008 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403010010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403010012 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403010014 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403010016 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403010020 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403010025 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403010030 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403010035 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403010040 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403010045 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403010050 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404001010 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404001012 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404001013 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404001016 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404001020 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404001025 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404001030 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404001035 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404001040 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404001045 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404001050 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404002010 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404002012 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404002013 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404002016 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404002020 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404002025 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404002030 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404002035 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404002040 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404002045 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404002050 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404003010 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404003012 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404003013 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404003016 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404003020 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404003025 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404003030 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404003035 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404003040 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404003045 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404003050 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404005010 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404005012 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404005013 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404005016 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404005020 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404005025 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404005030 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404005035 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404005040 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404005045 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404005050 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404005055 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRR71404010010 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404010012 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404010013 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404010016 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404010020 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404010025 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404010030 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404010035 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404010040 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404010045 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404010050 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404010055 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRR71405001016 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405001030 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405001040 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405002016 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405002030 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405002040 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405003016 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405003030 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405003040 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405005016 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405005030 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405005040 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405005050 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRR71405005060 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRR71405010016 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405010030 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405010040 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405010050 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRR71405010060 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRR71405015015 R (mm): 1.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 15 | L (mm): 60
ESRR71405020015 R (mm): 2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 15 | L (mm): 60
ESRR71406001020 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406001040 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406001050 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406002020 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406002040 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406002050 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406003020 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406003030 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406003040 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406003050 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406005020 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406005030 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406005040 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406005050 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406005060 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 60 | L (mm): 110
ESRR71406010020 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406010030 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406010040 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406010050 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406010060 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 60 | L (mm): 110
ESRR71406015020 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406015040 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406015050 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406020020 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406020030 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406020040 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406020050 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71408001025 R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 25 | L (mm): 70
ESRR71408002022 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408002040 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408003022 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408003040 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408005022 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408005035 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 35 | L (mm): 100
ESRR71408005040 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408005050 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71408005060 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 60 | L (mm): 120
ESRR71408010022 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408010035 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 35 | L (mm): 100
ESRR71408010040 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408010050 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71408010060 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 60 | L (mm): 120
ESRR71408015022 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408015040 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408020022 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408020040 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408020050 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410001030 R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 30 | L (mm): 75
ESRR71410002024 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410002040 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410003024 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410003040 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410005024 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410005040 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410005050 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410005060 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 60 | L (mm): 120
ESRR71410010024 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410010040 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410010050 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410010060 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 60 | L (mm): 120
ESRR71410015024 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410015040 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410020024 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410020040 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410020050 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410025024 R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71412002032 R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 32 | L (mm): 80
ESRR71412003026 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412003045 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 45 | L (mm): 110
ESRR71412005026 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412005040 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412005060 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 60 | L (mm): 130
ESRR71412010026 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412010040 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412010060 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 60 | L (mm): 130
ESRR71412015026 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412020026 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412020040 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412030026 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71416005035 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
ESRR71416005050 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 20 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
ESRR71416010035 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
ESRR71416010050 R (mm): 1 | ØD (mm): 16 | Ød (mm): 20 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
ESRR71420005040 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
ESRR71420005055 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
ESRR71420010040 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
ESRR71420010055 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
End MillsKorloy
499 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 4 Flute Rib Radius End Mill ESRR714

Brand Korloy·End Mills

Available part numbers (499)

ESRR71400500502, ESRR71400500504, ESRR71400500506, ESRR71400500508, ESRR71400501002, ESRR71400501004, ESRR71400501006, ESRR71400501008, ESRR71400600502, ESRR71400600504 + 489 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESRR71400500502R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400500504R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400500506R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400500508R (mm): 0.05 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400501002R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400501004R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400501006R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400501008R (mm): 0.1 | ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400600502R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400600504R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400600506R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400600508R (mm): 0.05 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400601002R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400601004R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400601006R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400601008R (mm): 0.1 | ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400700502R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400700504R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400700506R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400700508R (mm): 0.05 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400701002R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400701004R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400701006R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400701008R (mm): 0.1 | ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800202R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400800204R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400800206R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400800208R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800210R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400800212R (mm): 0.02 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71400800502R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400800504R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400800506R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400800508R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400800510R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400800512R (mm): 0.05 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71400801002R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 45
ESRR71400801004R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 45
ESRR71400801006R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 45
ESRR71400801008R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 45
ESRR71400801010R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 45
ESRR71400801012R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000204R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401000206R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401000208R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401000210R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401000212R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000214R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401000216R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401000220R (mm): 0.02 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401000503R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401000504R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401000506R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401000508R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401000510R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401000512R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401000514R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401000516R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401000520R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401001003R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401001004R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401001006R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401001008R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401001010R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401001012R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401001014R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401001016R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401001020R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401002003R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401002004R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401002006R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401002008R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401002010R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401002012R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401002014R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401002016R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401002020R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401003003R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401003004R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401003006R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401003008R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401003010R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401003012R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401003014R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401003016R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401003020R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401200204R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401200206R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401200208R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401200210R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401200212R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401200214R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401200216R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401200220R (mm): 0.02 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401200503R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401200504R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401200506R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401200508R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401200510R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401200512R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401200514R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401200516R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401200520R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401201003R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401201004R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401201006R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401201008R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401201010R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401201012R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401201014R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401201016R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401201020R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401202003R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401202004R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401202006R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401202008R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401202010R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401202012R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401202014R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401202016R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401202020R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401203003R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 3 | L (mm): 45
ESRR71401203004R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401203006R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401203008R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401203010R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401203012R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401203016R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401203020R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500206R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401500208R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401500210R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401500212R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401500214R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401500216R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401500220R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500222R (mm): 0.02 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401500504R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401500506R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401500508R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401500510R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401500512R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401500514R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401500516R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401500520R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401500522R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401500526R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRR71401501004R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401501006R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401501008R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401501010R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401501012R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401501014R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401501016R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401501020R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401501022R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401501026R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 26 | L (mm): 60
ESRR71401502004R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401502006R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401502008R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401502010R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401502012R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401502014R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401502016R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401502020R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401502022R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401502025R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71401503004R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401503006R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401503008R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401503010R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401503012R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401503014R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401503016R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401503020R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401503022R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401503025R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71401505004R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRR71401505006R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRR71401505008R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71401505010R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71401505012R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71401505014R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71401505016R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71401505020R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71401505022R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 22 | L (mm): 60
ESRR71401505025R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000206R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402000208R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402000210R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402000212R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402000214R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402000216R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402000220R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402000225R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000230R (mm): 0.02 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402000506R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402000508R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402000510R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402000512R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402000514R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402000516R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402000520R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402000525R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402000530R (mm): 0.05 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402001006R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402001008R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402001010R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402001012R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402001014R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402001016R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402001020R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402001022R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402001025R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402001030R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402002006R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402002008R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402002010R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402002012R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402002014R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402002016R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402002020R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402002022R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402002025R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402002030R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402003006R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402003008R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402003010R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402003012R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402003014R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402003016R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402003020R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402003022R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402003025R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402003030R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402005006R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 45
ESRR71402005008R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402005010R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402005012R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402005014R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402005016R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402005020R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402005022R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRR71402005025R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402005030R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402501008R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402501010R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402501012R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402501014R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402501016R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402501020R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402501025R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402501030R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402502008R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402502010R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402502012R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402502014R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402502016R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402502020R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402502025R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402502030R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402503008R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402503010R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402503012R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402503014R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402503016R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402503020R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402503025R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402503030R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71402505008R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 8 | L (mm): 45
ESRR71402505010R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRR71402505012R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRR71402505014R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 14 | L (mm): 50
ESRR71402505016R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRR71402505020R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRR71402505025R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRR71402505030R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403001008R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403001010R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403001012R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403001014R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403001016R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403001020R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403001025R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403001030R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403001035R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403001040R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403001045R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403002008R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403002010R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403002012R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403002014R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403002016R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403002020R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403002025R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403002030R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403002035R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403002040R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403002045R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403003008R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403003010R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403003012R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403003014R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403003016R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403003020R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403003025R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403003030R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403003035R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403003040R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403003045R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403005008R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403005010R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403005012R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403005014R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403005016R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403005020R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403005025R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403005030R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403005035R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403005040R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403005045R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403005050R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRR71403010008R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRR71403010010R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRR71403010012R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRR71403010014R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
ESRR71403010016R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRR71403010020R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRR71403010025R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRR71403010030R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRR71403010035R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRR71403010040R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRR71403010045R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRR71403010050R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404001010R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404001012R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404001013R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404001016R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404001020R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404001025R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404001030R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404001035R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404001040R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404001045R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404001050R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404002010R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404002012R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404002013R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404002016R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404002020R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404002025R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404002030R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404002035R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404002040R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404002045R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404002050R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404003010R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404003012R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404003013R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404003016R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404003020R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404003025R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404003030R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404003035R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404003040R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404003045R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404003050R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404005010R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404005012R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404005013R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404005016R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404005020R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404005025R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404005030R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404005035R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404005040R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404005045R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404005050R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404005055R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRR71404010010R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRR71404010012R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRR71404010013R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 13 | L (mm): 55
ESRR71404010016R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRR71404010020R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRR71404010025R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRR71404010030R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRR71404010035R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 35 | L (mm): 75
ESRR71404010040R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRR71404010045R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRR71404010050R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRR71404010055R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 55 | L (mm): 100
ESRR71405001016R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405001030R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405001040R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405002016R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405002030R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405002040R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405003016R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405003030R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405003040R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405005016R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405005030R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405005040R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405005050R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRR71405005060R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRR71405010016R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRR71405010030R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRR71405010040R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRR71405010050R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRR71405010060R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRR71405015015R (mm): 1.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 15 | L (mm): 60
ESRR71405020015R (mm): 2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 15 | L (mm): 60
ESRR71406001020R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406001040R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406001050R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406002020R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406002040R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406002050R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406003020R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406003030R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406003040R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406003050R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406005020R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406005030R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406005040R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406005050R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406005060R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 60 | L (mm): 110
ESRR71406010020R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406010030R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406010040R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406010050R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406010060R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 60 | L (mm): 110
ESRR71406015020R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406015040R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406015050R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71406020020R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 20 | L (mm): 60
ESRR71406020030R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 30 | L (mm): 70
ESRR71406020040R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 40 | L (mm): 80
ESRR71406020050R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 7 | ℓ2 (mm): 50 | L (mm): 100
ESRR71408001025R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 25 | L (mm): 70
ESRR71408002022R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408002040R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408003022R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408003040R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408005022R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408005035R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 35 | L (mm): 100
ESRR71408005040R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408005050R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71408005060R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 60 | L (mm): 120
ESRR71408010022R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408010035R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 35 | L (mm): 100
ESRR71408010040R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408010050R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71408010060R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 60 | L (mm): 120
ESRR71408015022R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408015040R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408020022R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 22 | L (mm): 65
ESRR71408020040R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 40 | L (mm): 100
ESRR71408020050R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 9 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410001030R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 30 | L (mm): 75
ESRR71410002024R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410002040R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410003024R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410003040R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410005024R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410005040R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410005050R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410005060R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 60 | L (mm): 120
ESRR71410010024R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410010040R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410010050R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410010060R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 60 | L (mm): 120
ESRR71410015024R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410015040R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410020024R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71410020040R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 40 | L (mm): 100
ESRR71410020050R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 50 | L (mm): 120
ESRR71410025024R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 11 | ℓ2 (mm): 24 | L (mm): 70
ESRR71412002032R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 32 | L (mm): 80
ESRR71412003026R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412003045R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 45 | L (mm): 110
ESRR71412005026R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412005040R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412005060R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 60 | L (mm): 130
ESRR71412010026R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412010040R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412010060R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 60 | L (mm): 130
ESRR71412015026R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412020026R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71412020040R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 40 | L (mm): 110
ESRR71412030026R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 13 | ℓ2 (mm): 26 | L (mm): 80
ESRR71416005035R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
ESRR71416005050R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 20 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
ESRR71416010035R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
ESRR71416010050R (mm): 1 | ØD (mm): 16 | Ød (mm): 20 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
ESRR71420005040R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
ESRR71420005055R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
ESRR71420010040R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
ESRR71420010055R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
