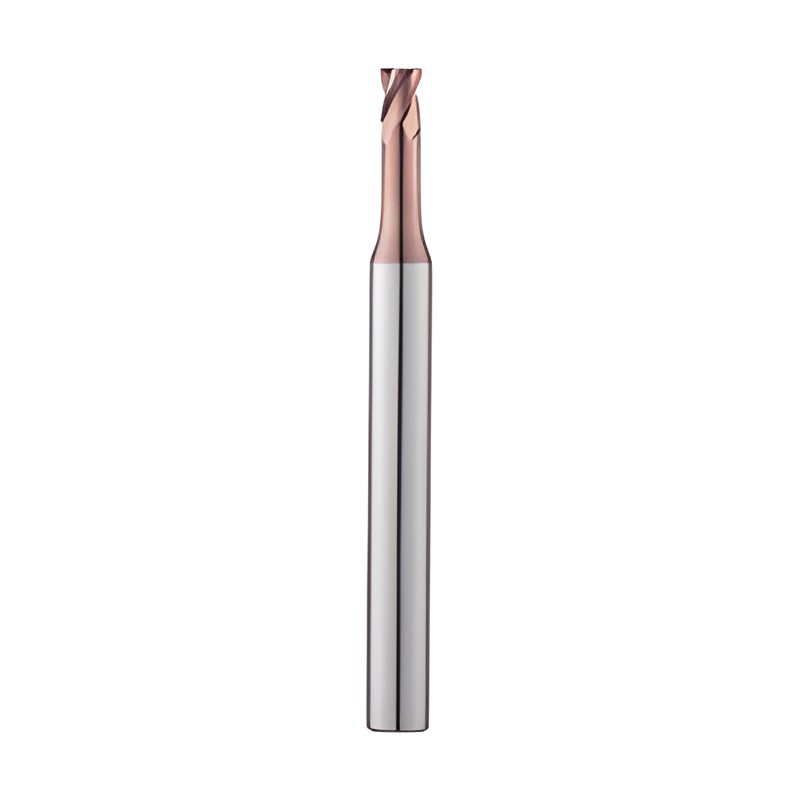

Korloy H-Star 4 Flute Rib Square End Mill ESRE714

Korloy H-Star 4 Flute Rib Square End Mill ESRE714

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 4
Coating AlTiN
Helix angle 30°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESRE71400501 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
ESRE71400502 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
ESRE71400503 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRE71400504 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400505 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRE71400506 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400508 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400510 ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400601 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRE71400602 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRE71400603 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRE71400604 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400605 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRE71400606 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400608 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400610 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400612 ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71400702 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRE71400704 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400706 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400708 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400710 ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400801 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 40
ESRE71400802 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 40
ESRE71400803 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 40
ESRE71400804 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 40
ESRE71400805 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 40
ESRE71400806 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 40
ESRE71400808 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 40
ESRE71400810 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400812 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71400816 ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401002 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 45
ESRE71401003 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRE71401004 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401006 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401008 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401010 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401012 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401014 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401016 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401018 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401020 ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401204 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401206 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401208 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401210 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401212 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401216 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401218 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401220 ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401406 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401408 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401410 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401412 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401414 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401416 ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401504 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401506 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401508 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401510 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401512 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401516 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401518 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401520 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401525 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRE71401530 ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71401606 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401608 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401610 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401612 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401614 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401616 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401618 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401620 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401625 ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 25 | L (mm): 70
ESRE71401806 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401808 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401810 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401812 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401816 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401820 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401825 ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 25 | L (mm): 70
ESRE71402004 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71402006 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71402008 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71402010 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRE71402012 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRE71402014 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRE71402016 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRE71402018 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 50
ESRE71402020 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRE71402022 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRE71402025 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRE71402030 ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRE71402510 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71402512 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71402516 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71402520 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRE71402525 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRE71402530 ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403006 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 45
ESRE71403008 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRE71403010 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71403012 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71403016 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRE71403020 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRE71403025 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRE71403030 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403035 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRE71403040 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRE71403045 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRE71403050 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRE71403060 ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
ESRE71403512 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71403516 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 16 | L (mm): 55
ESRE71403520 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71403525 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71403530 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403535 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 35 | L (mm): 75
ESRE71403540 ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71404006 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 6 | L (mm): 50
ESRE71404008 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRE71404010 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71404012 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71404016 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRE71404020 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRE71404025 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRE71404030 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRE71404040 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRE71404045 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRE71404050 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRE71404060 ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 60 | L (mm): 110
ESRE71404512 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71404516 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 55
ESRE71404520 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71404525 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71404530 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71404540 ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71405016 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRE71405020 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71405025 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71405030 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71405040 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71405050 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71405060 ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRE71406020 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71406030 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 75
ESRE71406040 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRE71406050 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 90
ESRE71406060 ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRE71408025 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 65
ESRE71408040 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 40 | L (mm): 100
ESRE71408050 ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 50 | L (mm): 110
ESRE71410030 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 70
ESRE71410050 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 50 | L (mm): 100
ESRE71410060 ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 60 | L (mm): 120
ESRE71412040 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 40 | L (mm): 80
ESRE71412060 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 60 | L (mm): 110
ESRE71412070 ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 70 | L (mm): 130
End MillsKorloy
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 4 Flute Rib Square End Mill ESRE714

Brand Korloy·End Mills

Available part numbers (160)

ESRE71400501, ESRE71400502, ESRE71400503, ESRE71400504, ESRE71400505, ESRE71400506, ESRE71400508, ESRE71400510, ESRE71400601, ESRE71400602 + 150 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESRE71400501ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 1 | L (mm): 40
ESRE71400502ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 2 | L (mm): 40
ESRE71400503ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 3 | L (mm): 45
ESRE71400504ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400505ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 5 | L (mm): 45
ESRE71400506ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400508ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400510ØD (mm): 0.5 | Ød (mm): 4 | ℓ1 (mm): 0.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400601ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 1 | L (mm): 45
ESRE71400602ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 2 | L (mm): 45
ESRE71400603ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 3 | L (mm): 45
ESRE71400604ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400605ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 5 | L (mm): 45
ESRE71400606ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400608ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400610ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400612ØD (mm): 0.6 | Ød (mm): 4 | ℓ1 (mm): 0.6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71400702ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 2 | L (mm): 45
ESRE71400704ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 4 | L (mm): 45
ESRE71400706ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 6 | L (mm): 45
ESRE71400708ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 8 | L (mm): 45
ESRE71400710ØD (mm): 0.7 | Ød (mm): 4 | ℓ1 (mm): 0.7 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400801ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 1 | L (mm): 40
ESRE71400802ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 2 | L (mm): 40
ESRE71400803ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 3 | L (mm): 40
ESRE71400804ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 4 | L (mm): 40
ESRE71400805ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 5 | L (mm): 40
ESRE71400806ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 6 | L (mm): 40
ESRE71400808ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 8 | L (mm): 40
ESRE71400810ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71400812ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71400816ØD (mm): 0.8 | Ød (mm): 4 | ℓ1 (mm): 0.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401002ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 2 | L (mm): 45
ESRE71401003ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 3 | L (mm): 45
ESRE71401004ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401006ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401008ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401010ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401012ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401014ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401016ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401018ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401020ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401204ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401206ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401208ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401210ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401212ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401216ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401218ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401220ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.2 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401406ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401408ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401410ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401412ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401414ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401416ØD (mm): 1.4 | Ød (mm): 4 | ℓ1 (mm): 1.4 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401504ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 45
ESRE71401506ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401508ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401510ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401512ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401516ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401518ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401520ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401525ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 25 | L (mm): 60
ESRE71401530ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71401606ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401608ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401610ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401612ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401614ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 14 | L (mm): 50
ESRE71401616ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401618ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 18 | L (mm): 60
ESRE71401620ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401625ØD (mm): 1.6 | Ød (mm): 4 | ℓ1 (mm): 1.6 | ℓ2 (mm): 25 | L (mm): 70
ESRE71401806ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 45
ESRE71401808ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 45
ESRE71401810ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
ESRE71401812ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
ESRE71401816ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
ESRE71401820ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 60
ESRE71401825ØD (mm): 1.8 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 25 | L (mm): 70
ESRE71402004ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 4 | L (mm): 45
ESRE71402006ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 45
ESRE71402008ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 8 | L (mm): 45
ESRE71402010ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 10 | L (mm): 50
ESRE71402012ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 12 | L (mm): 50
ESRE71402014ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 14 | L (mm): 50
ESRE71402016ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 16 | L (mm): 50
ESRE71402018ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 18 | L (mm): 50
ESRE71402020ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 20 | L (mm): 50
ESRE71402022ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 22 | L (mm): 60
ESRE71402025ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 25 | L (mm): 60
ESRE71402030ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 2 | ℓ2 (mm): 30 | L (mm): 70
ESRE71402510ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 10 | L (mm): 50
ESRE71402512ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71402516ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 16 | L (mm): 50
ESRE71402520ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 20 | L (mm): 50
ESRE71402525ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 25 | L (mm): 60
ESRE71402530ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 2.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403006ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 45
ESRE71403008ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 45
ESRE71403010ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
ESRE71403012ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
ESRE71403016ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 55
ESRE71403020ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 60
ESRE71403025ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 25 | L (mm): 65
ESRE71403030ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403035ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 35 | L (mm): 75
ESRE71403040ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 40 | L (mm): 80
ESRE71403045ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 45 | L (mm): 90
ESRE71403050ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 50 | L (mm): 100
ESRE71403060ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 60 | L (mm): 110
ESRE71403512ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71403516ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 16 | L (mm): 55
ESRE71403520ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71403525ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71403530ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71403535ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 35 | L (mm): 75
ESRE71403540ØD (mm): 3.5 | Ød (mm): 6 | ℓ1 (mm): 3.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71404006ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 6 | L (mm): 50
ESRE71404008ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
ESRE71404010ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
ESRE71404012ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
ESRE71404016ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 55
ESRE71404020ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 60
ESRE71404025ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 25 | L (mm): 65
ESRE71404030ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
ESRE71404040ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 40 | L (mm): 80
ESRE71404045ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 45 | L (mm): 90
ESRE71404050ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 50 | L (mm): 100
ESRE71404060ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 60 | L (mm): 110
ESRE71404512ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
ESRE71404516ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 55
ESRE71404520ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71404525ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71404530ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71404540ØD (mm): 4.5 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71405016ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 16 | L (mm): 60
ESRE71405020ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 20 | L (mm): 60
ESRE71405025ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 25 | L (mm): 65
ESRE71405030ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 30 | L (mm): 70
ESRE71405040ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 40 | L (mm): 80
ESRE71405050ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 50 | L (mm): 100
ESRE71405060ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 5 | ℓ2 (mm): 60 | L (mm): 110
ESRE71406020ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
ESRE71406030ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 75
ESRE71406040ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
ESRE71406050ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 90
ESRE71406060ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 60 | L (mm): 100
ESRE71408025ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 65
ESRE71408040ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 40 | L (mm): 100
ESRE71408050ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 50 | L (mm): 110
ESRE71410030ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 70
ESRE71410050ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 50 | L (mm): 100
ESRE71410060ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 60 | L (mm): 120
ESRE71412040ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 40 | L (mm): 80
ESRE71412060ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 60 | L (mm): 110
ESRE71412070ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 70 | L (mm): 130

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
