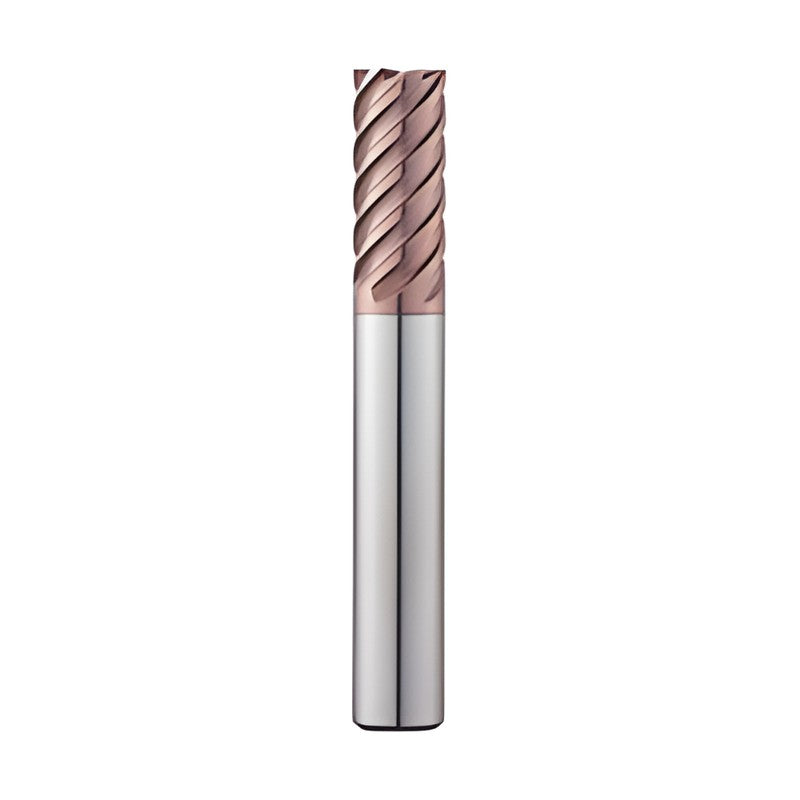

Korloy H-Star 6 Flute High Helix Flat End Mill ESE716

Korloy H-Star 6 Flute High Helix Flat End Mill ESE716

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 50°
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 6
Coating AlTiN
Helix angle 50°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø20: 0~-0.015mm
Shank tolerance h5
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESE716060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE716080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
ESE716100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE716120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE716160 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 90
ESE716200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 44 | L (mm): 100
End MillsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 6 Flute High Helix Flat End Mill ESE716

Brand Korloy·End Mills

Available part numbers (6)

ESE716060, ESE716080, ESE716100, ESE716120, ESE716160, ESE716200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESE716060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 50
ESE716080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
ESE716100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
ESE716120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
ESE716160ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 90
ESE716200ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 44 | L (mm): 100
