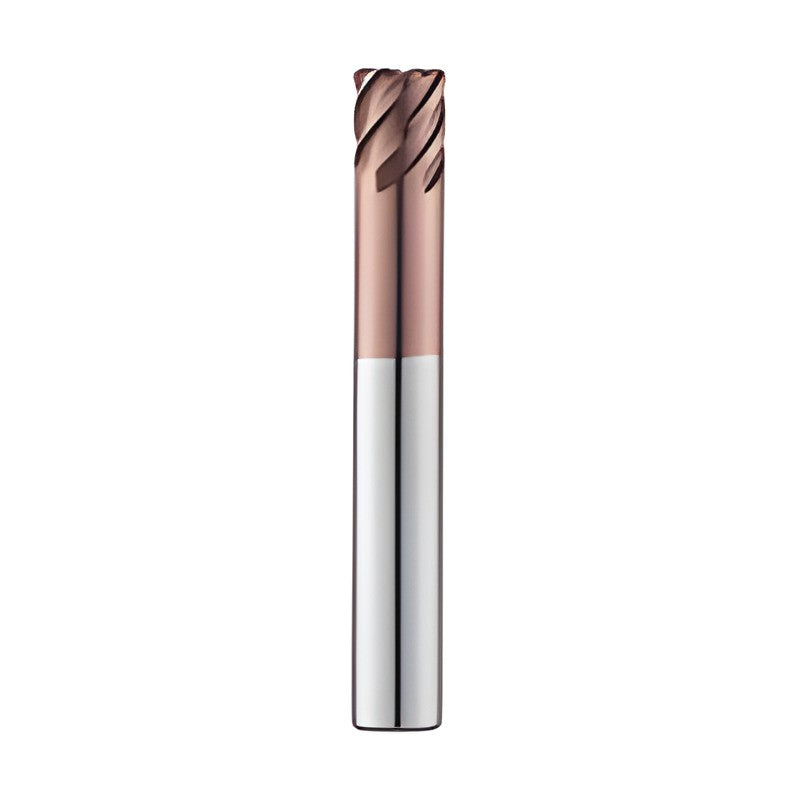

Korloy H-Star 6 Flute Neck Type Radius End Mill ESR706

Korloy H-Star 6 Flute Neck Type Radius End Mill ESR706

Solid carbide end mill of the H-Star series for high speed and high hardness machining (HRC50~63).

Key features

  • Ultra-fine WC + Co 9% high hardness substrate
  • AlTiN coating for wear and frictional heat resistance
  • Edge treatment for chipping resistance in hardened steel
  • Helix angle 45°
  • Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
  • h5 shank tolerance

Specifications

Series line H-Star End Mill
Flutes 6
Coating AlTiN
Helix angle 45°
ØD tolerance ~Ø6: 0~-0.012mm; Ø8~Ø12: 0~-0.015mm
Shank tolerance h5
Radius tolerance ±0.01 (Ø6 or Under); ±0.015 (Above Ø6)
Workpiece (excellent) Hardened steel SKD61~HRC55, Hardened steel SKD11 HRC55~63
Workpiece (good) Pre-hardened steel HRC30~50, Copper
ESR7060600314 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 50
ESR7060600514 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 50
ESR7060800524 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 24 | L (mm): 60
ESR7060801024 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 24 | L (mm): 60
ESR7061000530 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | L (mm): 70
ESR7061001030 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | L (mm): 70
ESR7061200530 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
ESR7061201030 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
End MillsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy H-Star 6 Flute Neck Type Radius End Mill ESR706

Brand Korloy·End Mills

Available part numbers (8)

ESR7060600314, ESR7060600514, ESR7060800524, ESR7060801024, ESR7061000530, ESR7061001030, ESR7061200530, ESR7061201030

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESR7060600314R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 50
ESR7060600514R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 50
ESR7060800524R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 24 | L (mm): 60
ESR7060801024R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 24 | L (mm): 60
ESR7061000530R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | L (mm): 70
ESR7061001030R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 30 | L (mm): 70
ESR7061200530R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
ESR7061201030R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 75
