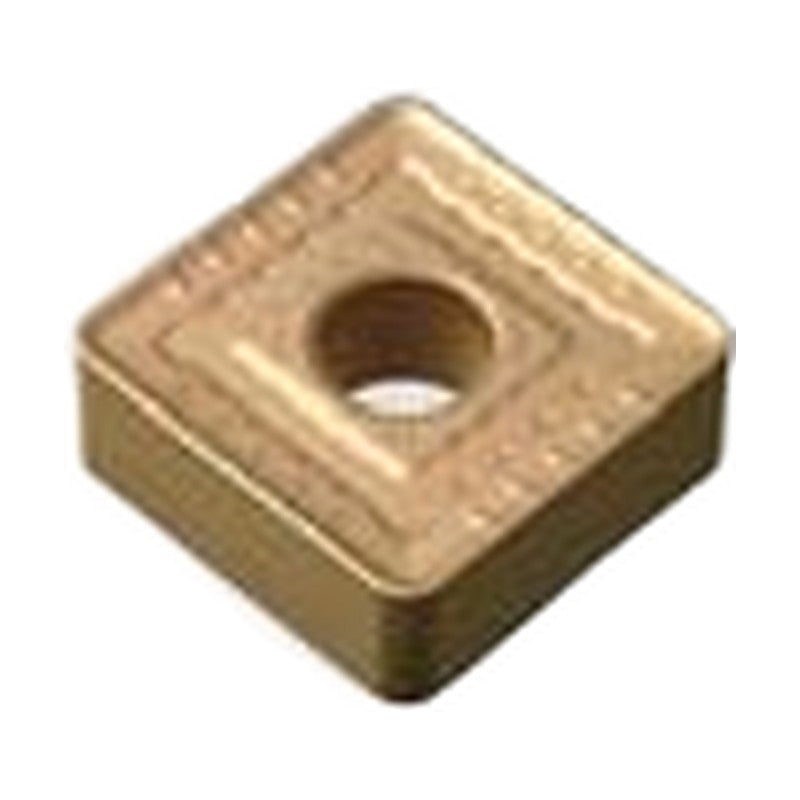

Korloy Heavy Duty Turning Insert SNMM (HG / HV / HX)

Korloy Heavy Duty Turning Insert SNMM (HG / HV / HX)

Square negative insert for heavy duty external and profile turning of railway axles and wheels.

Key features

  • Heavy duty external and profile turning
  • HG, HV and HX chip breakers
  • For new and repaired railway wheels and axles

Specifications

Application Railway components
Coating Coated
SNMM190612-HG NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190612-HG NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190612-HG NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HG NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HG NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HG NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HG NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HG NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HG NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HG NC6315 L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HG NC3215P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HG NC3225P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3225P | Stock: Not marked
SNMM250932-HG NC6315 L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC6315 | Stock: Not marked
SNMM250932-HG NC3215P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3215P | Stock: Not marked
SNMM250932-HG NC3225P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HV NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HV NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HV NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HV NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HV NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HV NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3225P | Stock: Not marked
SNMM250724-HV NC6315 L (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM250724-HV NC3215P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM250724-HV NC3225P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HV NC6315 L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HV NC3215P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HV NC3225P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HX NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HX NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HX NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HX NC6315 L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HX NC3215P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HX NC3225P L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HX NC6315 L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HX NC3215P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HX NC3225P L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC3225P | Stock: Not marked
Turning InsertsKorloy
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Heavy Duty Turning Insert SNMM (HG / HV / HX)

Brand Korloy·Turning Inserts

Available part numbers (36)

SNMM190612-HG NC6315, SNMM190612-HG NC3215P, SNMM190612-HG NC3225P, SNMM190616-HG NC6315, SNMM190616-HG NC3215P, SNMM190616-HG NC3225P, SNMM190624-HG NC6315, SNMM190624-HG NC3215P, SNMM190624-HG NC3225P, SNMM250924-HG NC6315 + 26 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMM190612-HG NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190612-HG NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190612-HG NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.30 ~ 0.90 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HG NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HG NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HG NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.35 ~ 0.95 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HG NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HG NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HG NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.40 ~ 1.00 | Depth of cut ap (mm): 3.0 ~ 10.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HG NC6315L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HG NC3215PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HG NC3225PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.40 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3225P | Stock: Not marked
SNMM250932-HG NC6315L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC6315 | Stock: Not marked
SNMM250932-HG NC3215PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3215P | Stock: Not marked
SNMM250932-HG NC3225PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 3.2 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.20 | Depth of cut ap (mm): 3.5 ~ 13.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HV NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HV NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HV NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.45 ~ 1.05 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HV NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HV NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HV NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.50 ~ 1.10 | Depth of cut ap (mm): 4.0 ~ 11.0 | Grade: NC3225P | Stock: Not marked
SNMM250724-HV NC6315L (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM250724-HV NC3215PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM250724-HV NC3225PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HV NC6315L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HV NC3215PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HV NC3225PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.50 ~ 1.40 | Depth of cut ap (mm): 4.0 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM190616-HX NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM190616-HX NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM190616-HX NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.55 ~ 1.10 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM190624-HX NC6315L (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC6315 | Stock: Not marked
SNMM190624-HX NC3215PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3215P | Stock: Not marked
SNMM190624-HX NC3225PL (mm): 19.05 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 2.4 | D1 (mm): 7.93 | Feed fn (mm/rev): 0.60 ~ 1.20 | Depth of cut ap (mm): 4.5 ~ 15.0 | Grade: NC3225P | Stock: Not marked
SNMM250924-HX NC6315L (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC6315 | Stock: Not marked
SNMM250924-HX NC3215PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC3215P | Stock: Not marked
SNMM250924-HX NC3225PL (mm): 25.4 | IC (mm): 25.4 | S (mm): 7.94 | RE (mm): 2.4 | D1 (mm): 9.12 | Feed fn (mm/rev): 0.60 ~ 1.50 | Depth of cut ap (mm): 4.5 ~ 18.0 | Grade: NC3225P | Stock: Not marked
