• Korloy HFM Milling Insert LPMT / LPMW / LPEW
1 1

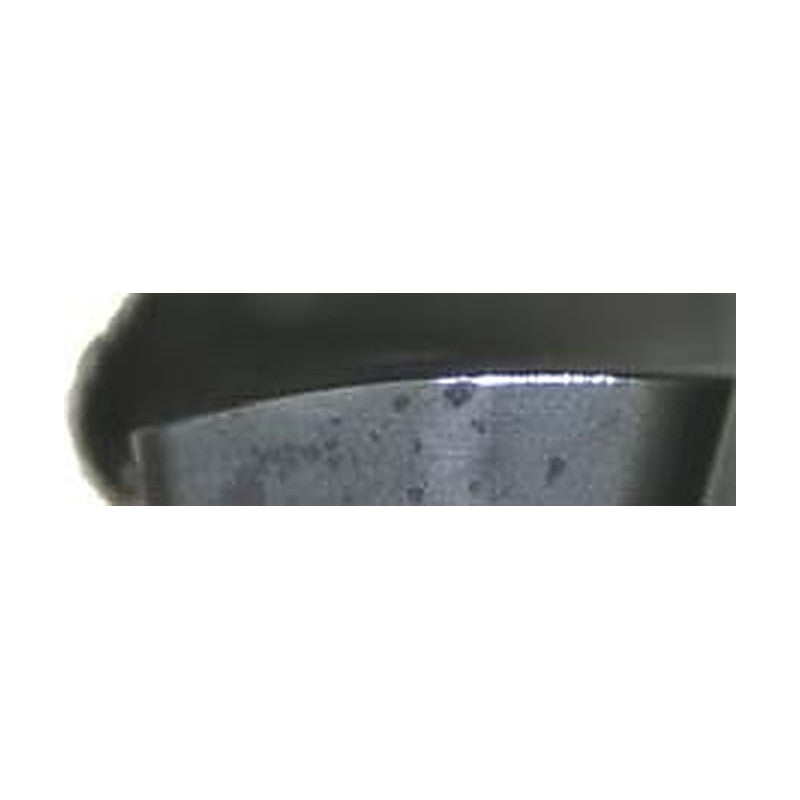

Korloy HFM Milling Insert LPMT / LPMW / LPEW

Korloy HFM Milling Insert LPMT / LPMW / LPEW

Indexable LPMT / LPMW / LPEW milling insert used on the HFM milling tool series.

LPMT040210R-MF PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Chip breaker: MF | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMT040220R-MF PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Chip breaker: MF | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMW040210R PC2505 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPMW040210R PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMW040220R PC2505 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPMW040220R PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPEW040210R PC2505 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPEW040210R PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPEW040220R PC2505 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPEW040220R PC2510 l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
Milling InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy HFM Milling Insert LPMT / LPMW / LPEW

Brand Korloy·Milling Inserts

Available part numbers (10)

LPMT040210R-MF PC2510, LPMT040220R-MF PC2510, LPMW040210R PC2505, LPMW040210R PC2510, LPMW040220R PC2505, LPMW040220R PC2510, LPEW040210R PC2505, LPEW040210R PC2510, LPEW040220R PC2505, LPEW040220R PC2510

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPMT040210R-MF PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Chip breaker: MF | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMT040220R-MF PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Chip breaker: MF | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMW040210R PC2505l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPMW040210R PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPMW040220R PC2505l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPMW040220R PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPEW040210R PC2505l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPEW040210R PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 1.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
LPEW040220R PC2505l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2505 | Grade type: Coated carbide | Stock: Yes
LPEW040220R PC2510l (mm): 6.4 | d (mm): 4.2 | t (mm): 2.6 | r (mm): 2.0 | d1 (mm): 2.0 | Grade: PC2510 | Grade type: Coated carbide | Stock: Yes
