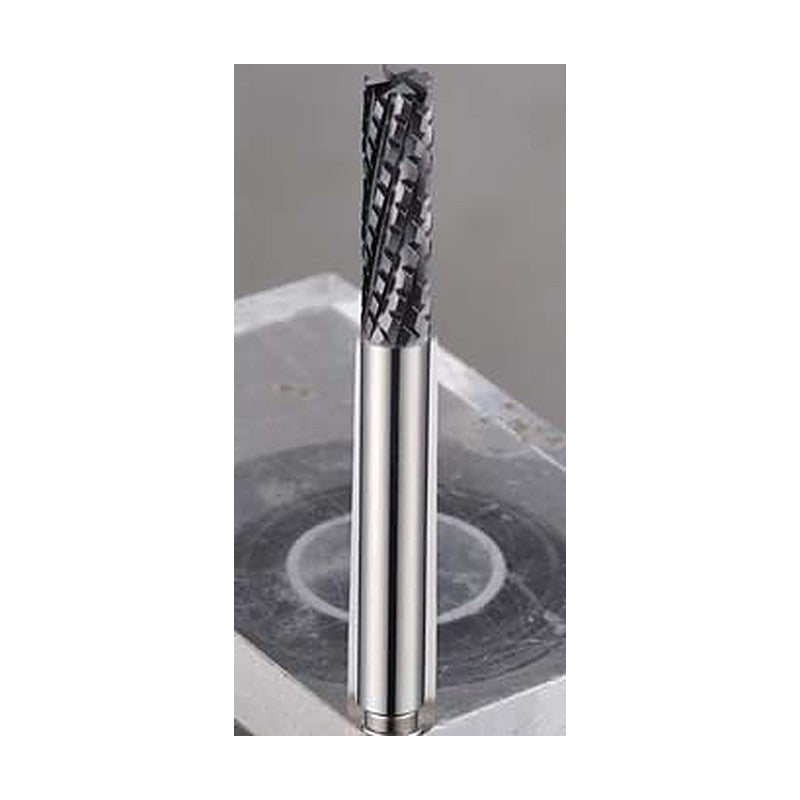

Korloy High-Performance Router End Mill CCHR4000/6000

Korloy High-Performance Router End Mill CCHR4000/6000

High-performance router end mill for machining composite materials (CFRP/GFRP) with nano-crystal diamond coating.

Key features

  • Multi flute nick shape for high efficiency machining
  • For contouring, grooving and roughing
  • 15° helix angle

Specifications

Helix angle 15°
Substrate grade ND2100
Shank tolerance h5
CCHR4060-065 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 18 | L (mm): 65 | Fig.: 1
CCHR4080-075 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 24 | L (mm): 75 | Fig.: 1
CCHR6100-085 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 85 | Fig.: 2
CCHR6120-100 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 36 | L (mm): 100 | Fig.: 2
CCHR402500 Unit: inch | D (inch): 1/4 (0.250) | Shank d (inch): 0.25 | Flute length (inch): 0.75 | L (inch): 2.5 | Fig.: 1
CCHR402500L Unit: inch | D (inch): 1/4 (0.250) | Shank d (inch): 0.25 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 1
CCHR603750 Unit: inch | D (inch): 3/8 (0.375) | Shank d (inch): 0.375 | Flute length (inch): 1 | L (inch): 3.25 | Fig.: 2
CCHR603750L Unit: inch | D (inch): 3/8 (0.375) | Shank d (inch): 0.375 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 2
CCHR605000 Unit: inch | D (inch): 1/2 (0.500) | Shank d (inch): 0.5 | Flute length (inch): 1 | L (inch): 3.25 | Fig.: 2
CCHR605000L Unit: inch | D (inch): 1/2 (0.500) | Shank d (inch): 0.5 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 2
End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy High-Performance Router End Mill CCHR4000/6000

Brand Korloy·End Mills

Available part numbers (10)

CCHR4060-065, CCHR4080-075, CCHR6100-085, CCHR6120-100, CCHR402500, CCHR402500L, CCHR603750, CCHR603750L, CCHR605000, CCHR605000L

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCHR4060-065D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 18 | L (mm): 65 | Fig.: 1
CCHR4080-075D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 24 | L (mm): 75 | Fig.: 1
CCHR6100-085D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 85 | Fig.: 2
CCHR6120-100D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 36 | L (mm): 100 | Fig.: 2
CCHR402500Unit: inch | D (inch): 1/4 (0.250) | Shank d (inch): 0.25 | Flute length (inch): 0.75 | L (inch): 2.5 | Fig.: 1
CCHR402500LUnit: inch | D (inch): 1/4 (0.250) | Shank d (inch): 0.25 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 1
CCHR603750Unit: inch | D (inch): 3/8 (0.375) | Shank d (inch): 0.375 | Flute length (inch): 1 | L (inch): 3.25 | Fig.: 2
CCHR603750LUnit: inch | D (inch): 3/8 (0.375) | Shank d (inch): 0.375 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 2
CCHR605000Unit: inch | D (inch): 1/2 (0.500) | Shank d (inch): 0.5 | Flute length (inch): 1 | L (inch): 3.25 | Fig.: 2
CCHR605000LUnit: inch | D (inch): 1/2 (0.500) | Shank d (inch): 0.5 | Flute length (inch): 1.5 | L (inch): 4 | Fig.: 2
