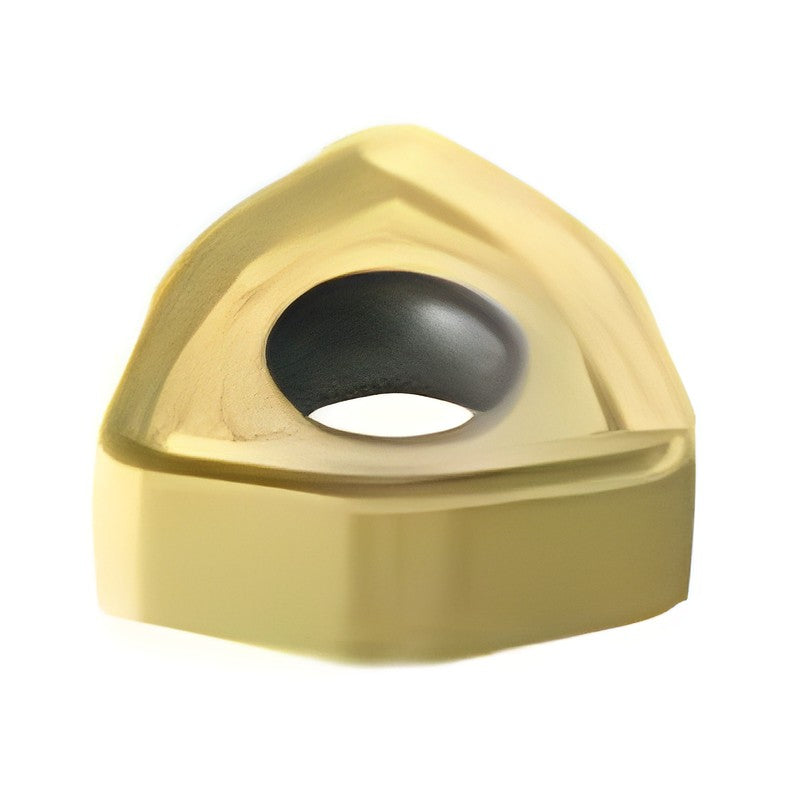

Korloy HRM Double High Feed Milling Insert WNMX

Korloy HRM Double High Feed Milling Insert WNMX

HRM Double high-feed milling system with double-sided inserts providing 6 cutting edges.

Key features

  • 6 cutting edges per double-sided insert
  • High rake edge and chip breaker reduce cutting load
  • Inner coolant system
  • 3-surface constrained screw-on clamping
WNMX060312ZNN-MM PC5300 Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5300 | Stock: Yes
WNMX060312ZNN-MM PC5400 Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5400 | Stock: Yes
WNMX060312ZNN-MM H01 Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: H01 | Stock: Yes
WNMX09T316ZNN-MM PC3600 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC3600 | Stock: Yes
WNMX09T316ZNN-MM PC5300 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5300 | Stock: Yes
WNMX09T316ZNN-MM PC5400 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5400 | Stock: Yes
WNMX09T316ZNN-MM H01 Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: H01 | Stock: Yes
WNMX130520ZNN-MM PC3600 Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC3600 | Stock: Yes
WNMX130520ZNN-MM PC5300 Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5300 | Stock: Yes
WNMX130520ZNN-MM PC5400 Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5400 | Stock: Yes
WNMX130520ZNN-MM H01 Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: H01 | Stock: Yes
WNMX160720ZNN-MM PC5300 Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5300 | Stock: Yes
WNMX160720ZNN-MM PC5400 Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5400 | Stock: Yes
WNMX160720ZNN-MM H01 Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: H01 | Stock: Yes
WNMX060312ZNN-MF PC5300 Chip breaker: MF | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5300 | Stock: Yes
WNMX060312ZNN-MF PC5400 Chip breaker: MF | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5400 | Stock: Yes
WNMX09T316ZNN-MF PC5300 Chip breaker: MF | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5300 | Stock: Yes
WNMX09T316ZNN-MF PC5400 Chip breaker: MF | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5400 | Stock: Yes
WNMX130520ZNN-MF PC5300 Chip breaker: MF | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5300 | Stock: Yes
WNMX130520ZNN-MF PC5400 Chip breaker: MF | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5400 | Stock: Yes
WNMX160720ZNN-MF PC5300 Chip breaker: MF | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5300 | Stock: Yes
WNMX160720ZNN-MF PC5400 Chip breaker: MF | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5400 | Stock: Yes
Milling InsertsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy HRM Double High Feed Milling Insert WNMX

Brand Korloy·Milling Inserts

Available part numbers (22)

WNMX060312ZNN-MM PC5300, WNMX060312ZNN-MM PC5400, WNMX060312ZNN-MM H01, WNMX09T316ZNN-MM PC3600, WNMX09T316ZNN-MM PC5300, WNMX09T316ZNN-MM PC5400, WNMX09T316ZNN-MM H01, WNMX130520ZNN-MM PC3600, WNMX130520ZNN-MM PC5300, WNMX130520ZNN-MM PC5400 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WNMX060312ZNN-MM PC5300Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5300 | Stock: Yes
WNMX060312ZNN-MM PC5400Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5400 | Stock: Yes
WNMX060312ZNN-MM H01Chip breaker: MM | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: H01 | Stock: Yes
WNMX09T316ZNN-MM PC3600Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC3600 | Stock: Yes
WNMX09T316ZNN-MM PC5300Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5300 | Stock: Yes
WNMX09T316ZNN-MM PC5400Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5400 | Stock: Yes
WNMX09T316ZNN-MM H01Chip breaker: MM | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: H01 | Stock: Yes
WNMX130520ZNN-MM PC3600Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC3600 | Stock: Yes
WNMX130520ZNN-MM PC5300Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5300 | Stock: Yes
WNMX130520ZNN-MM PC5400Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5400 | Stock: Yes
WNMX130520ZNN-MM H01Chip breaker: MM | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: H01 | Stock: Yes
WNMX160720ZNN-MM PC5300Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5300 | Stock: Yes
WNMX160720ZNN-MM PC5400Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5400 | Stock: Yes
WNMX160720ZNN-MM H01Chip breaker: MM | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: H01 | Stock: Yes
WNMX060312ZNN-MF PC5300Chip breaker: MF | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5300 | Stock: Yes
WNMX060312ZNN-MF PC5400Chip breaker: MF | d (mm): 6.35 | t (mm): 3.18 | r (mm): 1.2 | d1 (mm): 2.86 | f (mm): 1.2 | Grade: PC5400 | Stock: Yes
WNMX09T316ZNN-MF PC5300Chip breaker: MF | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5300 | Stock: Yes
WNMX09T316ZNN-MF PC5400Chip breaker: MF | d (mm): 9.525 | t (mm): 3.97 | r (mm): 1.6 | d1 (mm): 3.6 | f (mm): 1.7 | Grade: PC5400 | Stock: Yes
WNMX130520ZNN-MF PC5300Chip breaker: MF | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5300 | Stock: Yes
WNMX130520ZNN-MF PC5400Chip breaker: MF | d (mm): 12.7 | t (mm): 5.56 | r (mm): 2.0 | d1 (mm): 4.7 | f (mm): 2.5 | Grade: PC5400 | Stock: Yes
WNMX160720ZNN-MF PC5300Chip breaker: MF | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5300 | Stock: Yes
WNMX160720ZNN-MF PC5400Chip breaker: MF | d (mm): 16.0 | t (mm): 7.0 | r (mm): 2.0 | d1 (mm): 5.8 | f (mm): 3.0 | Grade: PC5400 | Stock: Yes
