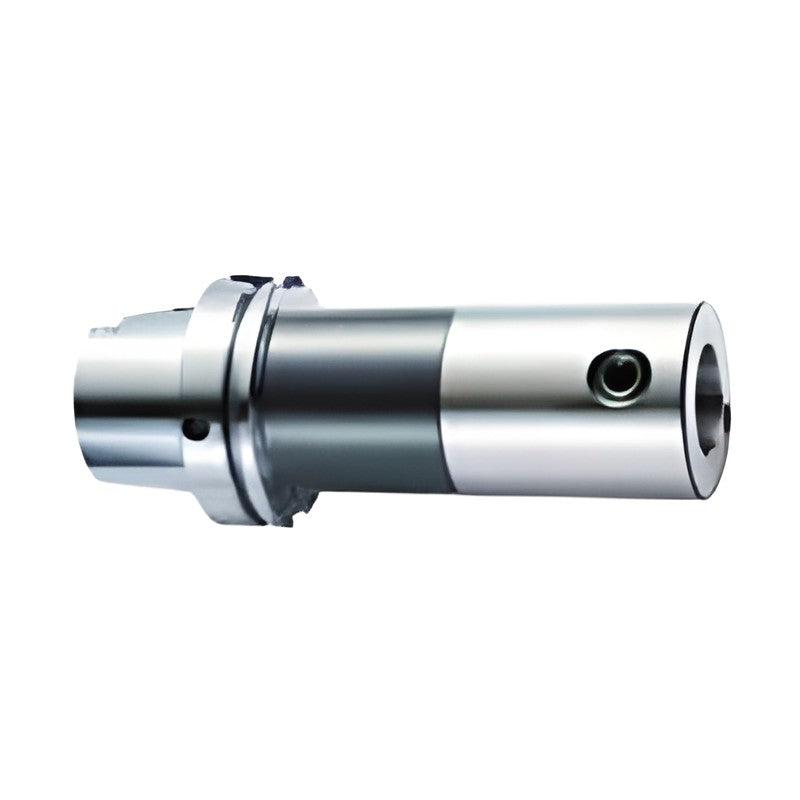

Korloy HSK63A Modular Arbor HSK-MD

Korloy HSK63A Modular Arbor HSK-MD

HSK63A basic holder with MD modular connection for boring heads, extensions and reducers.

Key features

  • Modular MD connection
  • Coolant tube available as option
HSK63A-MD19F-60 Taper: HSK63A | Modular size: MD19F | C (mm): 19 | D (mm): 11 | L (mm): 60 | L1 (mm): 34 | L2 (mm): 6.5 | H (mm): 15.5 | Thread M: M5
HSK63A-MD25F-60 Taper: HSK63A | Modular size: MD25F | C (mm): 25 | D (mm): 14 | L (mm): 60 | L1 (mm): 31 | L2 (mm): 8 | H (mm): 18.5 | Thread M: M6
HSK63A-MD32F-65 Taper: HSK63A | Modular size: MD32F | C (mm): 32 | D (mm): 18 | L (mm): 65 | L1 (mm): 31 | L2 (mm): 11 | H (mm): 23.5 | Thread M: M8
HSK63A-MD40F-70 Taper: HSK63A | Modular size: MD40F | C (mm): 40 | D (mm): 22 | L (mm): 70 | L1 (mm): 41 | L2 (mm): 13 | H (mm): 29 | Thread M: M10
HSK63A-MD50F-85 Taper: HSK63A | Modular size: MD50F | C (mm): 50 | D (mm): 28 | L (mm): 85 | L1 (mm): 58 | L2 (mm): 17 | H (mm): 36 | Thread M: M12
HSK63A-MD63F-95 Taper: HSK63A | Modular size: MD63F | C (mm): 63 | D (mm): 36 | L (mm): 95 | L1 (mm): 69 | L2 (mm): 22 | H (mm): 54 | Thread M: M16
Modular ArborsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy HSK63A Modular Arbor HSK-MD

Brand Korloy·Modular Arbors

Available part numbers (6)

HSK63A-MD19F-60, HSK63A-MD25F-60, HSK63A-MD32F-65, HSK63A-MD40F-70, HSK63A-MD50F-85, HSK63A-MD63F-95

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-MD19F-60Taper: HSK63A | Modular size: MD19F | C (mm): 19 | D (mm): 11 | L (mm): 60 | L1 (mm): 34 | L2 (mm): 6.5 | H (mm): 15.5 | Thread M: M5
HSK63A-MD25F-60Taper: HSK63A | Modular size: MD25F | C (mm): 25 | D (mm): 14 | L (mm): 60 | L1 (mm): 31 | L2 (mm): 8 | H (mm): 18.5 | Thread M: M6
HSK63A-MD32F-65Taper: HSK63A | Modular size: MD32F | C (mm): 32 | D (mm): 18 | L (mm): 65 | L1 (mm): 31 | L2 (mm): 11 | H (mm): 23.5 | Thread M: M8
HSK63A-MD40F-70Taper: HSK63A | Modular size: MD40F | C (mm): 40 | D (mm): 22 | L (mm): 70 | L1 (mm): 41 | L2 (mm): 13 | H (mm): 29 | Thread M: M10
HSK63A-MD50F-85Taper: HSK63A | Modular size: MD50F | C (mm): 50 | D (mm): 28 | L (mm): 85 | L1 (mm): 58 | L2 (mm): 17 | H (mm): 36 | Thread M: M12
HSK63A-MD63F-95Taper: HSK63A | Modular size: MD63F | C (mm): 63 | D (mm): 36 | L (mm): 95 | L1 (mm): 69 | L2 (mm): 22 | H (mm): 54 | Thread M: M16
